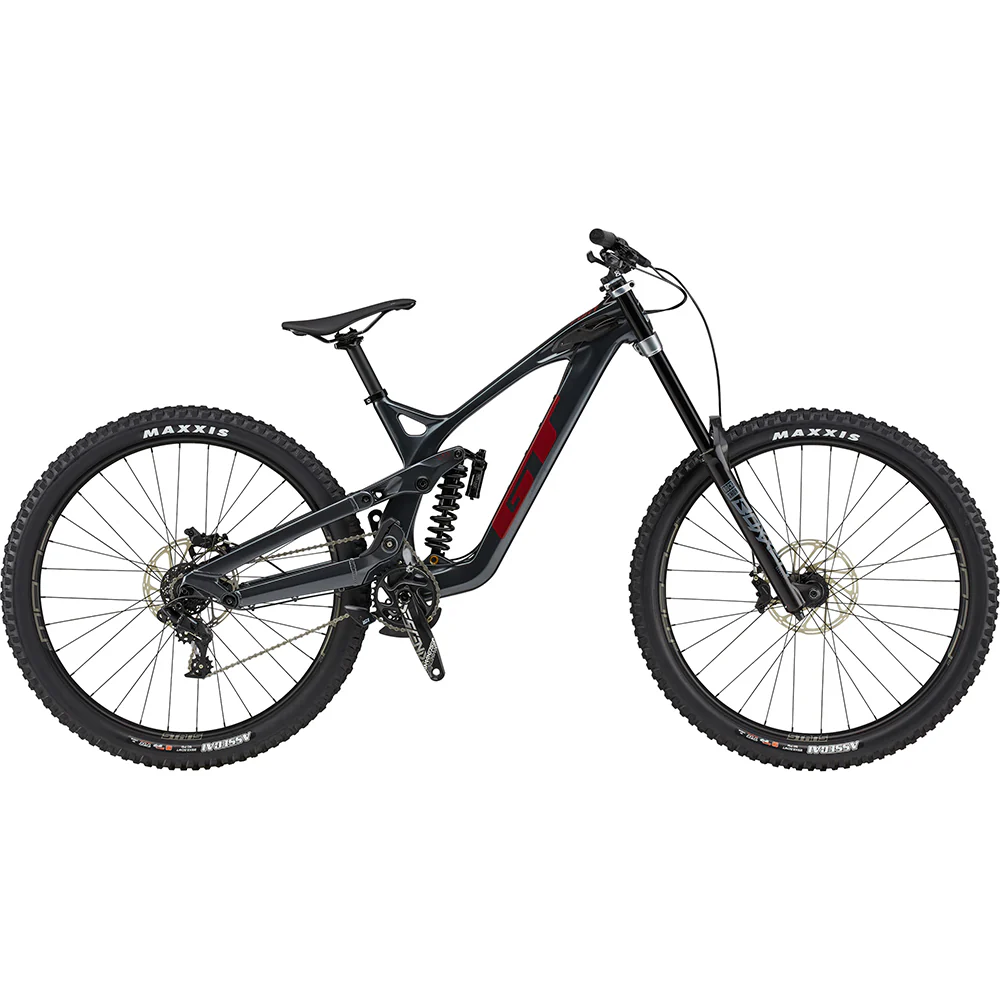

GT FURY 2019 - 2022 FRAME PARTS

SPECIFICATIONS

• Rear Travel - 27.5 in : 200 mm, 29 in : 190 mm
• Head Tube - 1.5 in with Fury Specific Cups
• Headset - UPR: 1-1 / 8 in (41.1 mm OD), LWR: 1-1 / 8 in (41.1 mm OD)
• Bottom Bracket: Type / Width - BSA/83mm
• Front Derailleur - N/A
• Seat Post: Dia./Binder - 31.6mm / 34.9mm
• Min. Seat Post Insert - 100 mm
• Tire Size x Max. Width - 27.5 in x 2.6 in / 29 in x 2.5 in
• Max. Fork Length - 27.5 in : 595 mm, 29 in : 600 mm
• Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 225 mm x 75 mm / 22.2 mm x 8mm
• Sag - 27.5 in : 17.1 mm, 29 in : 17.5 mm
• Chain Guide - Chainstay Integrated Idler with ISCG 05
• Rear Brake Mount / Type - Post Mount / 203 mm Shimano, 200 mm SRAM
• Rear Axle: Type / Length - Fury Specific TA / 148 x 12 mm
• Max. Weight Limit: Total - 138kg
