GT eFORCE 2020 - 2023 FRAME PARTS

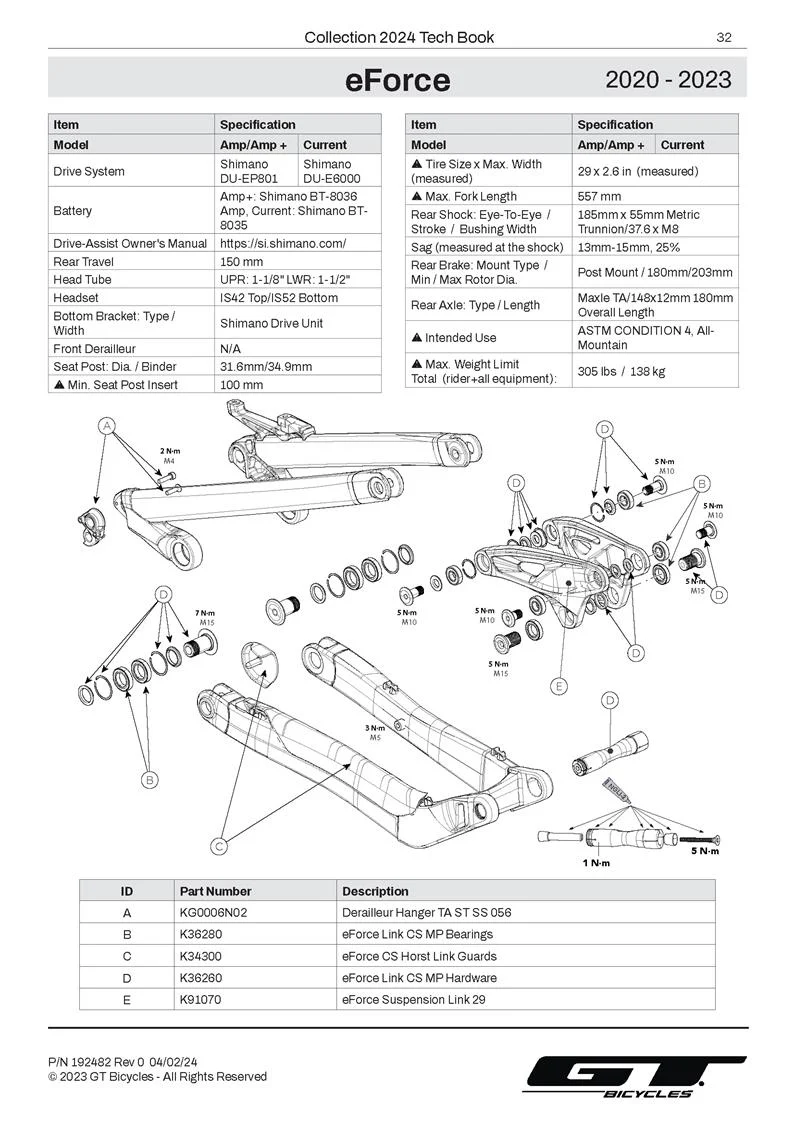

SPECIFICATIONS

• Drive System - Shimano

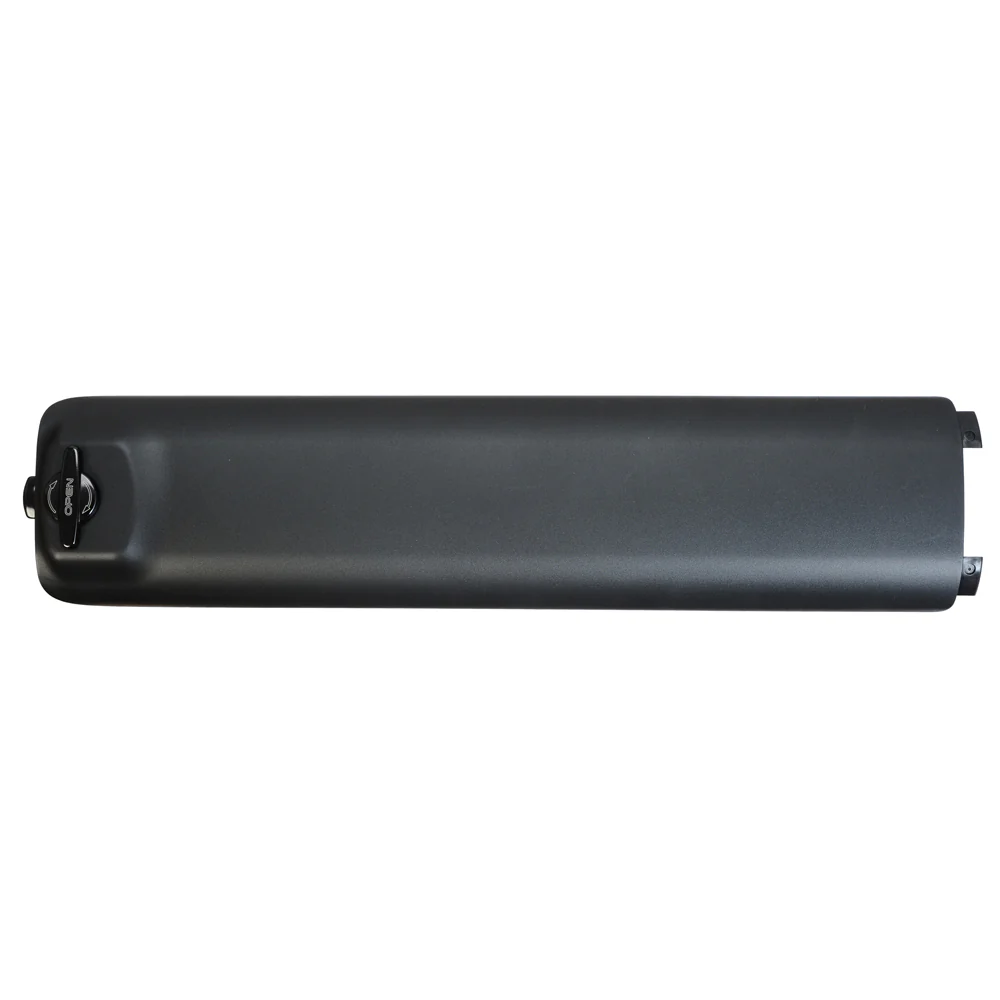

• Battery - Amp+: Shimano BT-8036, Amp, Current: BT-8035
• Rear Travel - 150 mm
• Head Tube - UPR: 1-1/8” LWR: 1-1/2”
• Headset - IS42 Top/IS52 Bottom
• Bottom Bracket: Type / Width - Shimano Drive Unit
• Front Derailleur - N/A
• Seat Post: Dia./Binder - 31.6mm / 34.9mm
• Min. Seat Post Insert - 100 mm
• Tire Size x Max. Width - 29 in x 2.6 in
• Max. Fork Length - 557 mm
• Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 185 mm x 55 mm / Metric Trunnion/37.6 x M8
• Sag - 13mm-15mm, 25%
• Rear Brake Mount / Type - Post Mount / 180mm / 203mm
• Rear Axle: Type / Length - Maxle TA / 148x12mm / 188mm L
• Max. Weight Limit: Total - 138kg
