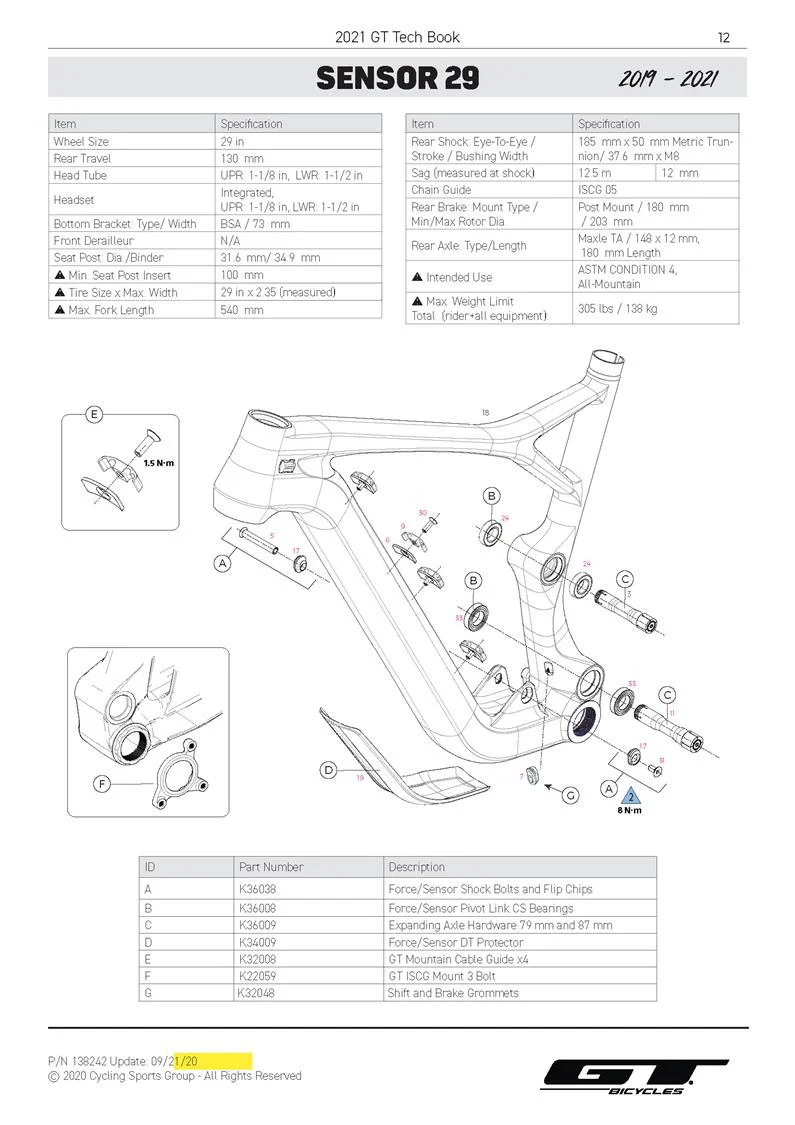

GT SENSOR 29 2019 - 2023 FRAME PARTS

SPECIFICATIONS

• Rear Travel - 130 mm
• Head Tube - UPR: 1-1/8” LWR: 1-1/2”
• Headset - Integrated, UPR: 1-1/8 in, LWR: 1-1/2 in
• Bottom Bracket: Type / Width - BSA / 73mm
• Front Derailleur - N/A
• Seat Post: Dia./Binder - 31.6mm / 34.9mm
• Min. Seat Post Insert - 100 mm
• Tire Size x Max. Width - 29 in x 2.35 in
• Max. Fork Length - 540 mm
• Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 185 mm x 50 mm / Metric Trunnion / 37.6mm x M8
• Sag - 12.5mm
• Chain Guide - ISCG 05
• Rear Brake Mount / Type - Post Mount / 180mm / 203mm
• Rear Axle: Type / Length - Maxle TA / 148x12mm / 180mm L
• Max. Weight Limit: Total - 138kg
