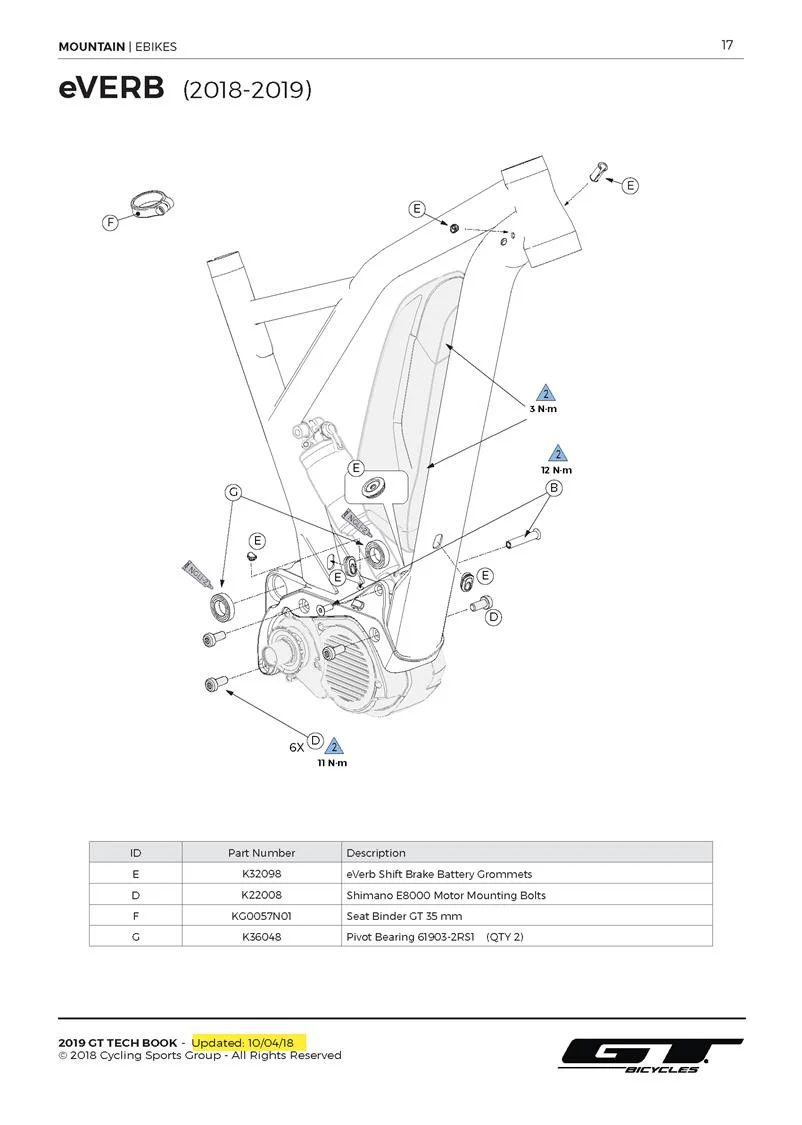

GT eVERB 2018 - 2020 FRAME PARTS

SPECIFICATIONS

• Drive System - Shimano
• Battery - Shimano BT-8010
• Rear Travel - 120 mm
• Head Tube - UPR: 1-1/8” LWR: 1-1/2”
• Headset - Semi Integrated, 1-1/8 in - 1-1/2 in
• Bottom Bracket: Type / Width - Shimano Drive Unit
• Front Derailleur - N/A
• Seat Post: Dia./Binder - 31.6mm / 34.9mm
• Min. Seat Post Insert - 75 mm
• Tire Size x Max. Width - 27.5 in x 2.8 in
• Max. Fork Length - 541 mm
• Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 190 mm x 50 mm / UPR: 40 mm x 8 mm, LWR: 30 mm x 8 mm
• Sag - 30%
• Rear Brake Mount / Type - Post Mount / 160mm / 180mm
• Rear Axle: Type / Length - Maxle TA / 148x12mm
• Max. Weight Limit: Total - 138kg
