GT FORCE CARBON 27.5 2019 - 2022 FRAME PARTS

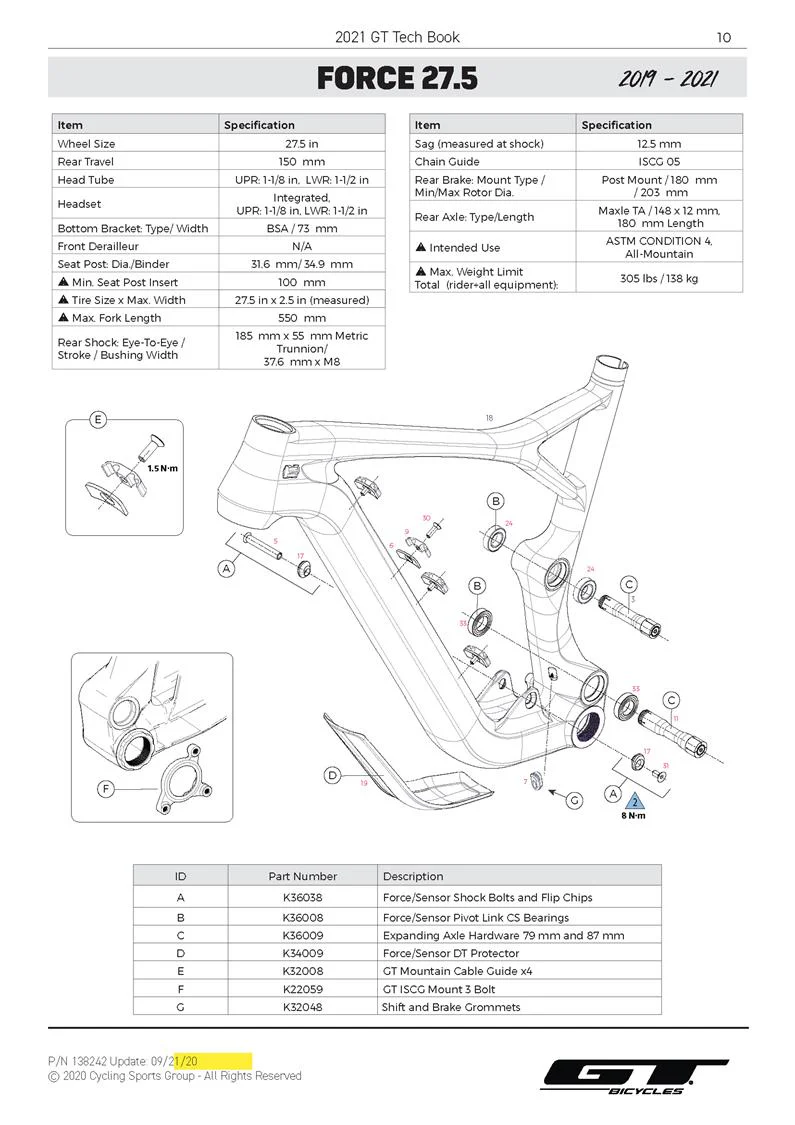

SPECIFICATIONS

• Rear Travel - 150 mm
• Head Tube - UPR: 1-1/8” LWR: 1-1/2”
• Headset - Integrated, 1-1/8” - 1-1/2”
• Bottom Bracket: Type / Width - BSA / 73mm
• Front Derailleur - N/A
• Seat Post: Dia./Binder - 31.6mm / 34.9mm
• Min. Seat Post Insert - 100 mm
• Tire Size x Max. Width - 27.5 in x 2.5 in
• Max. Fork Length - 550 mm
• Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 185 mm x 55 mm / Metric Trunnion 37.6 mm x M8
• Sag - 12.5mm
• Chain Guide - ISCG 05
• Rear Brake Mount / Type - Post Mount / 180mm / 203mm
• Rear Axle: Type / Length - Maxle TA / 148x12mm / 180mm L
• Max. Weight Limit: Total - 138kg
