Note: As the White Industries catalogue is diverse, we don't stock every variant or colour. However, we place regular airfreight orders. If an item is in stock at White Industries, we can usually have it here within a week. Even if it's not in stock, they can often assemble it for us, and we can have it within three weeks at most. Feel free to get in touch if you're after something specific!

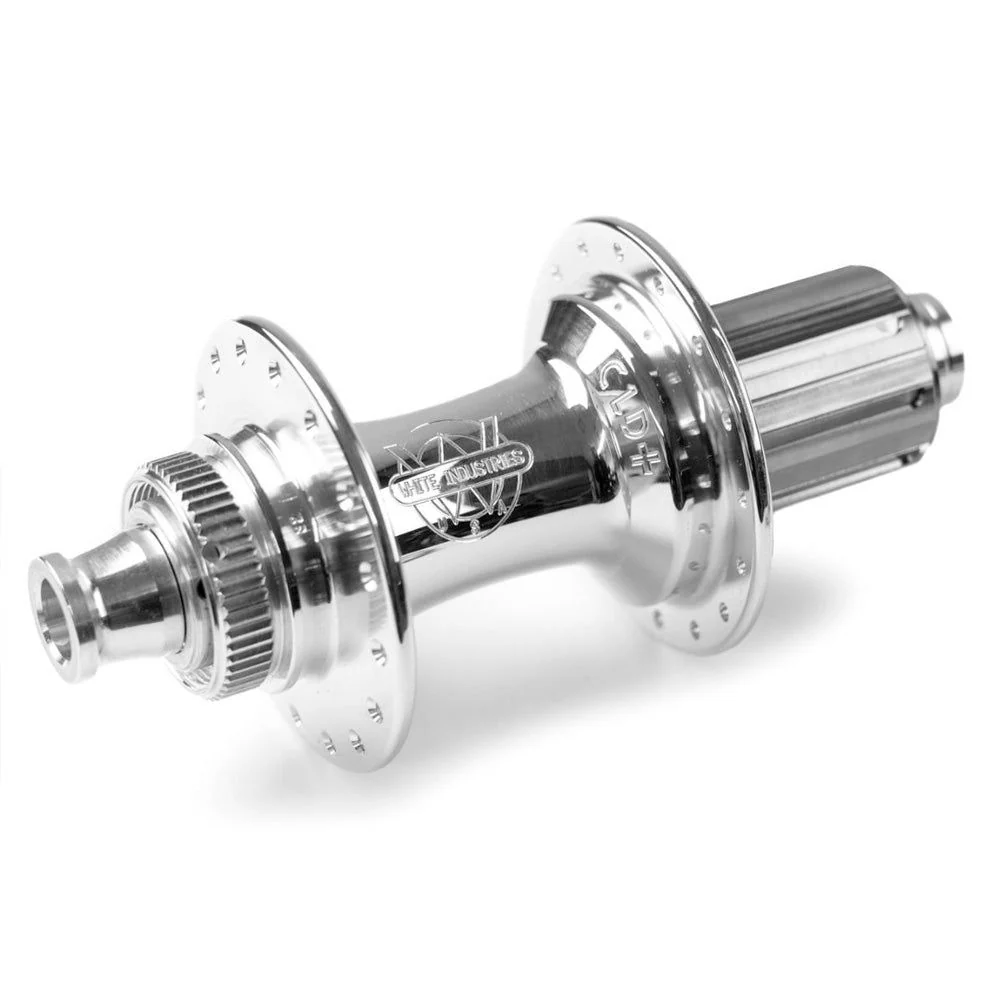

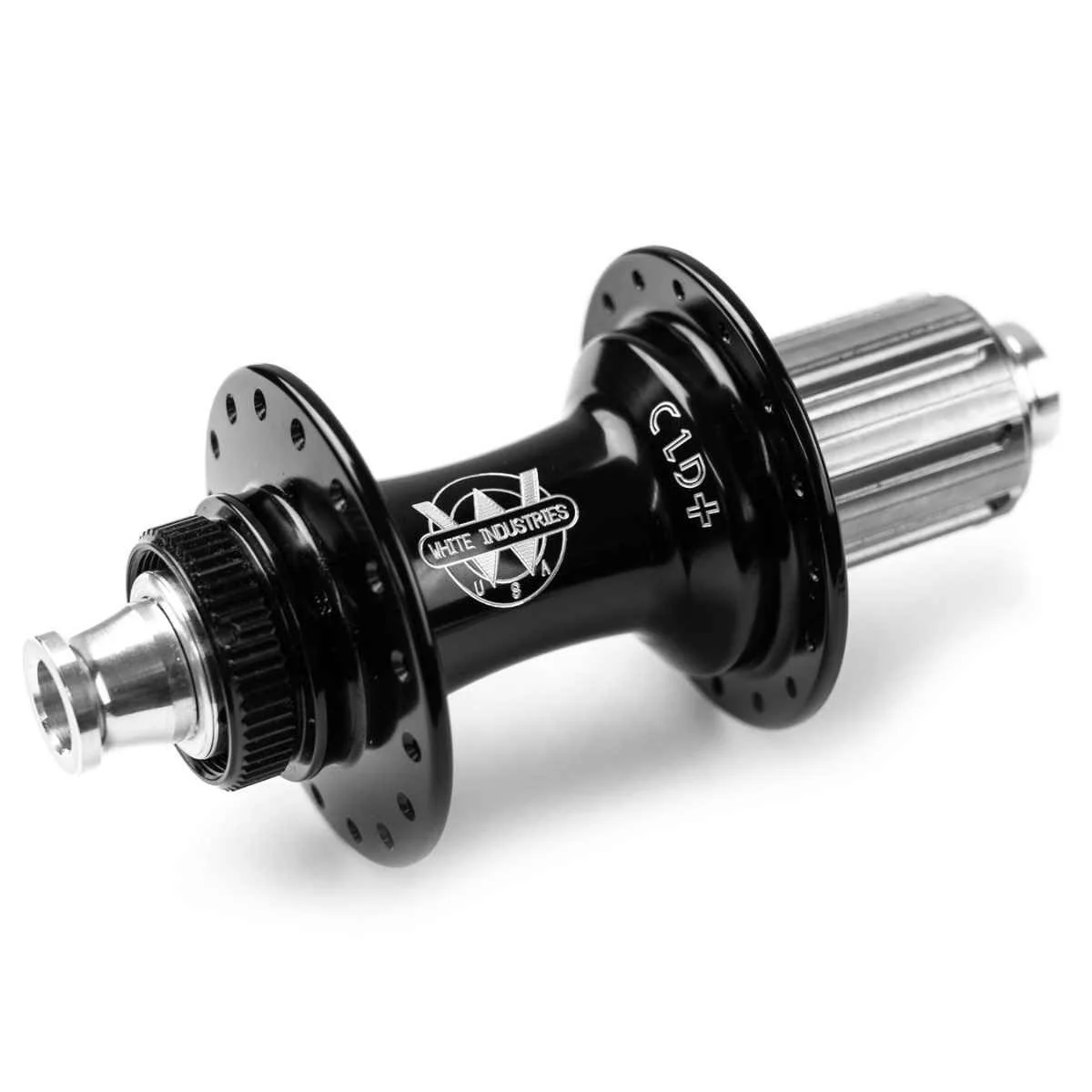

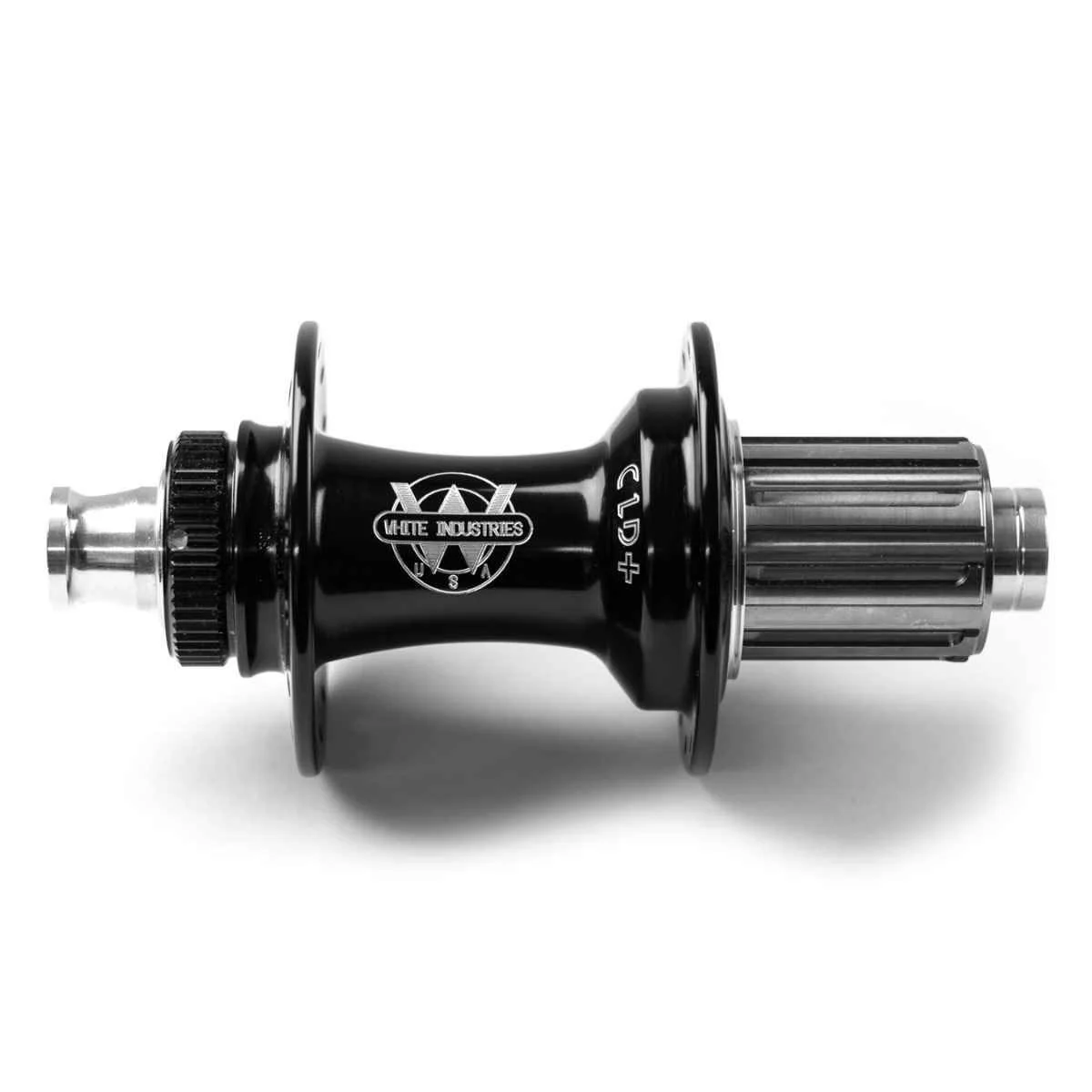

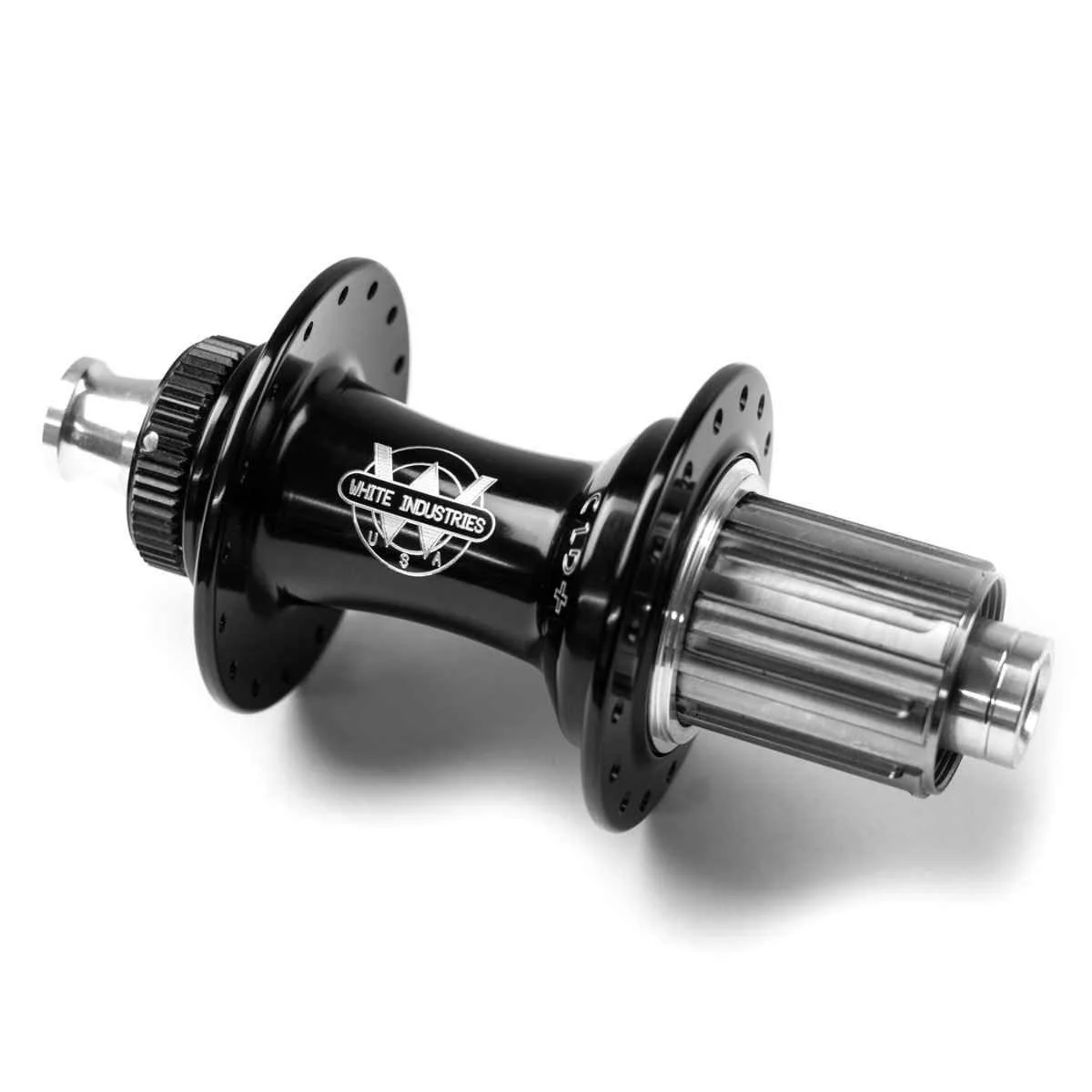

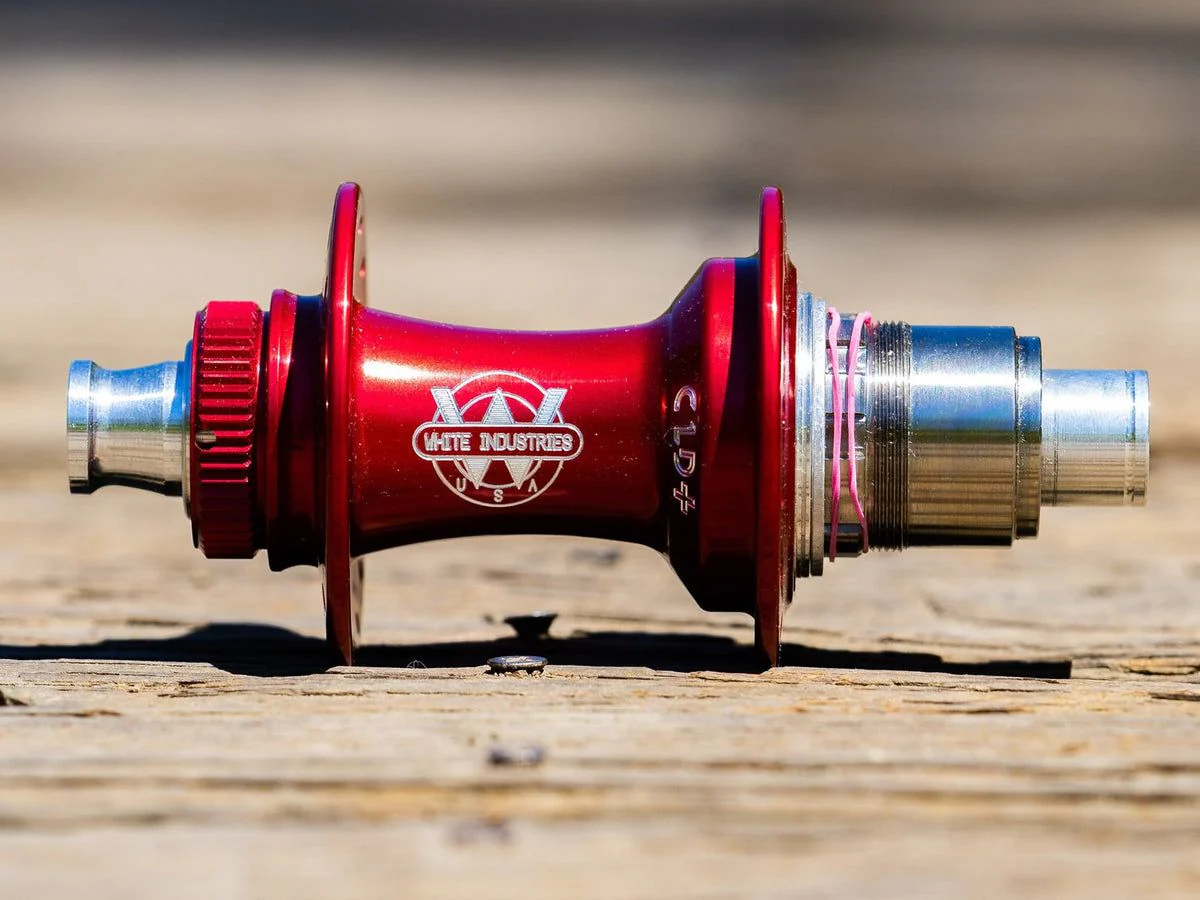

Our CLD+ (Center Lock Disc Boost) hubs are designed around the Center Lock splined rotor mounting interface as opposed to the 6-bolt mounting standard used on our XMR hub. The Boost spacing allows for wider hub flange spacing which results in better spoke bracing angles. Made in our shop from U.S. sourced 6061-T6 aluminum, they’re available in a range of drillings.

A question we always get about our disc hubs is, “CLD or XMR? Which is better?”. Neither is “better” than the other. Both share the same internals and the differences really come down to the respective designs having to accommodate the two different rotor mounting interfaces. Bottom line is you really can’t go wrong with either hub!

Features

• U.S. made 6061-T6 aluminum
• Enduro bearings
• Compatible with Center Lock style rotors
• Rotor lockrings not included
• Rotor lockring compatibility
  • Externally splined lockring such as Shimano SM-HB20 or HB-M8010
• Radial spoke lacing not recommended

Specs

• 183g
• Drillings: 28, 32, 36
• Axles:
  • 15mm x 110mm Thru

Bearings

• Two Enduro ABEC 5 17287-LLU/LLB bearings

Wheelbuilding Specs

• Spoke hole diameter
  • 2.6mm

Left flange diameter	Right flange diameter	Center to left flange	Center to right flange
60mm	60mm	25.75mm	38.5mm

Technical Documents

• Front Hub Assembly
