TOPSTONE CARBON SPARES 2023 - 2024

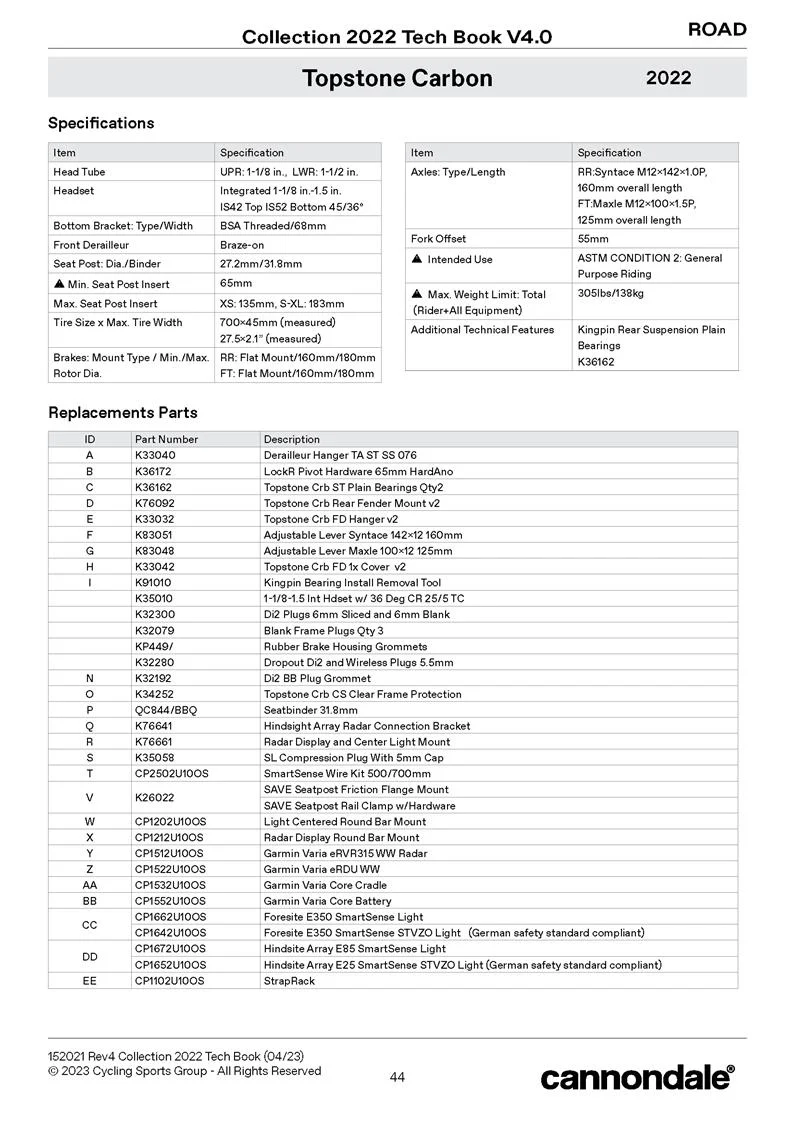

SPECIFICATIONS

Head Tube - Upper 1-1/8 in, LWR 1-1/2 in

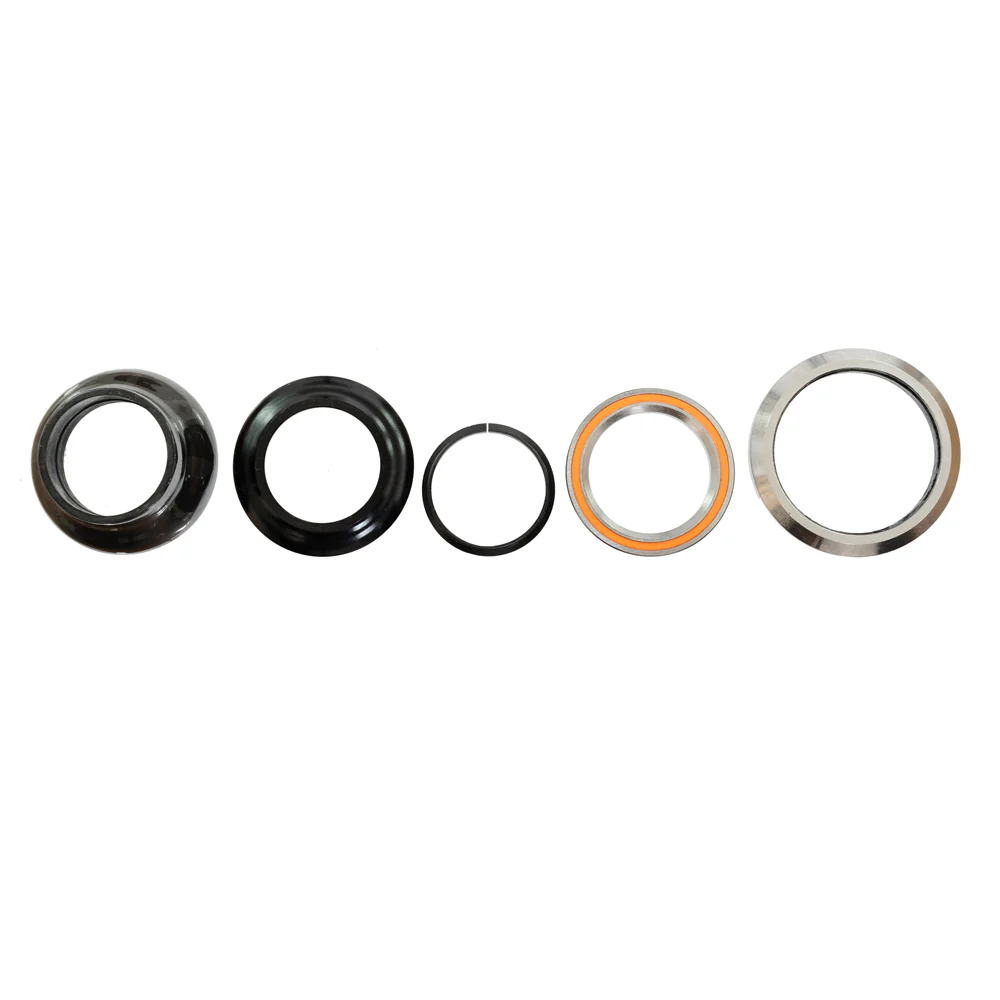

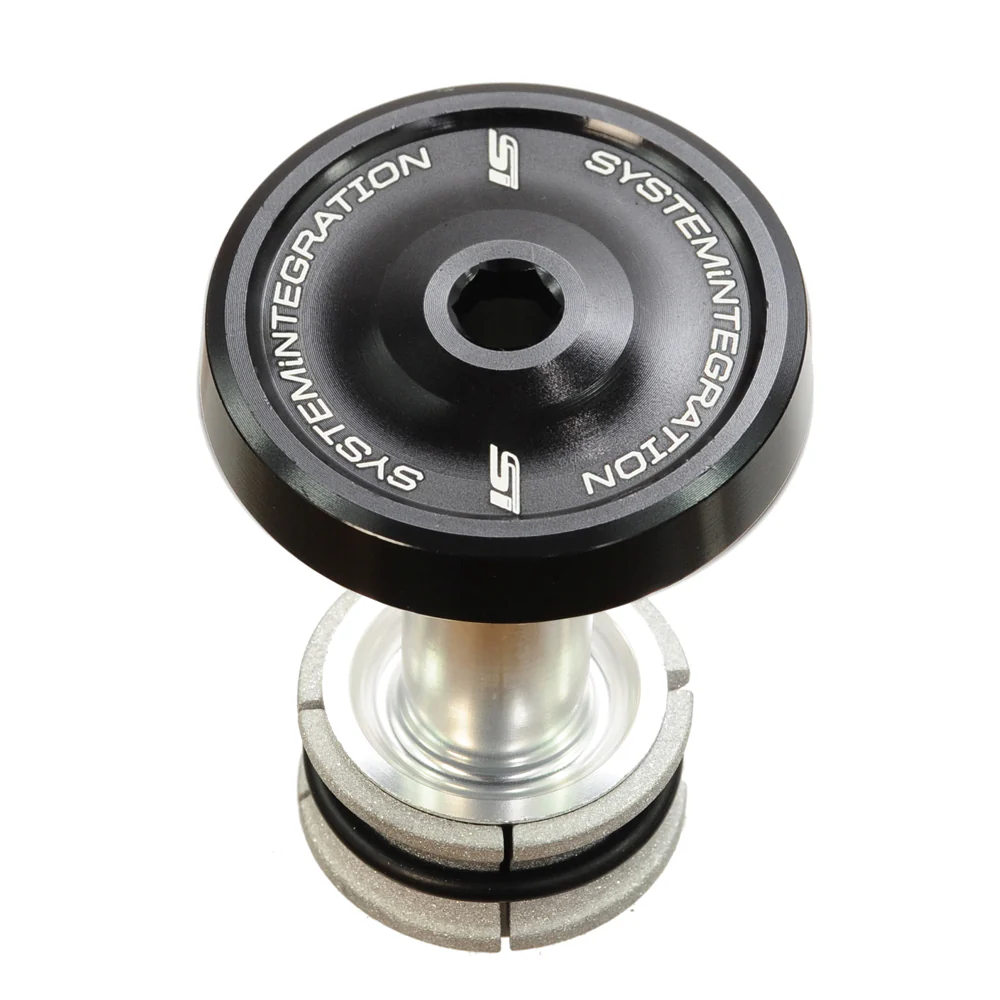

Headset - Integrated 1-1/8 in.-1.5 in. IS42 Top IS52 Bottom 45/36º

Bottom Bracket: Type / Width - BSA Threaded/68mm

Front Derailleur - Braze-on

Seat Post: Dia./Binder - 27.2mm/31.8mm

Minimum Seat Post Insert - 65 mm

Maximum Seat Post Insert - XS: 135mm, S-XL: 183mm

Tyre Size x Maximum Width - 700x45mm (measured), 27.5x2.1” (measured)

Brakes: Mount Type / Min / Max Rotor Diameter - RR: Flat Mount/160mm/180mm FT: Flat Mount/160mm/180mm

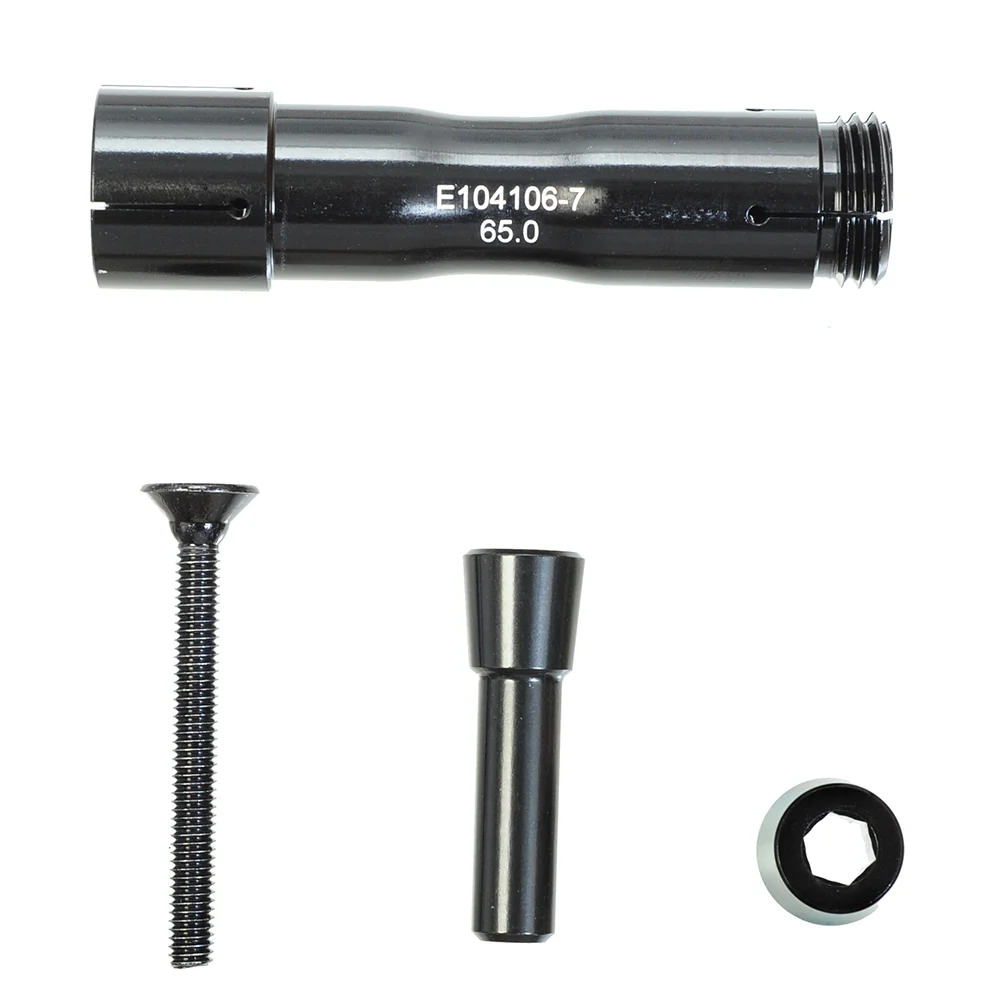

Axles: Type / Length - RR:Syntace M12x142x1.0P, 160mm overall length FT:Maxle M12x100x1.5P, 125mm overall length

Fork Offset - 55mm

Maximum Weight Limit: Total - 138kg
