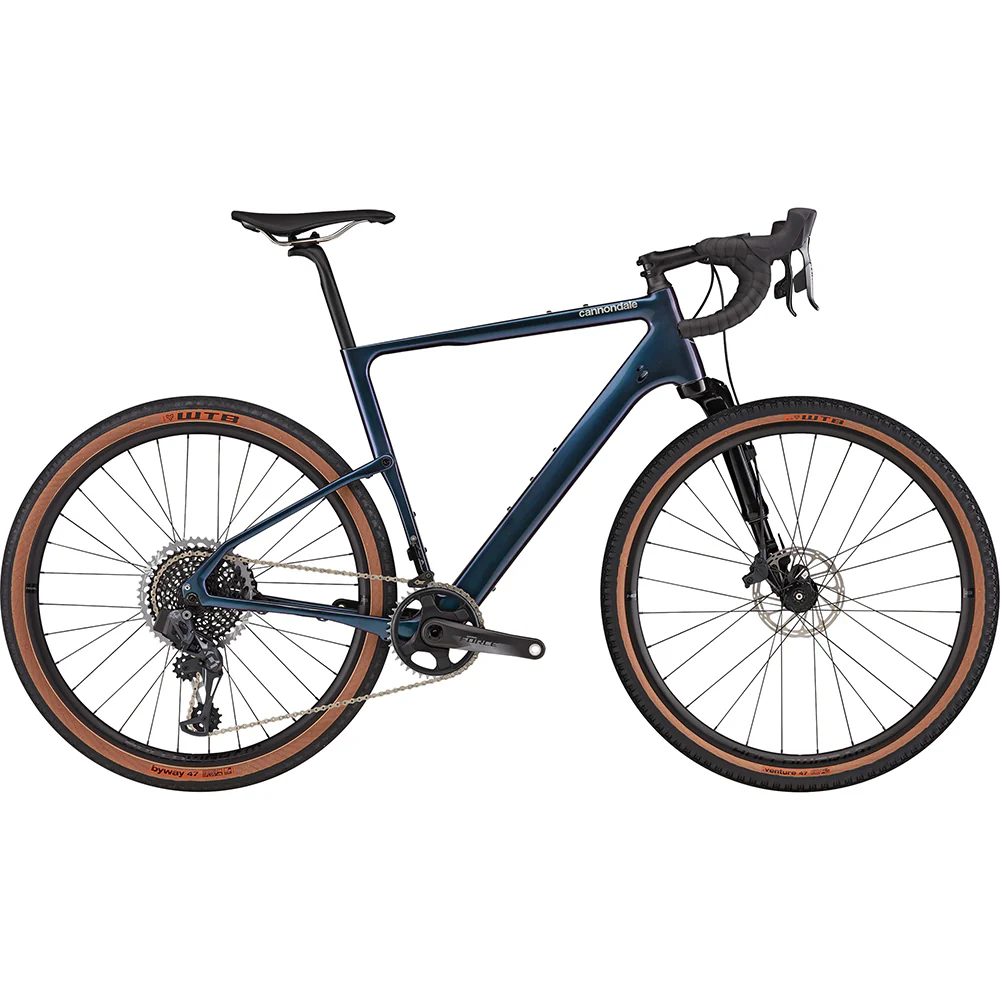

TOPSTONE CARBON SPARES 2020 - 2022

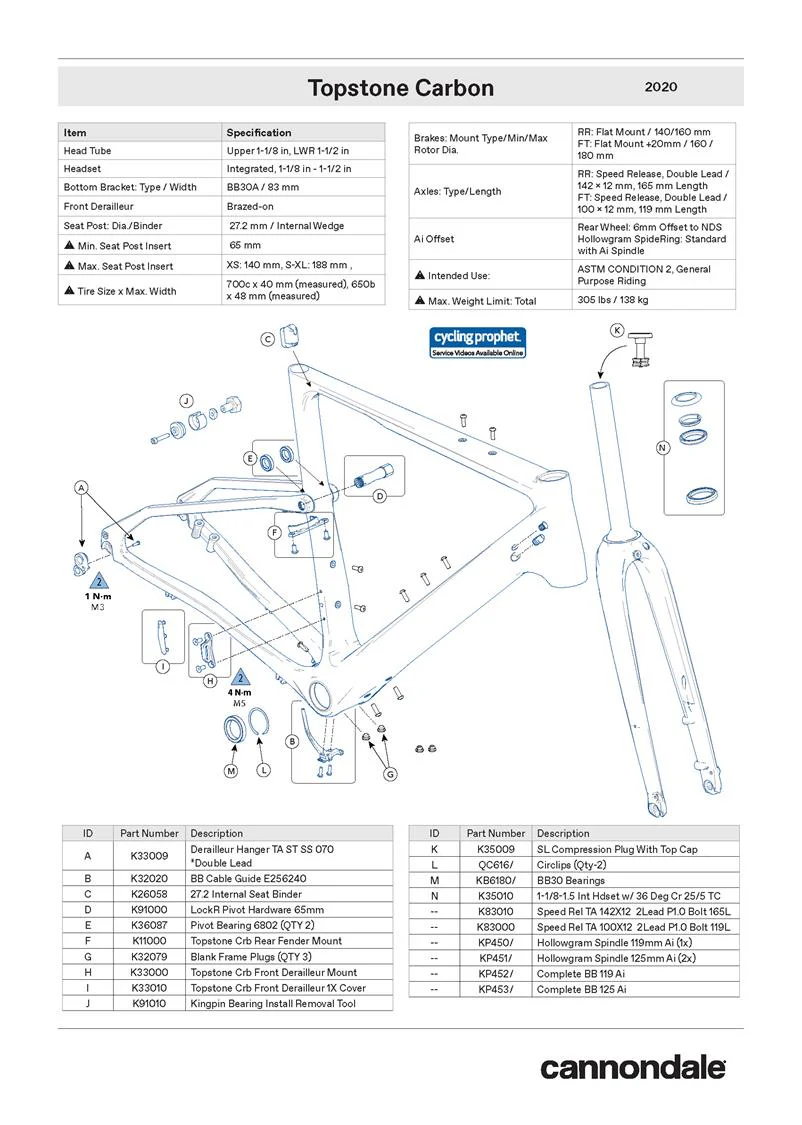

SPECIFICATIONS

Head Tube - Upper 1-1/8 in, LWR 1-1/2 in

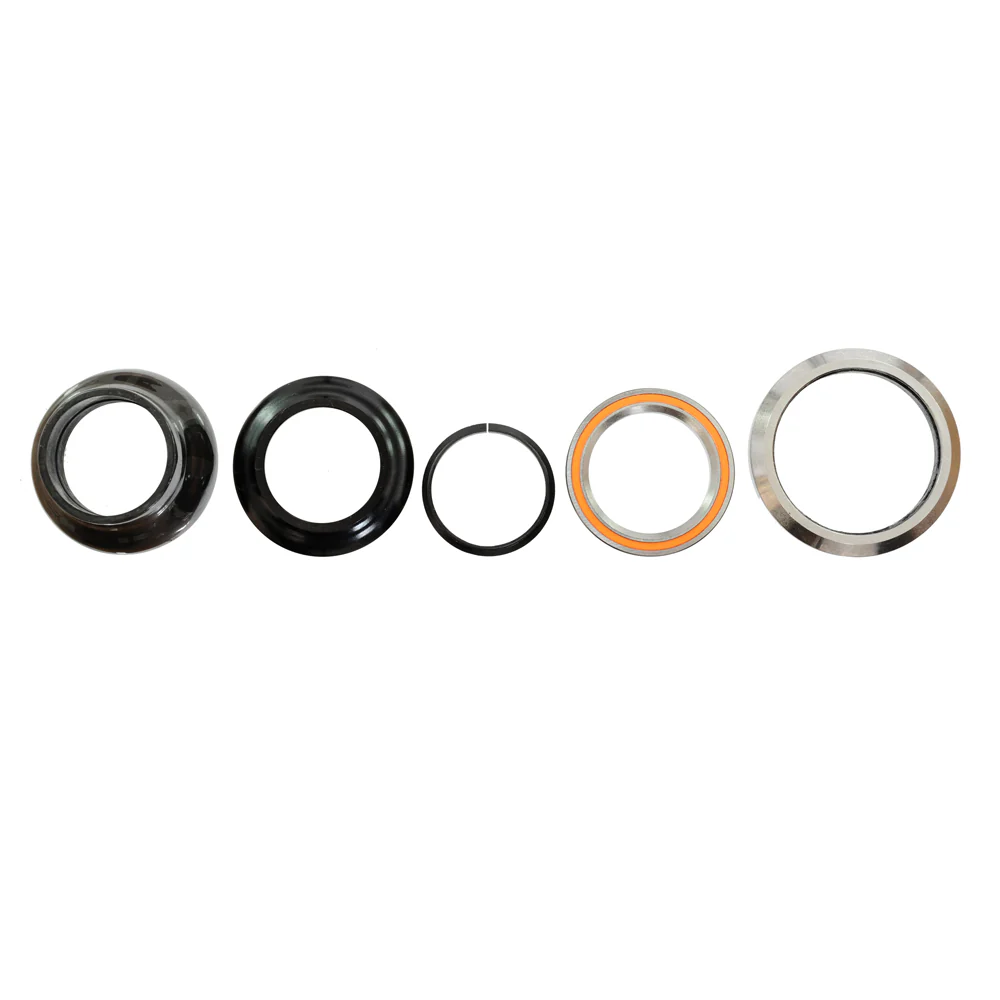

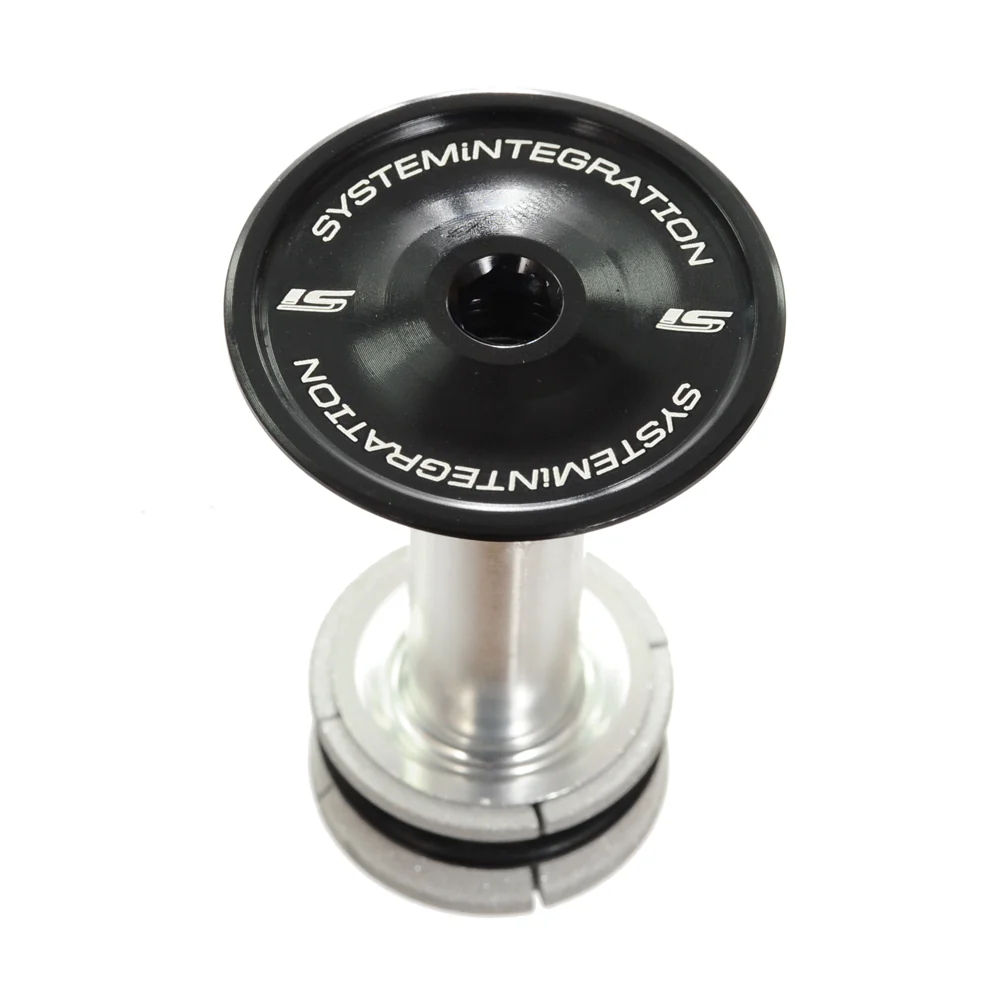

Headset - IS42 Top IS52 Bottom 45/36

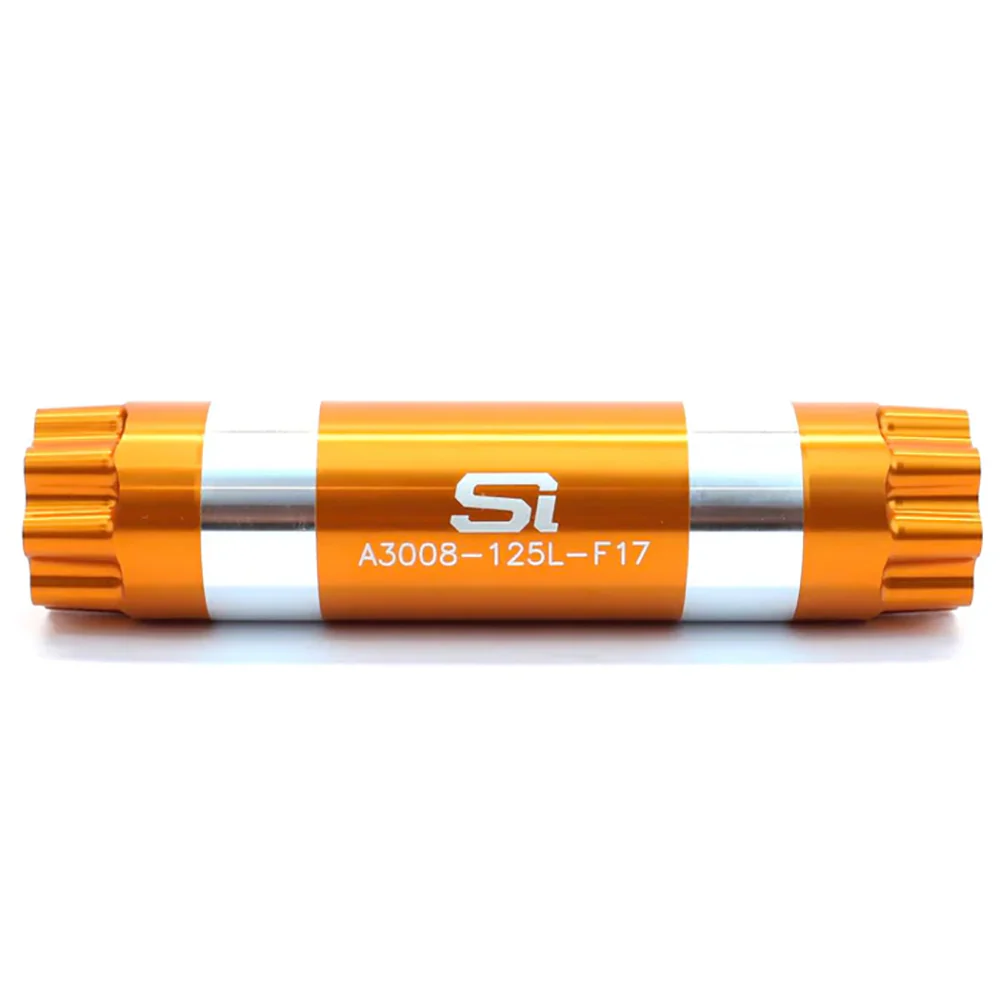

Bottom Bracket: Type / Width - BB30A / 83 mm

Front Derailleur - Brazed-on

Seat Post: Dia./Binder - 27.2 mm / Internal Wedge

Minimum Seat Post Insert - 65 mm

Maximum Seat Post Insert - XS: 140 mm, S-XL: 188 mm

Tyre Size x Maximum Width - 700c x 40 mm (measured), 650b x 48 mm (measured)

Brakes: Mount Type / Min / Max Rotor Diameter - RR: Flat Mount / 140/160 mm FT: Flat Mount +20mm / 160 / 180 mm

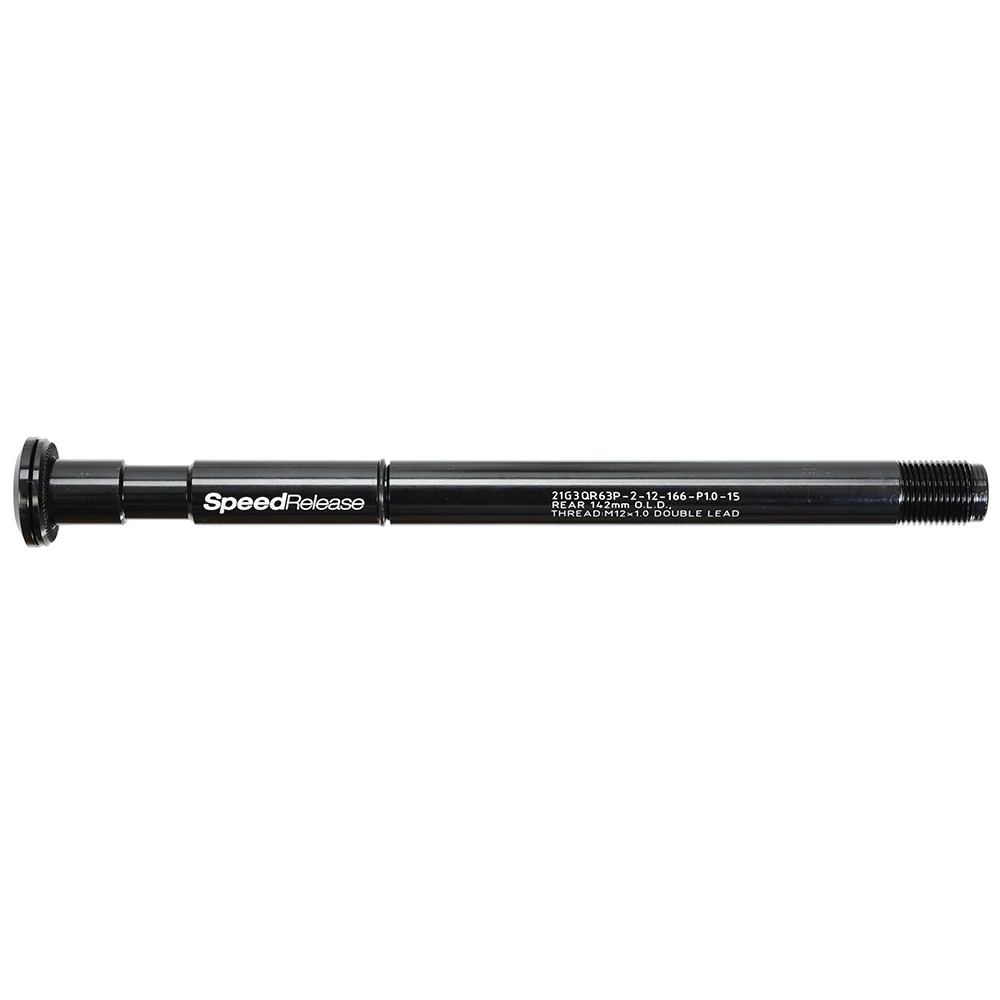

Axles: Type / Length - RR: Speed Release, Double Lead / 142x12mmx1.0P, 165 mm Length FT: Speed Release, Double Lead / 100x12mmx1.0P, 119 mm Length

Ai Offset - Rear Wheel: 6mm Offset to NDS Hollowgram SpideRing: Standard with Ai Spindle

Maximum Weight Limit: Total - 138kg
