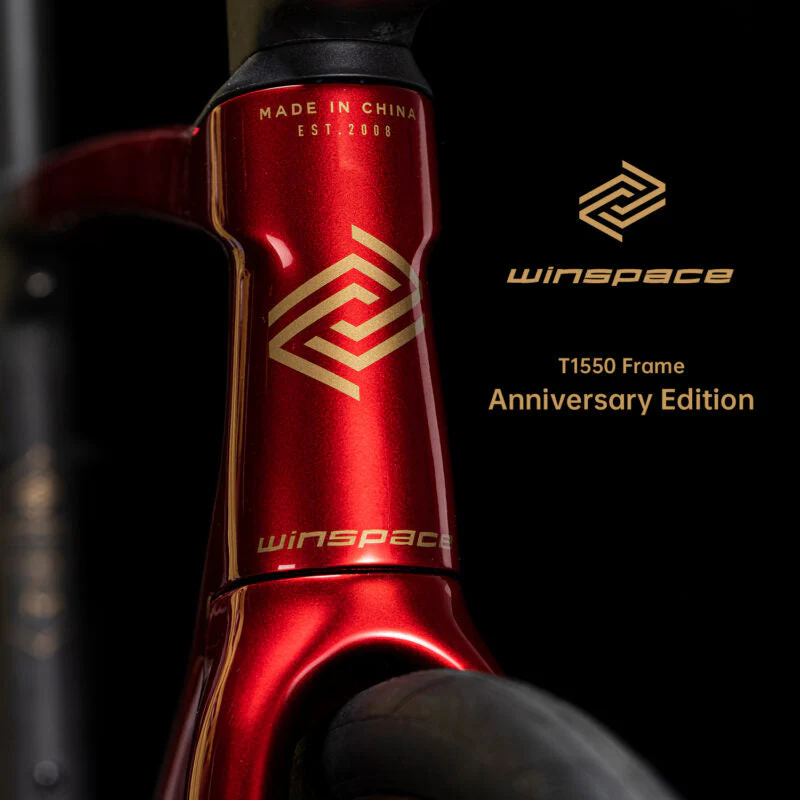

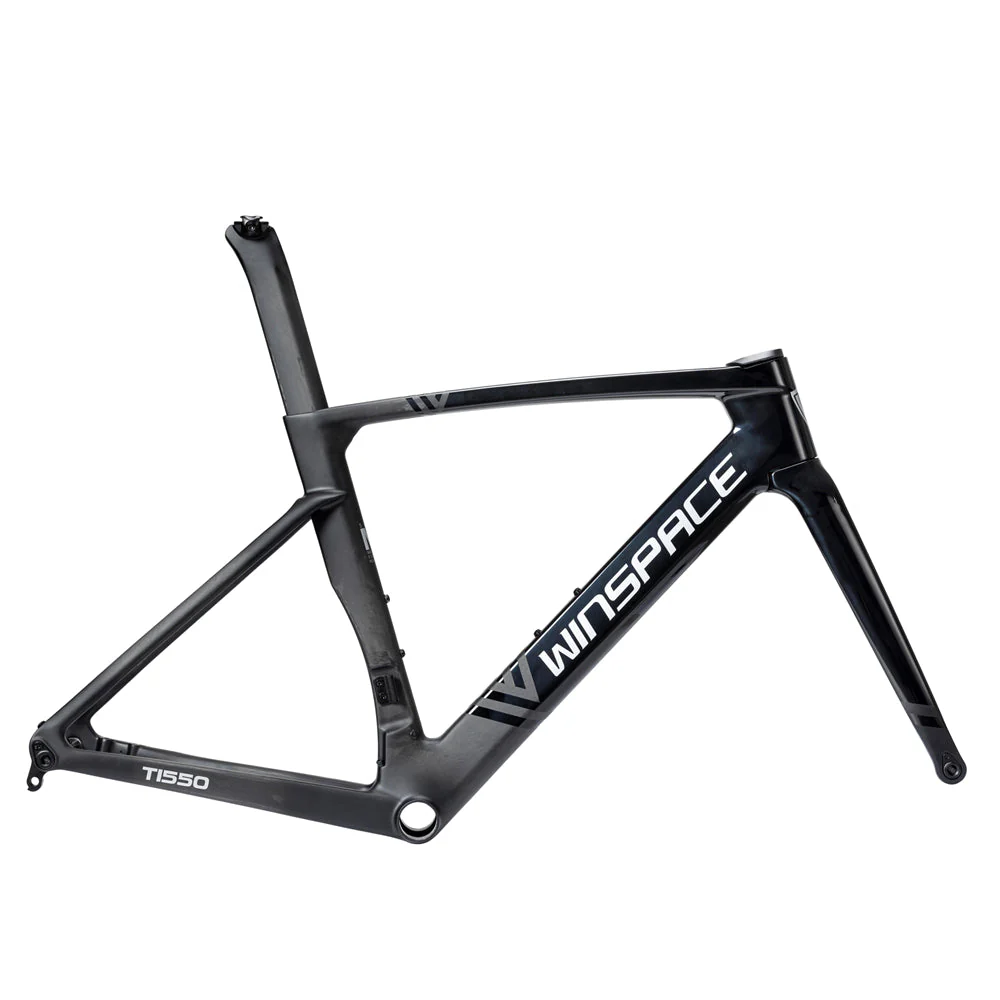

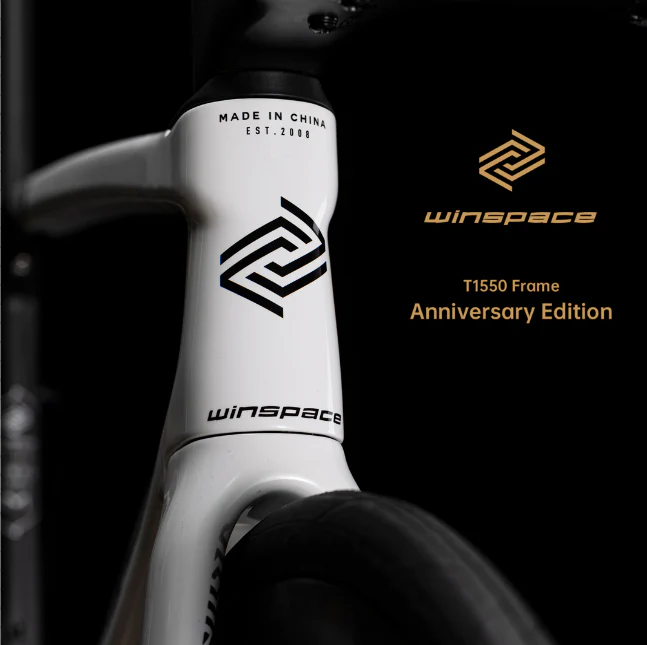

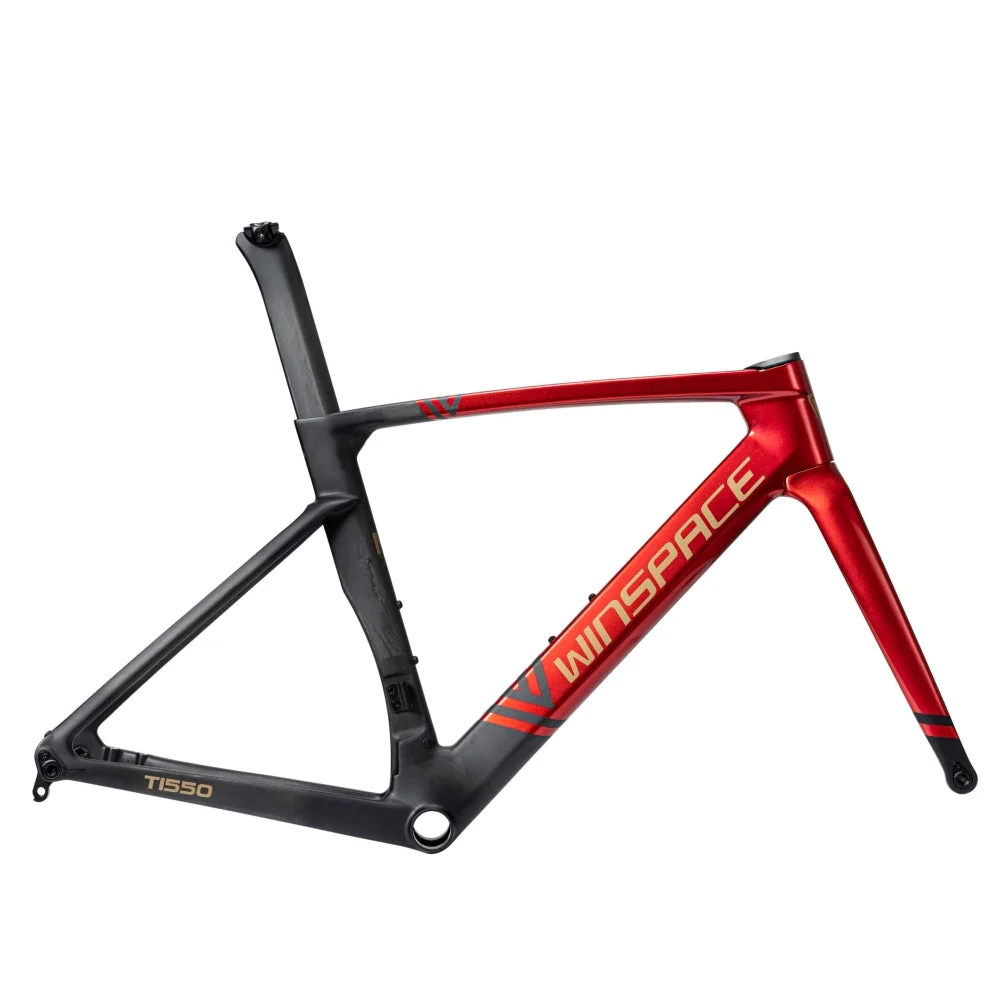

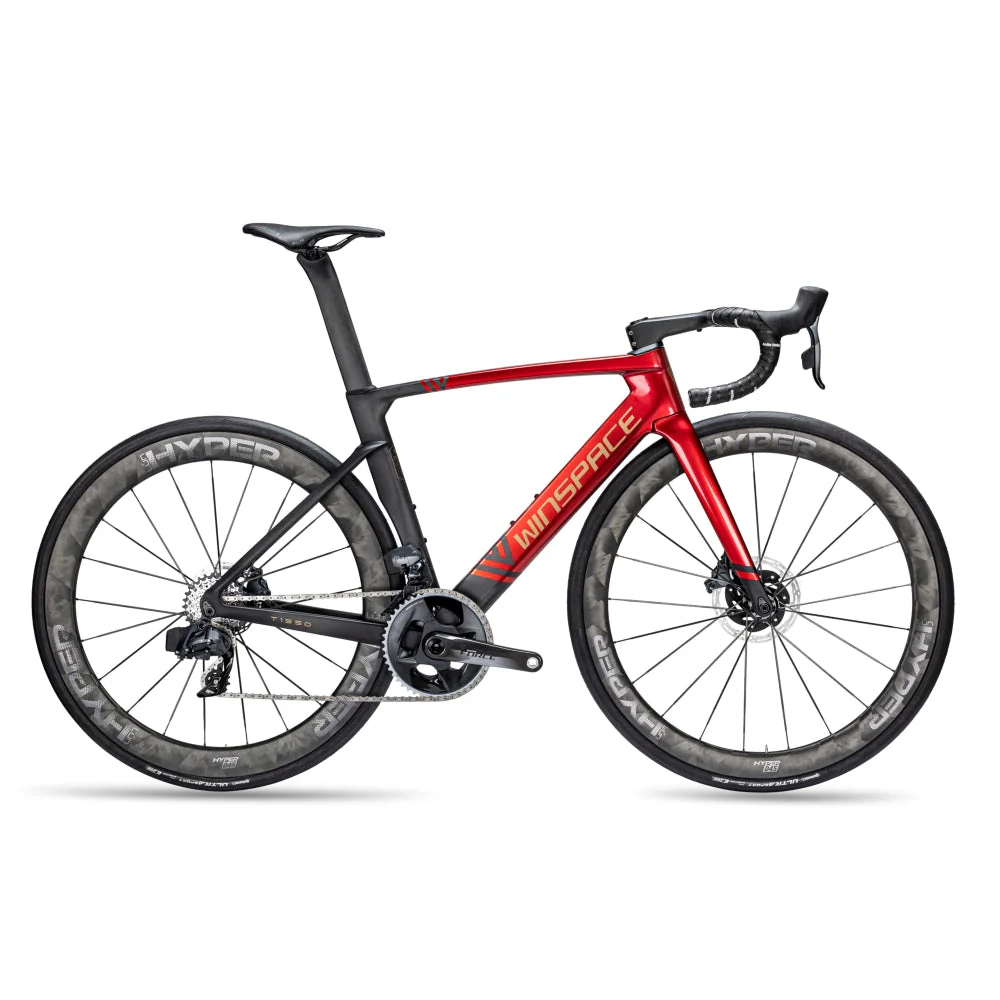

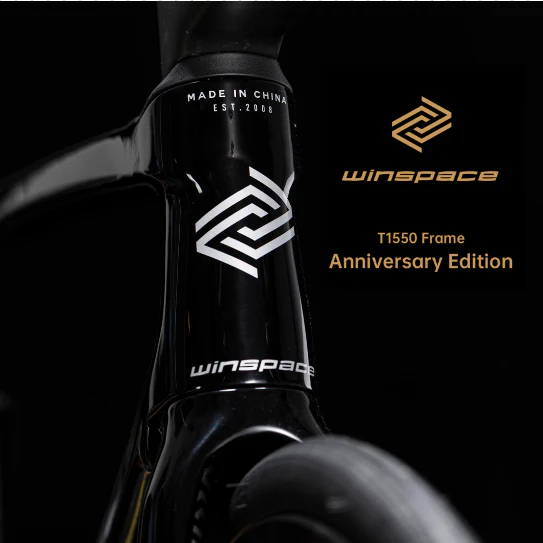

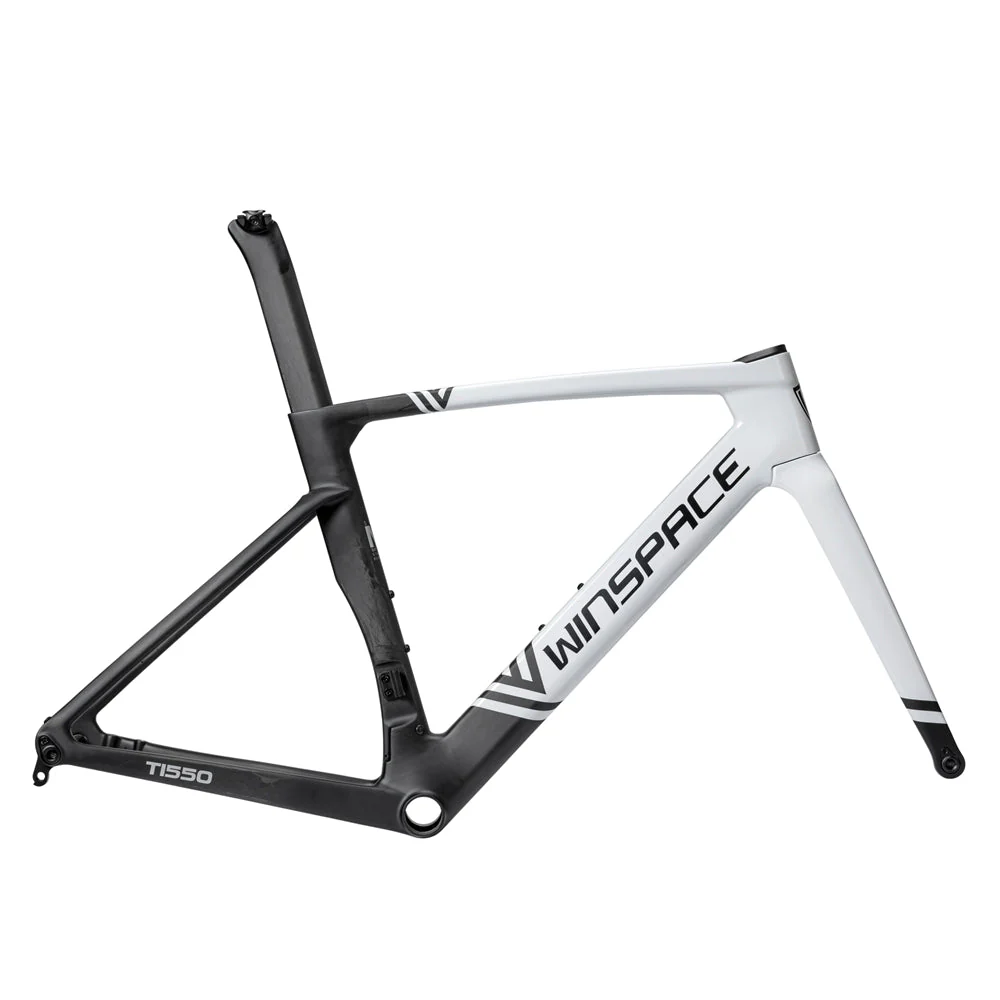

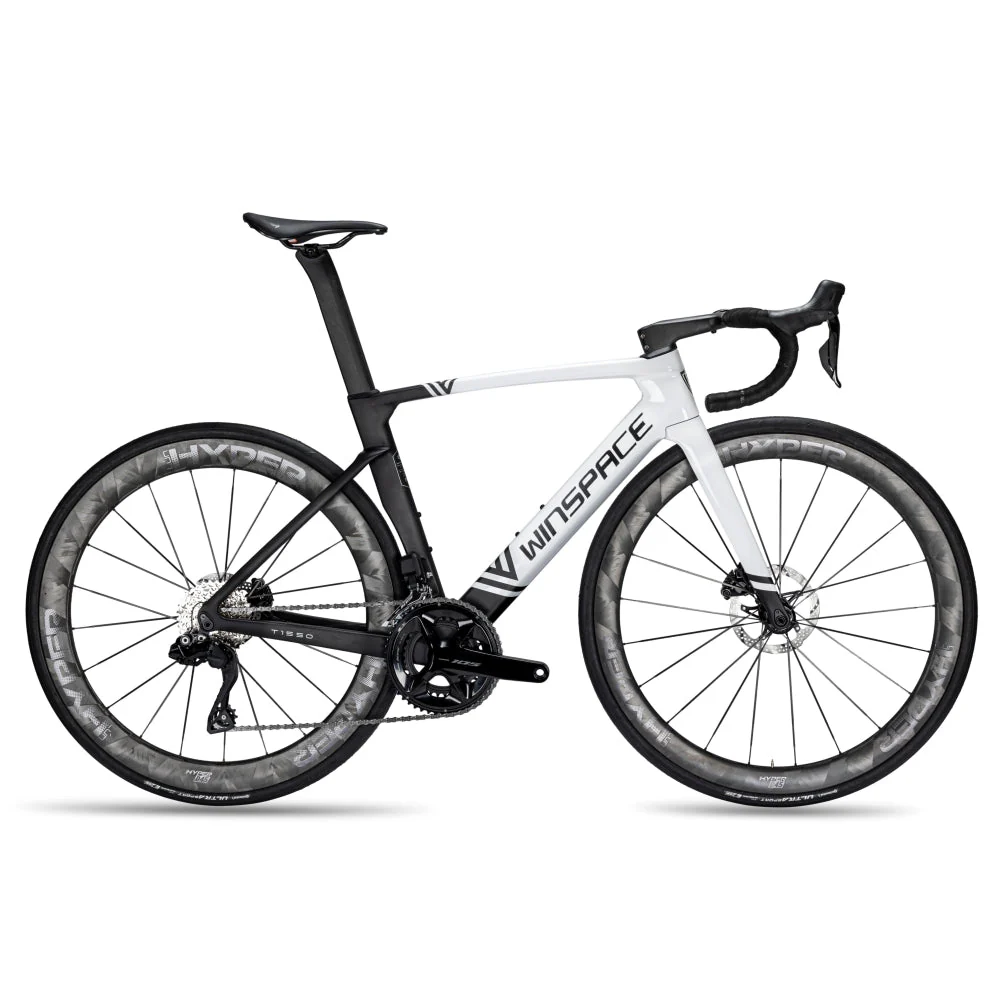

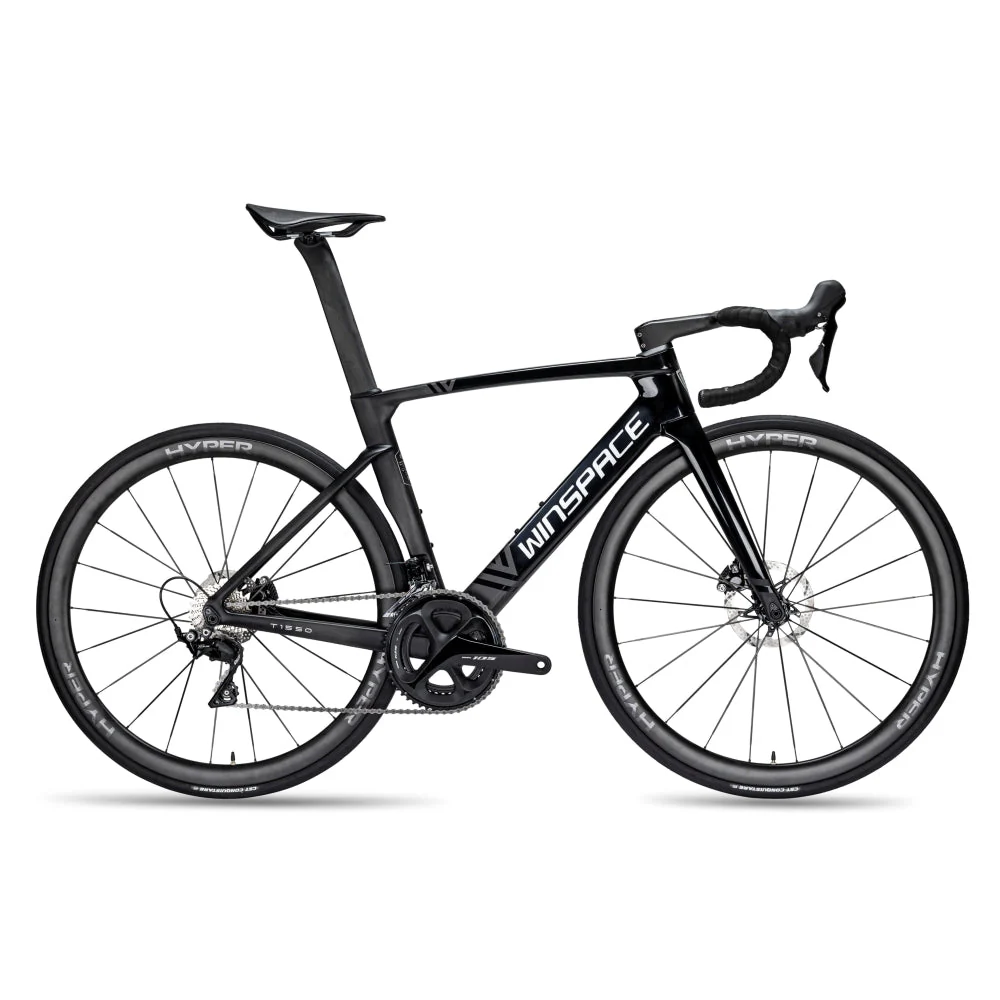

T1550 "15th Anniversary" Aero Carbon Frameset
Born to race. The T1550 marks Winspace's 15th anniversary as a manufacturer and is an unapologetic race bike with aggressive geometry and an emphasis on performance. Featuring Italian design merged with our carbon fiber know-how. Available in Rim or Disc Brake options and compatible with mechanical or electronic groupsets the T1550 is a bike builder’s dream. Fully UCI Certified and ready to race in the highest levels of competition.
Specifications
Model name: T1550
Sizes: Please refer to geometry charts below for sizing
Headtube: NO.55R 1.5″/ACR/STD (headset included.)
BB: BB86
Seatpost: Proprietary Aero Seat Post (Included.)
Brake: direct mount rim brake / flat mount disc brake
Front derailleur: Brazed on
Derailleur Routing: Mechanical / Di2 /Campy EPS / SRAM eTAP
Tire clearance: Max. 700C*32C
Wheel Axle: Rim Brake: 9mm QR F100mm R130mm / Disc Brake: 12mm through axle F100mm R142mm
Carbon fiber: Toray T800
Weight: frame 880+/-35g for M size (Unpainted)
UCI approved
Contents: Frame, Fork, Seatpost, Headset, Di2 cable stoppers, Spare Derailleur Hanger
Warranty: Limited 3yr warranty on the frameset
