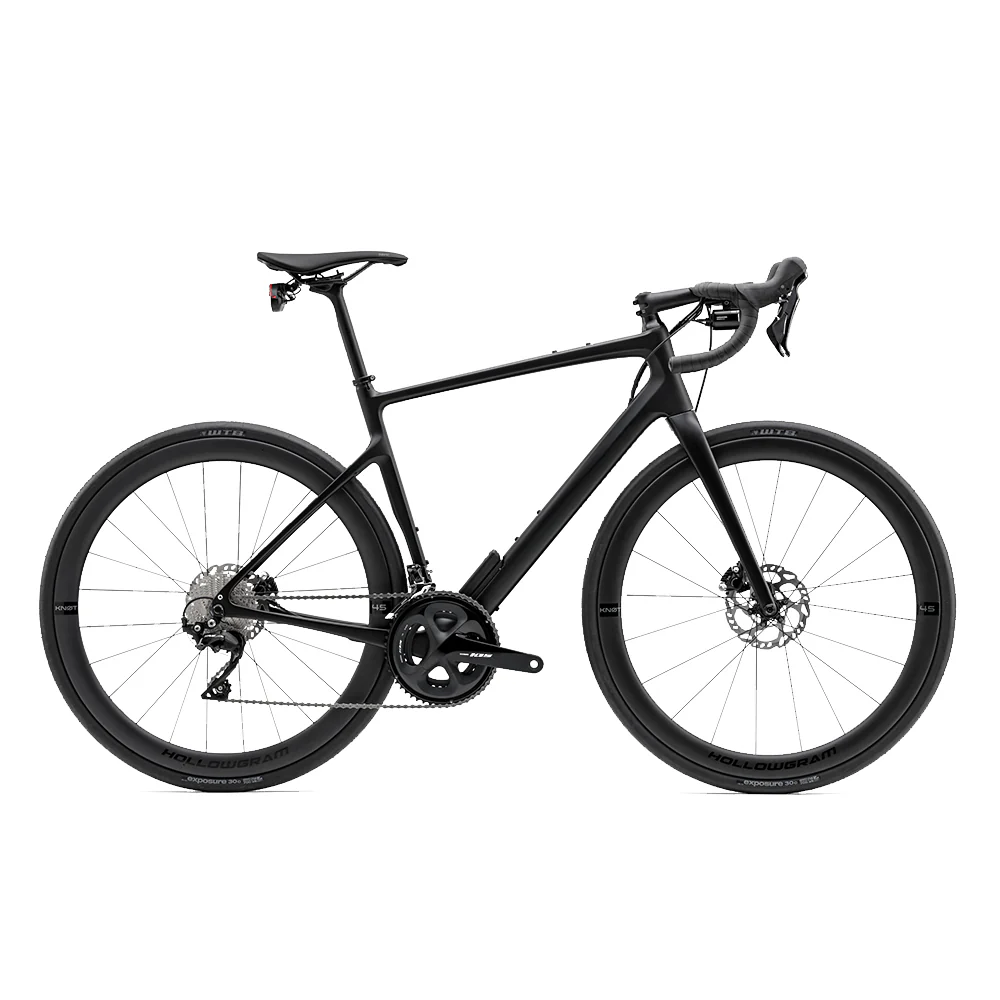

SYNAPSE CARBON SPARES 2023 - 2024

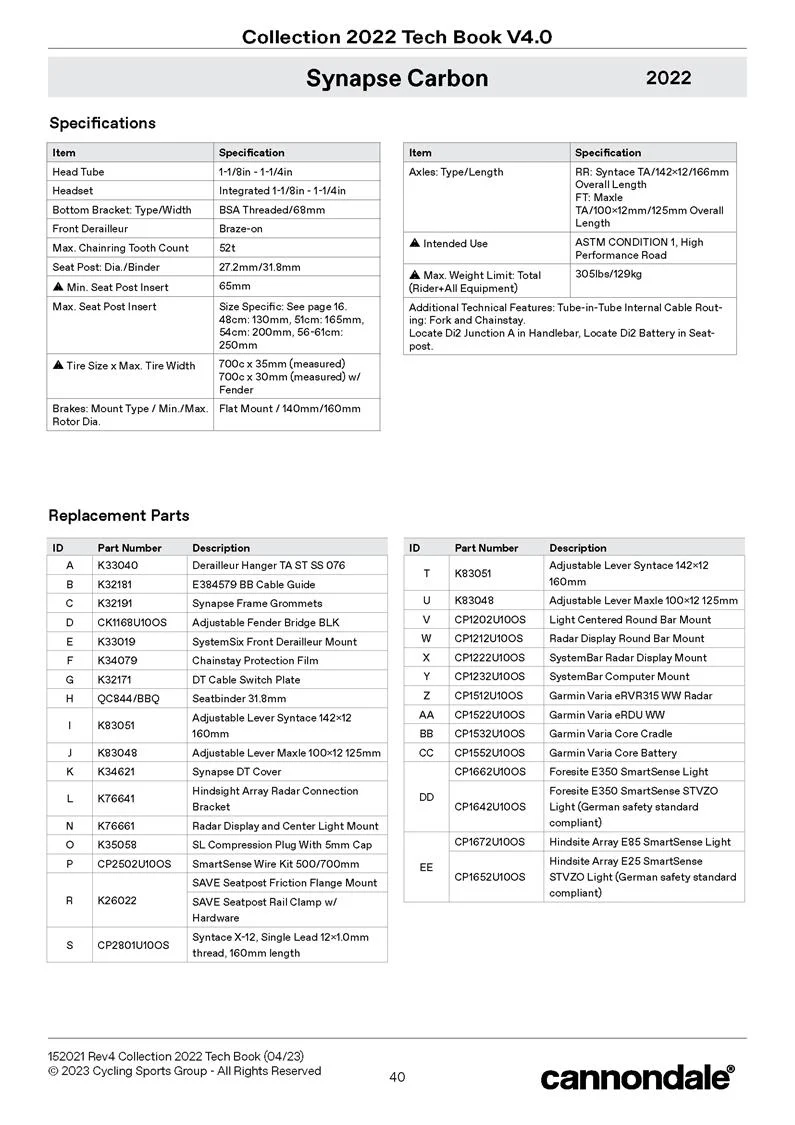

SPECIFICATIONS

Head Tube -  1-1/8in - 1-1/4in

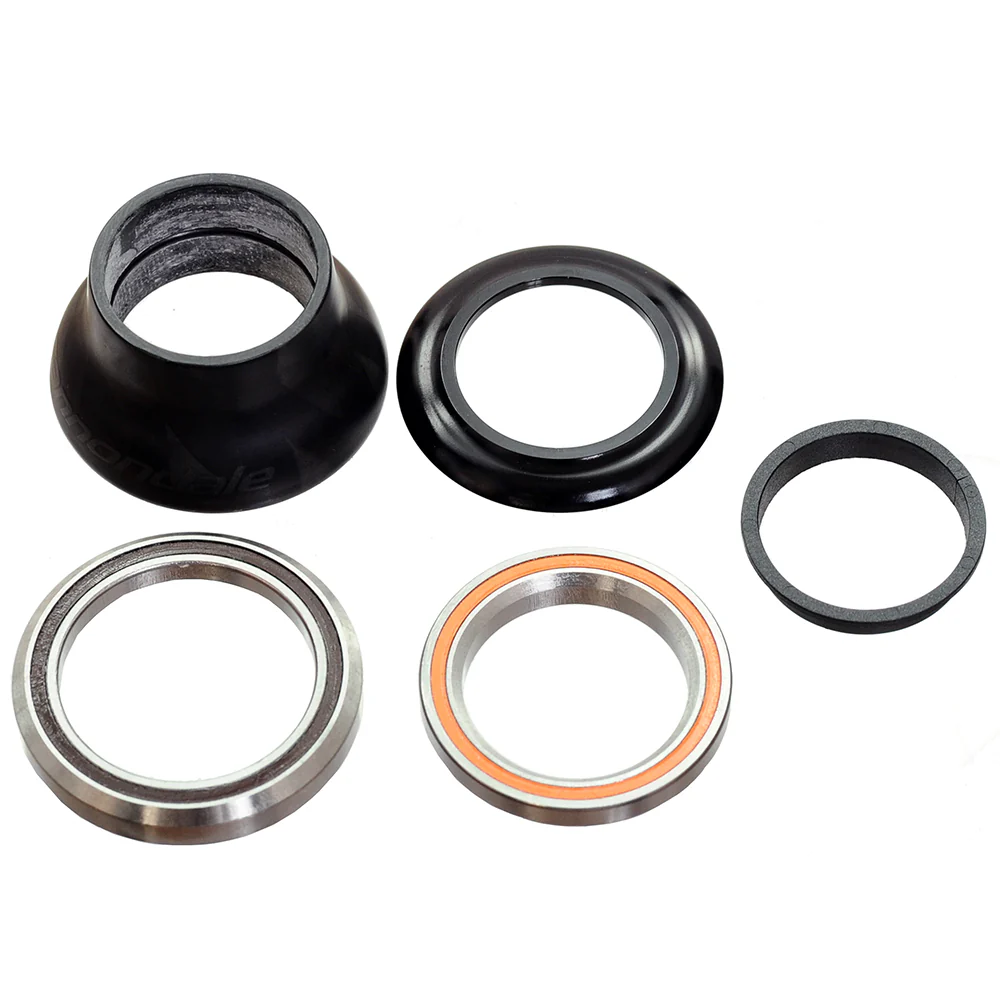

Headset -  Integrated 1-1/8in - 1-1/4in

Bottom Bracket - BSA Threaded/68mm

Front Derailleur - Braze-on

Maximum Chain Ring Tooth Count - 52t

Seat Post - 27.2mm/31.8mm

Minimum Seat Post Insert - 65mm

Maximum Seat Post Insert - 48cm: 130mm, 51cm: 165mm,54cm: 200mm, 56-61cm:250mm

Tyre Size x Maximum Tyre Width - 700c x 35mm (measured), 30mm with fender

Brakes: Mount Type / Min / Max Rotor Diameter - Flat Mount / 140mm/160mm

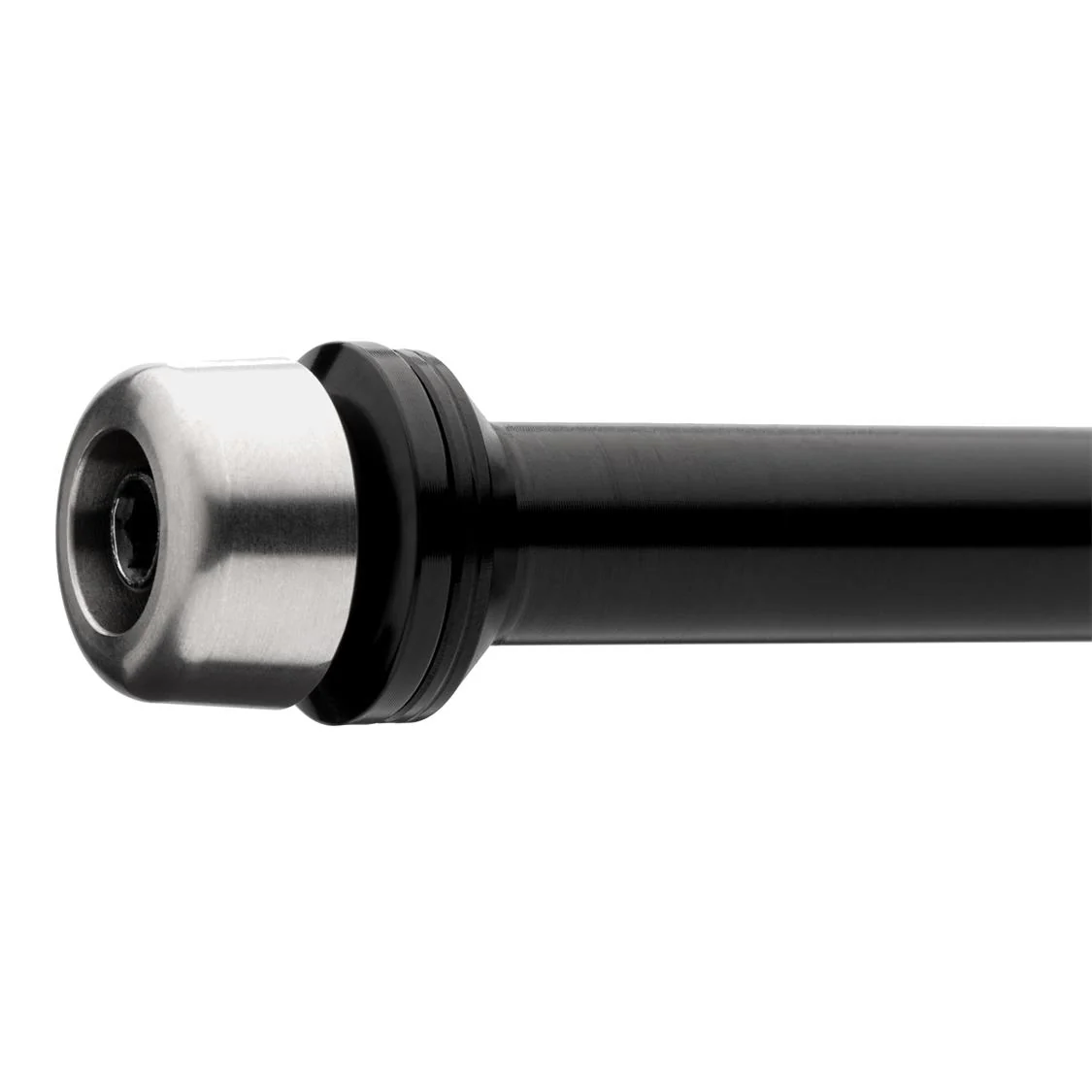

Axles: Type / Length -  RR: Syntace TA/142x12/166mm Overall Length FT: Maxle TA/100x12mm/125mm Overall Length

Maximum Weight Limit: Total (Rider+All Equipment) - 129kg
