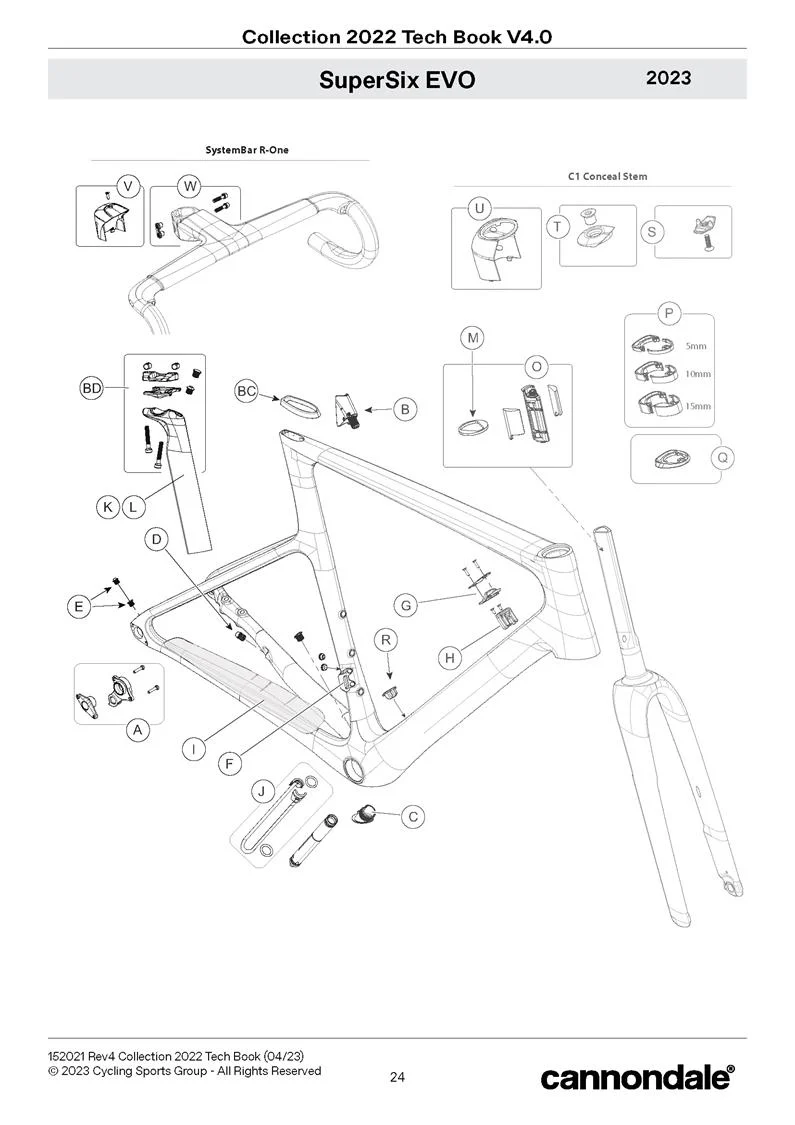

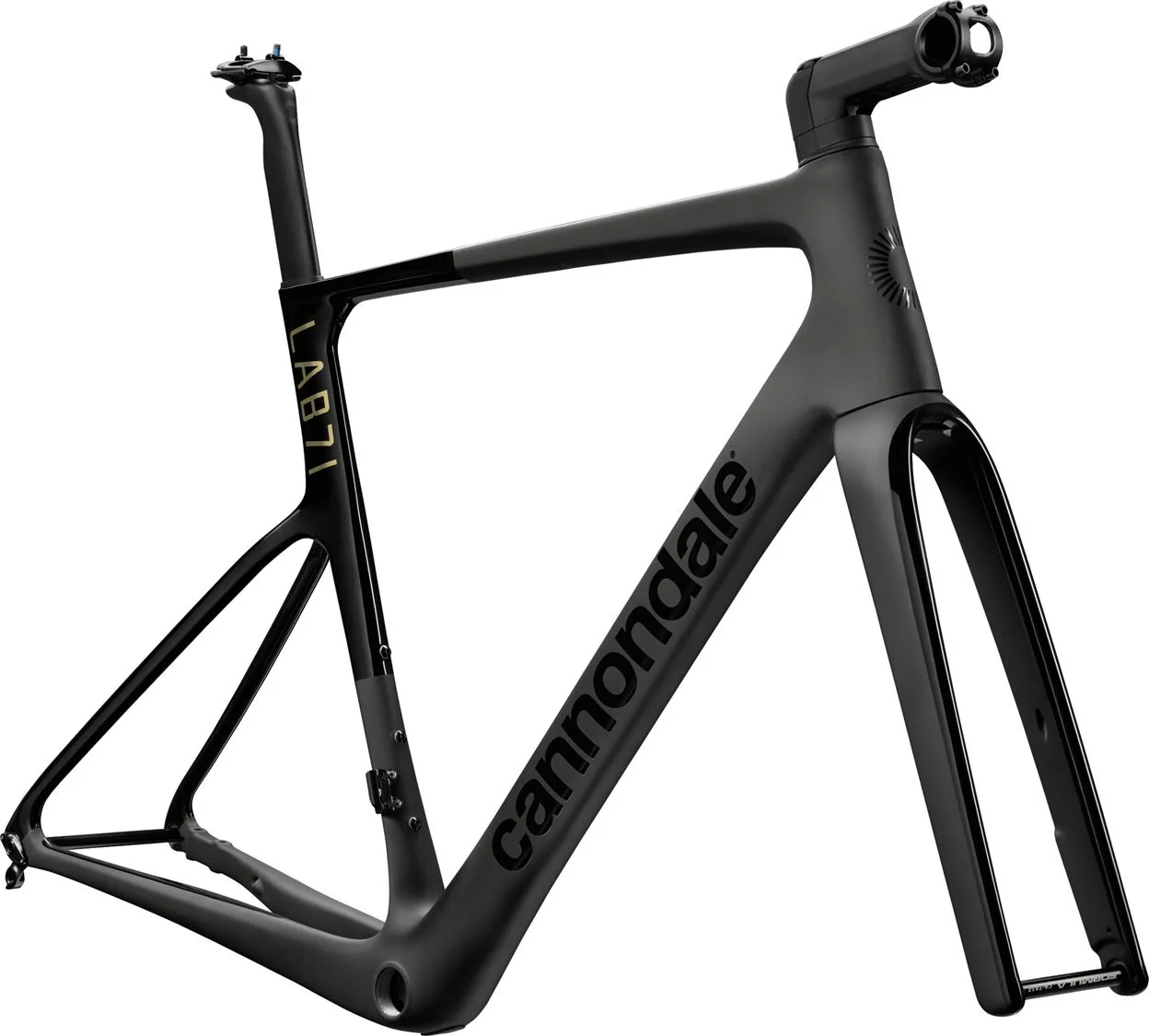

SUPERSIX EVO SPARES 2023 - 2025

SPECIFICATIONS

Head Tube -  UPR: 1-1/8in, LWR: 1-1/4in

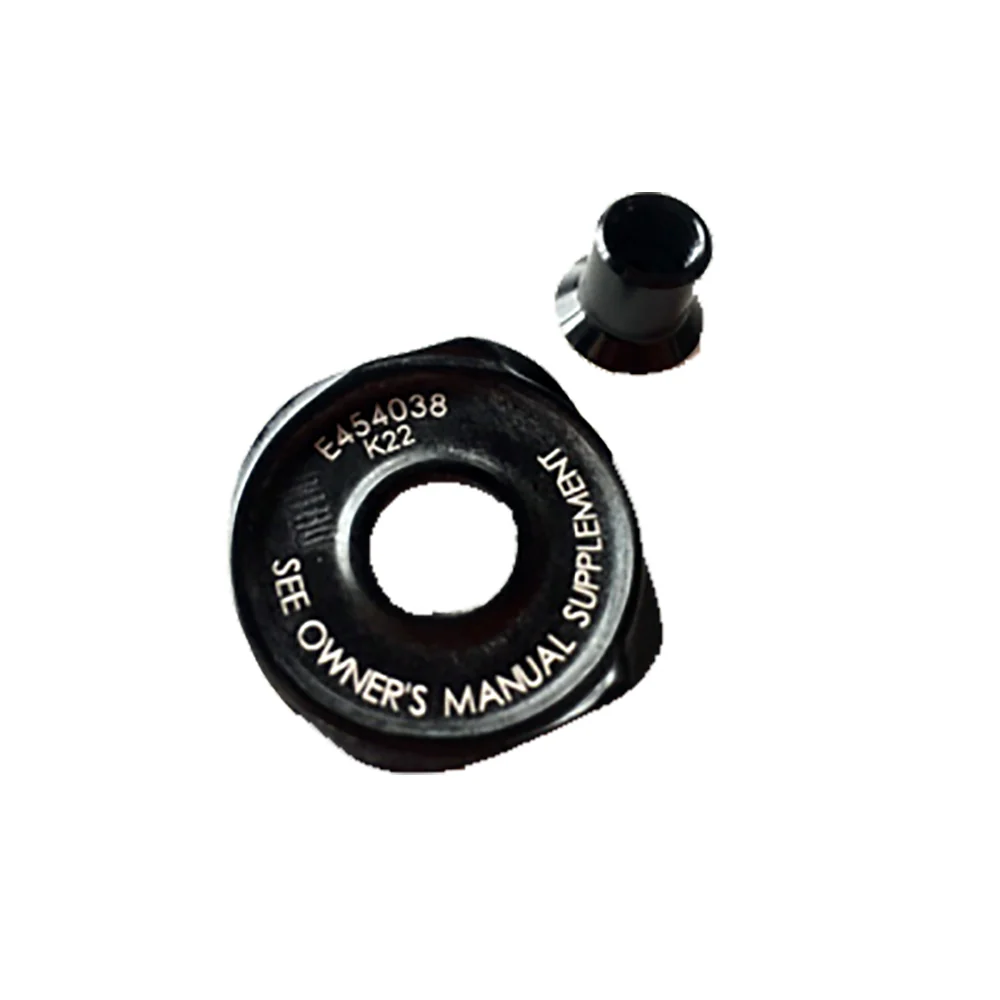

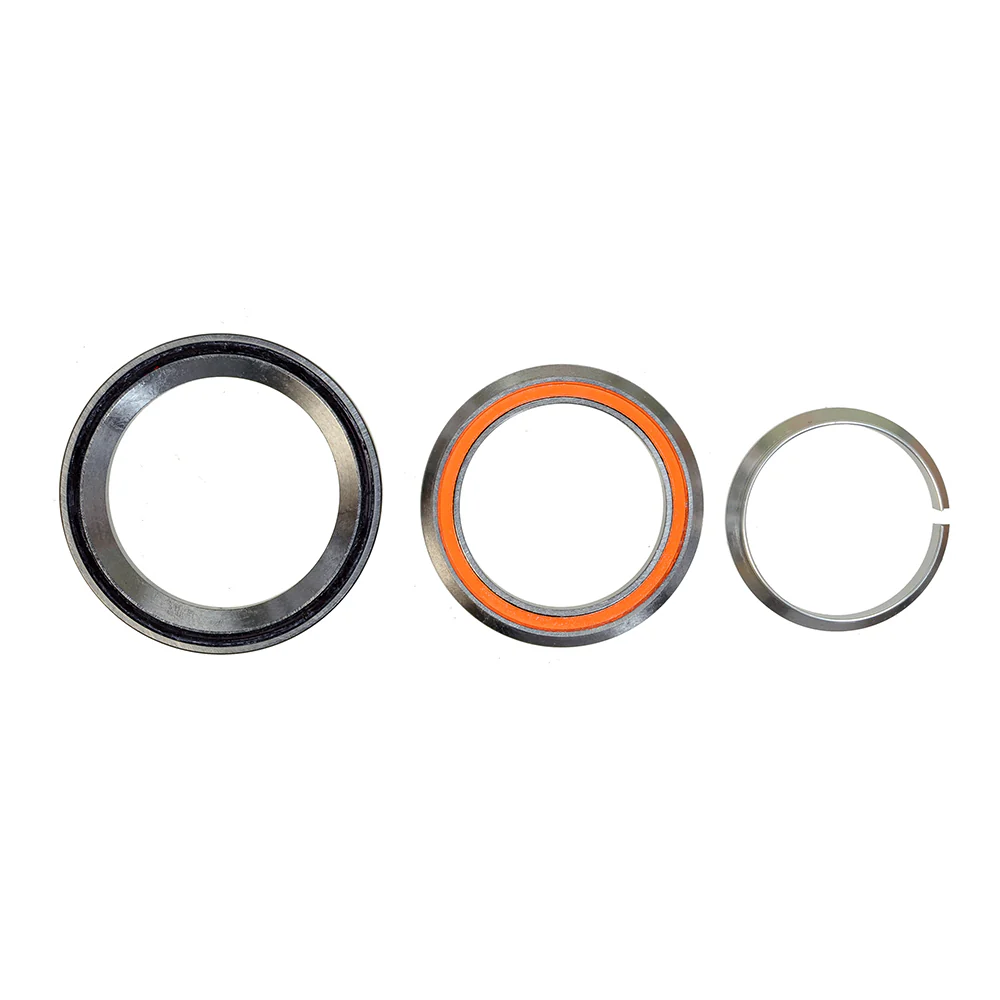

Headset -  Integrated 1-1/8in-1-1/4in, IS42 Top IS47 Bottom

Bottom Bracket - Type/Width BSA/68mm - Sleeve required

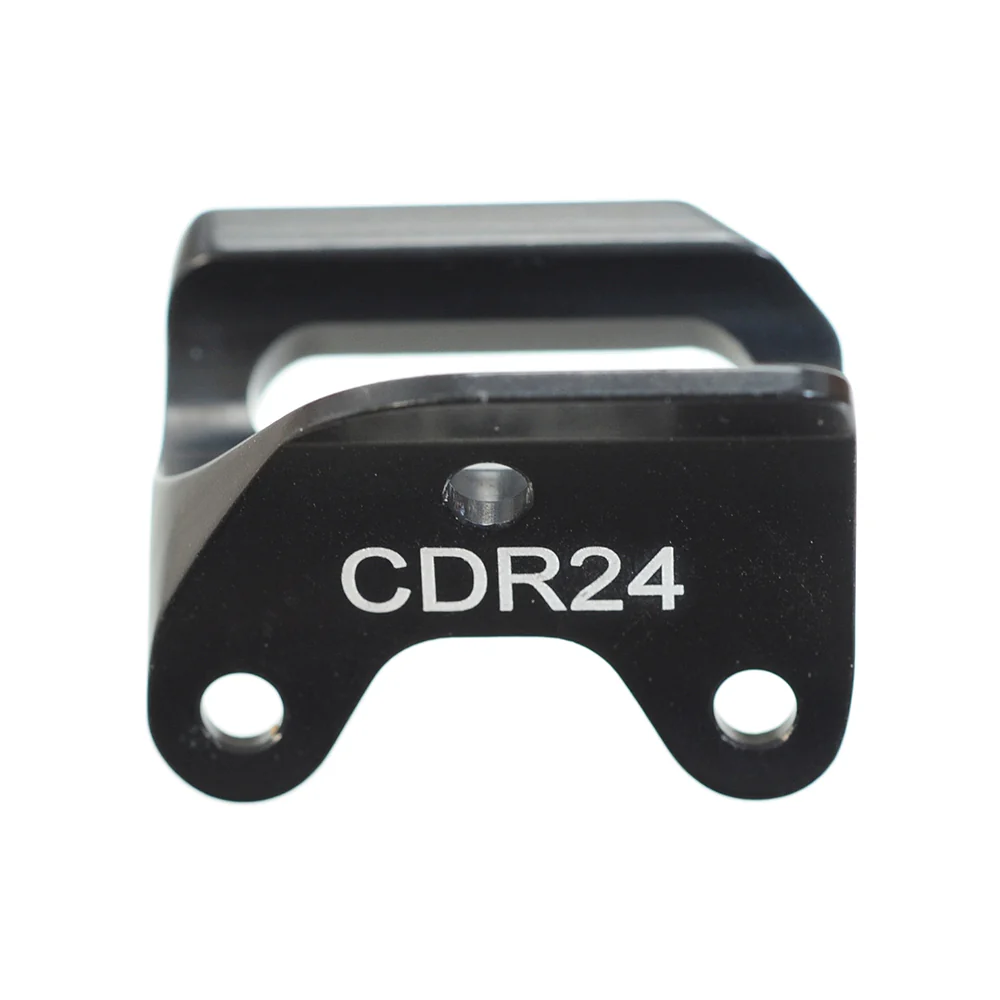

Front Derailleur - Braze-on

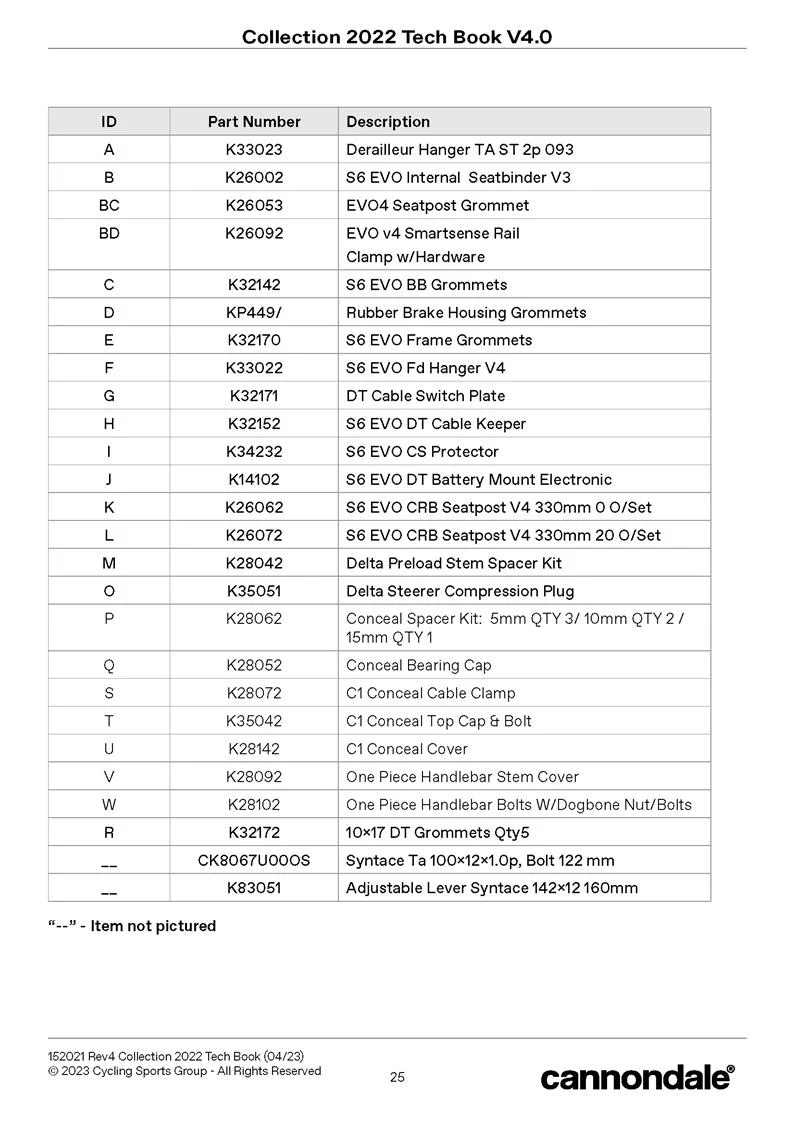

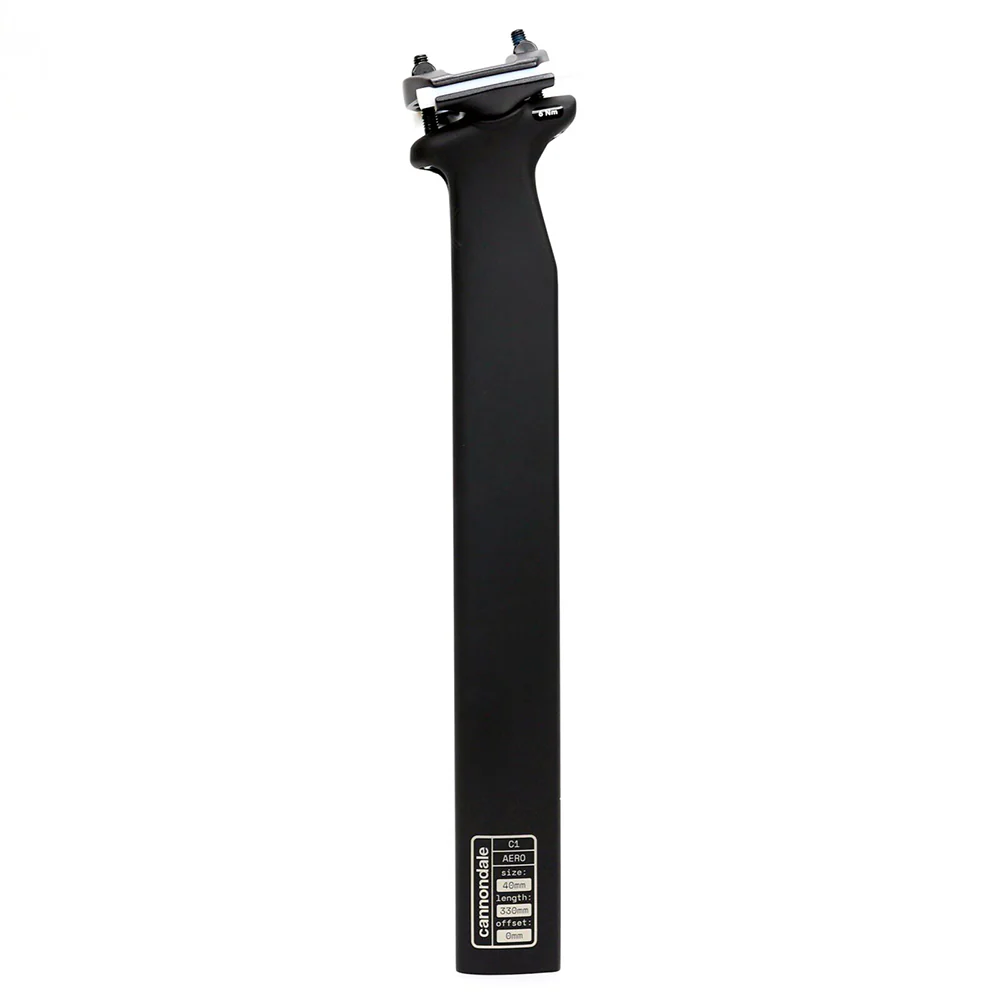

Seat Post - 0mm Offset: K26062, 20mm Offset: K26072, Seatbinder: K26002

Minimum Seat Post Insert - 65mm

Maximum Seat Post Insert - 44cm: 100mm, 48cm: 140mm, 51cm: 166mm, 54cm:190mm, 56cm: 193mm, 58cm: 205mm, 61cm: 215mm

Tyre Size x Maximum Tyre Width - 700c x 30mm (measured)

Brakes: Mount Type / Min / Max Rotor Diameter - FT: Flat Mount/140mm/160mm RR: Flat Mount/140mm/160mm

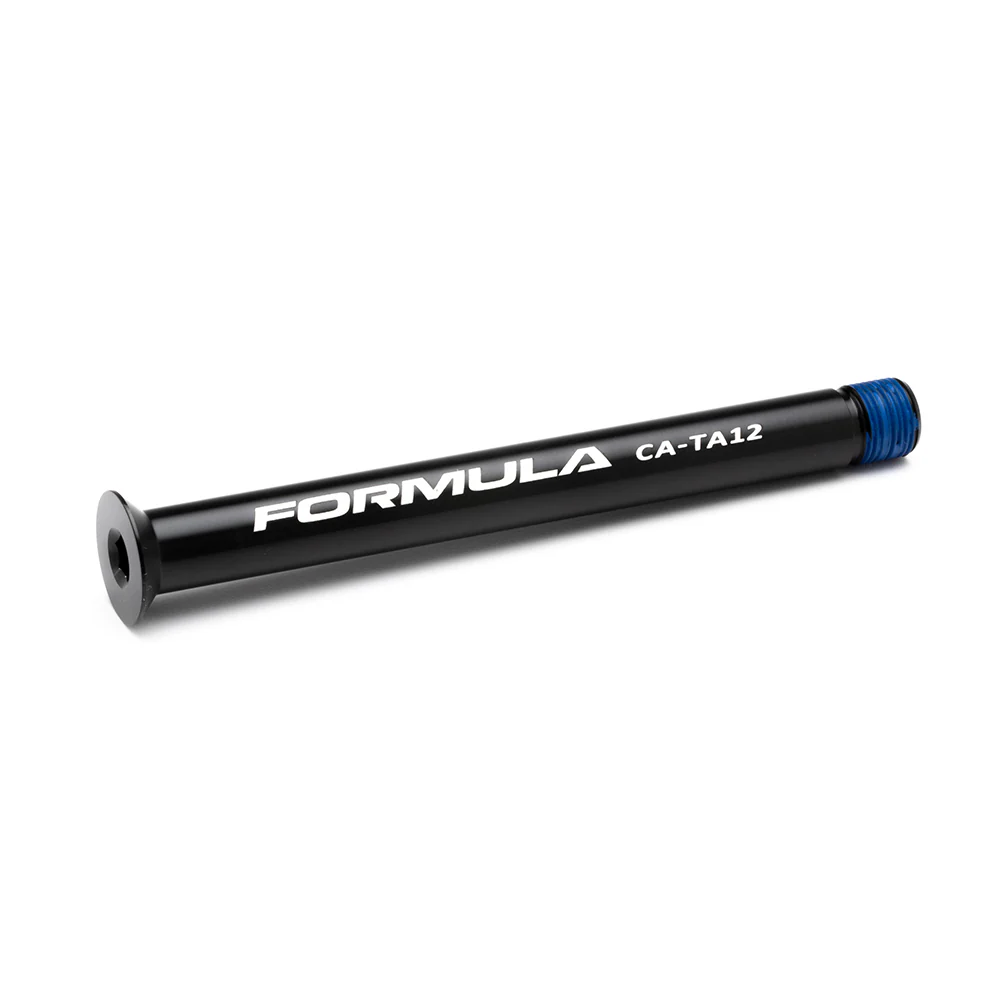

Axles: Type / Length -  FT: Syntace 100mmxM12x1.0P, 122mm Overall Length RR: Syntace 142mmxM12x1.0P, 160mm Overall Length

Fork Offset - Size 44cm-54cm: 55mm, Size 56cm-61cm: 45mm

Maximum Weight Limit: Total (Rider+All Equipment) - 129kg
