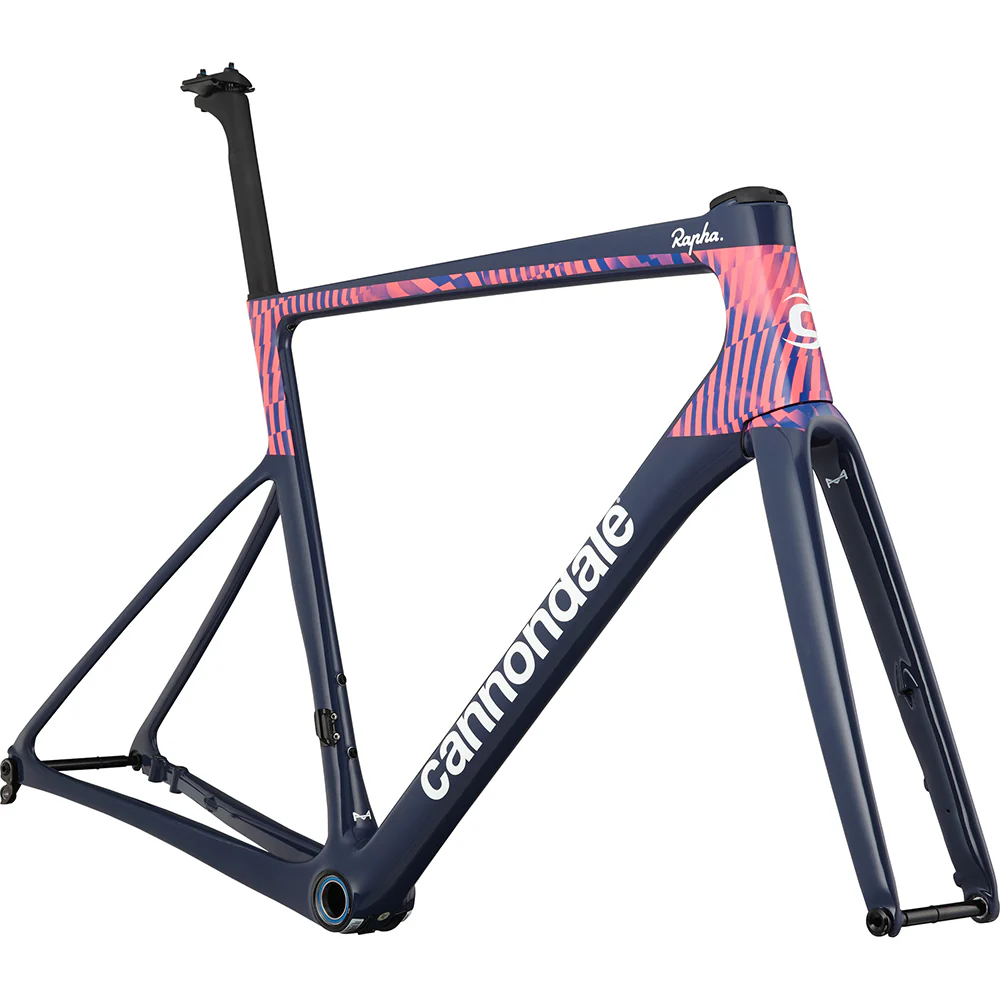

SuperSix EVO Spares 2020 - 2022
|

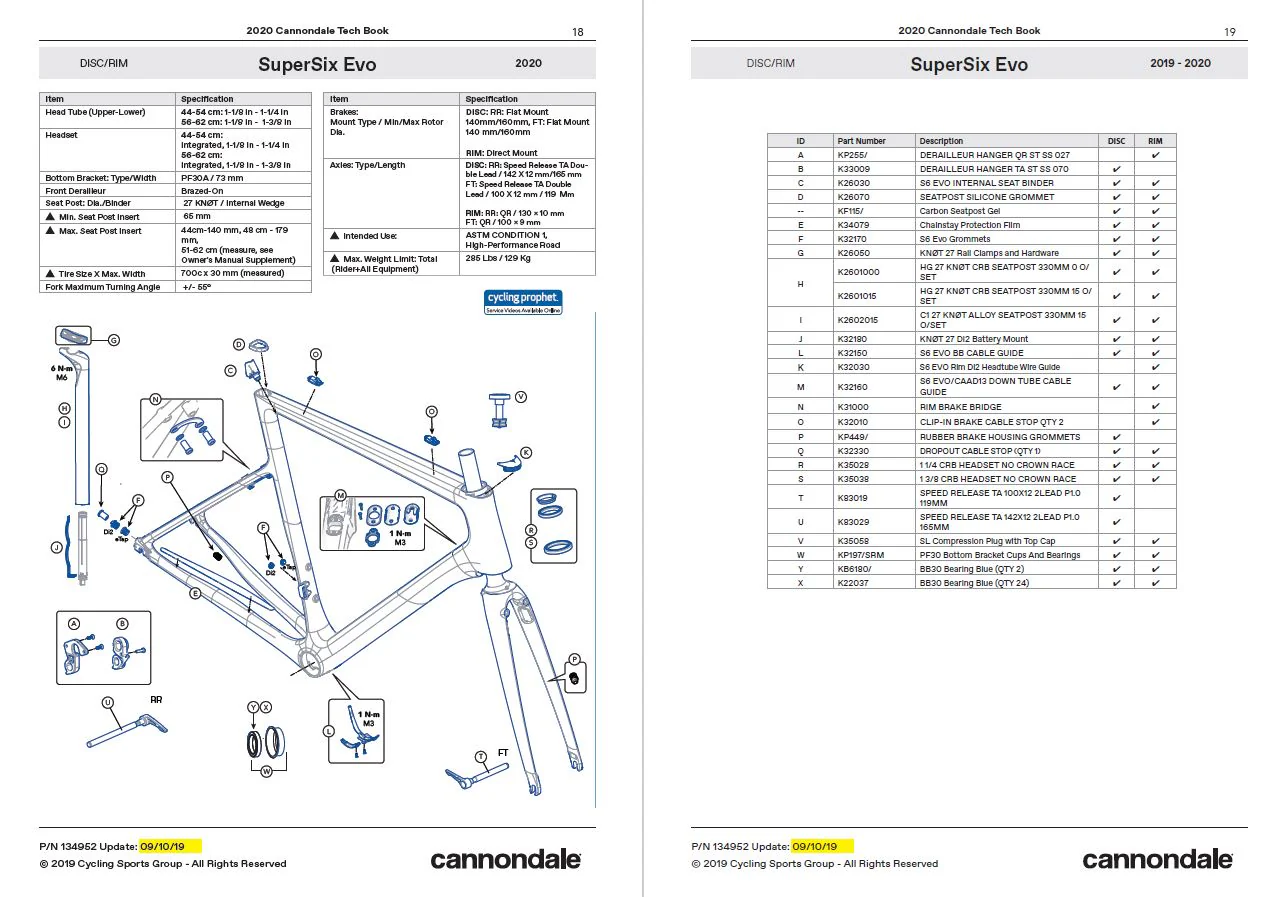

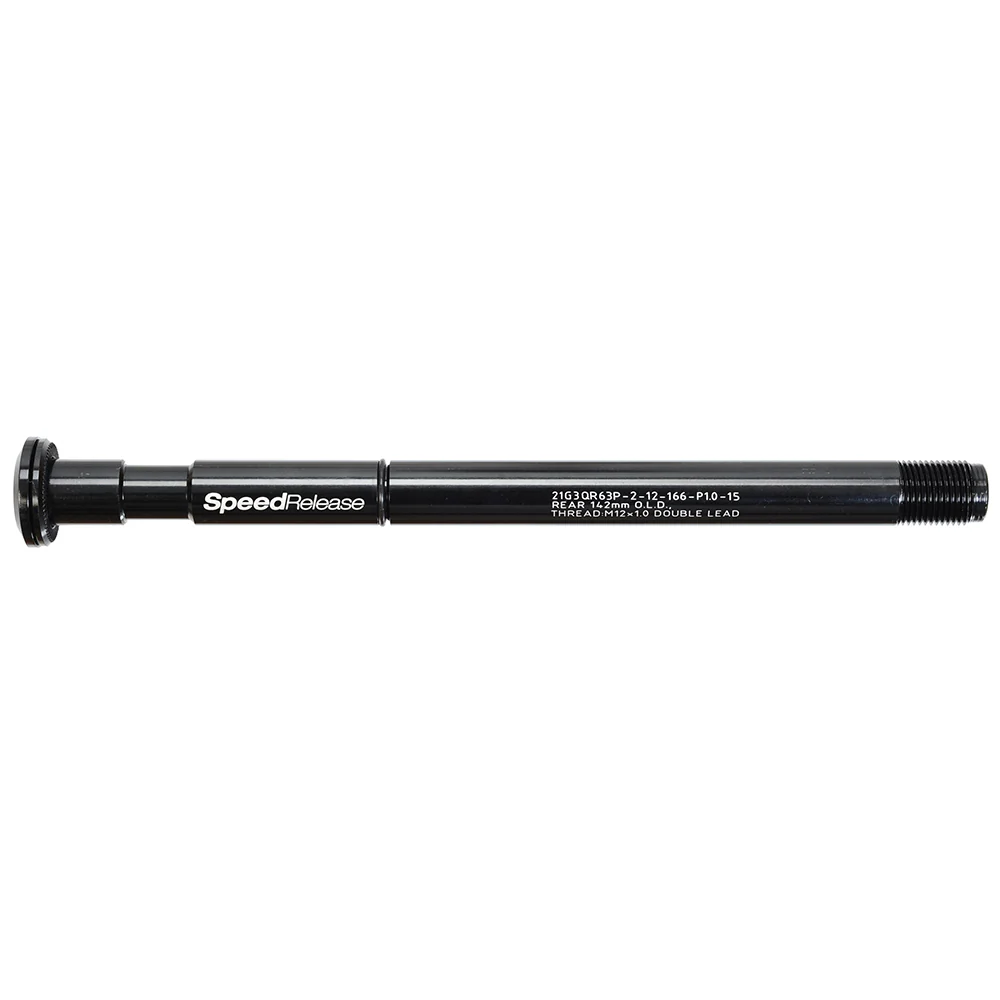

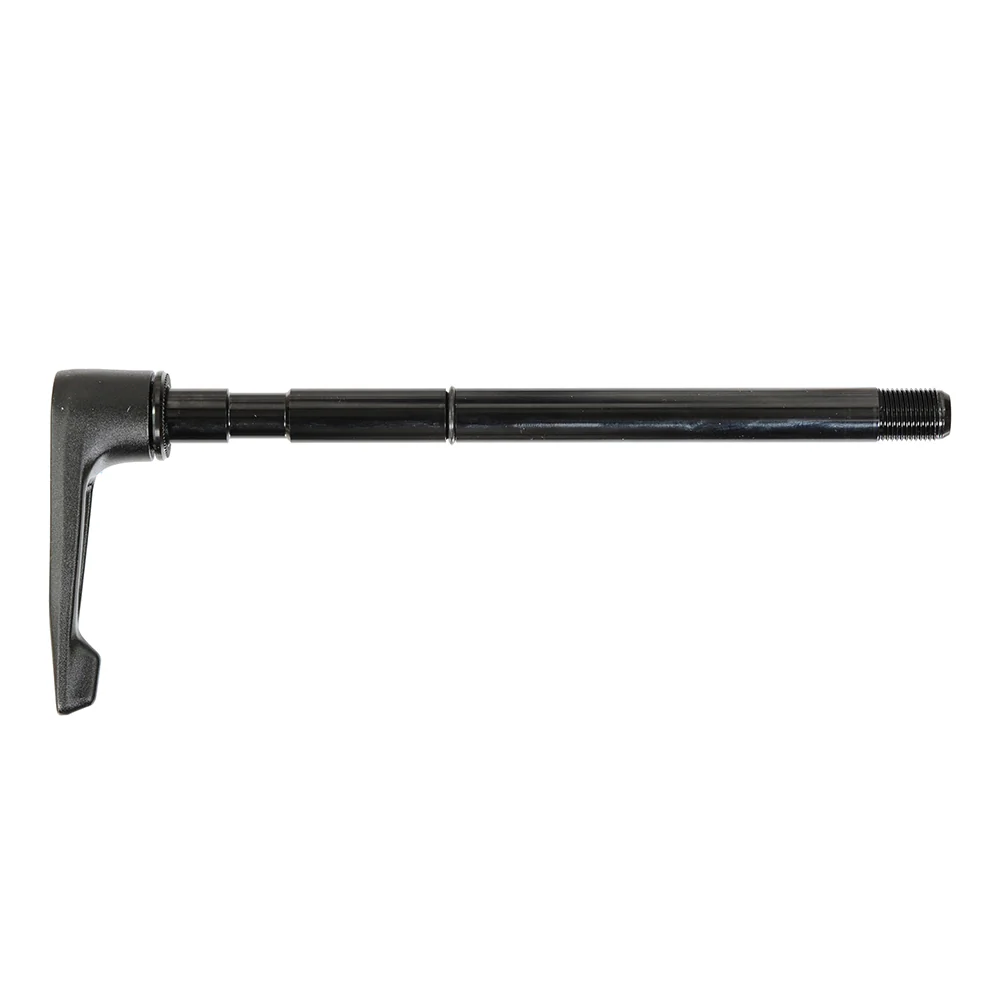

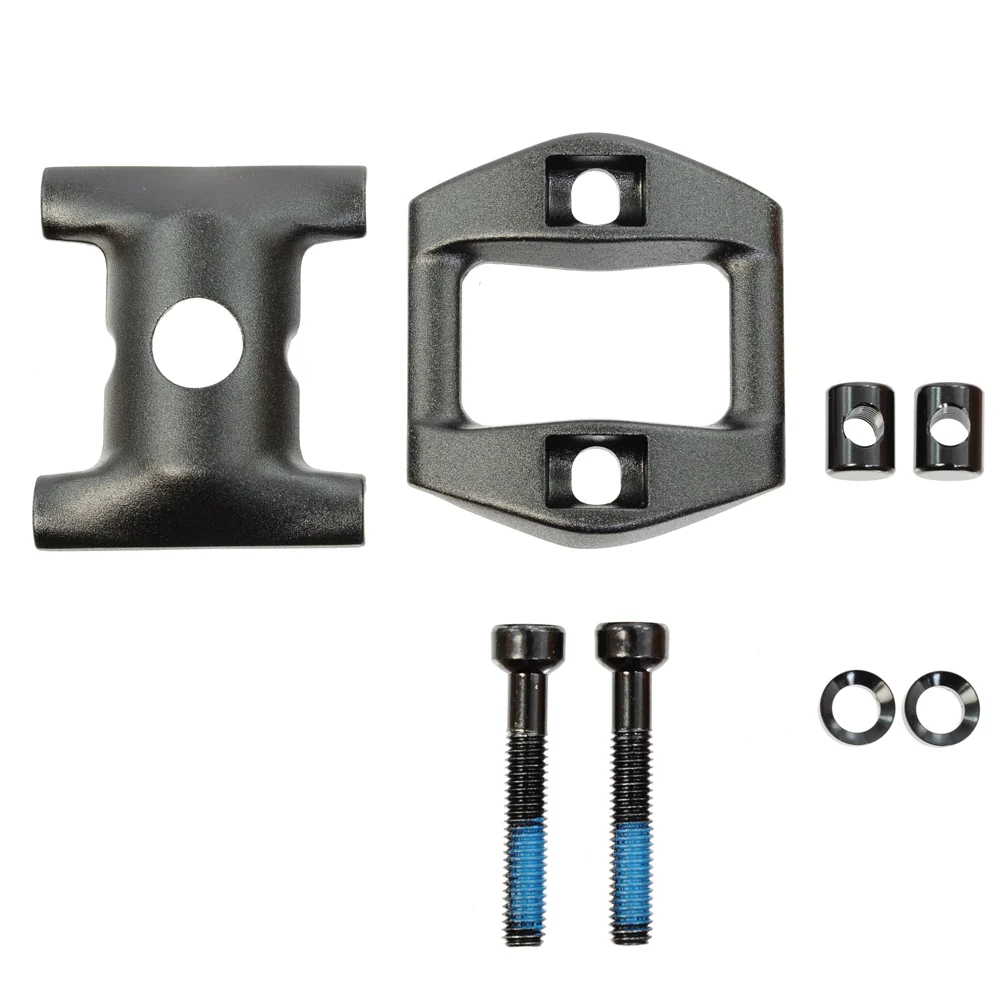

SUPERSIX EVO SPARES 2020 - 2022 SPECIFICATIONS Head Tube (Upper-Lower) -Ā 44-54 cm: 1-1/8 In - 1-1/4 In,Ā 56-62 cm: 1-1/8 In - 1-3/8 InHeadset - 44-54 cm: IS42 Top IS47 Bottom 45/45,Ā 56-62 cm: IS42 Top IS49 Bottom 45/45 Bottom Bracket: Type / Width -Ā PF30A / 73 mm Front Derailleur -Ā Brazed-On Seat Post: Dia./Binder -Ā 27 KNĆT / Internal Wedge Minimum Seat Post Insert -Ā 65 mm Maximum Seat Post Insert -Ā 44cm-140 mm, 48 cm - 179 mm, 51-62 cm (measure, see Owner's Manual Supplement) Tyre Size x Maximum Width -Ā 700c x 30 mm (measured) Fork Maximum Turning Angle -Ā +/- 55Ā° Brakes: Mount Type / Min / Max Rotor Diameter -Ā DISC:Ā RR: Flat MountĀ 140mm/160mm, FT: Flat Mount 140mm/160mmĀ RIM:Ā Direct Mount Axles: Type / Length - DISC: RR: Speed Release TA Double Lead / 142x12mmx1.0P/165 mm FT: Speed Release TA Double Lead / 100x12mmx1.0P / 119 mm Maximum Weight Limit: Total (Rider+All Equipment) -Ā 129kg |
Ā |
Ā |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
SuperSix EVO Spares 2020 - 2022
SuperSix EVO Spares 2020 - 2022
|
SUPERSIX EVO SPARES 2020 - 2022 SPECIFICATIONS Head Tube (Upper-Lower) -Ā 44-54 cm: 1-1/8 In - 1-1/4 In,Ā 56-62 cm: 1-1/8 In - 1-3/8 InHeadset - 44-54 cm: IS42 Top IS47 Bottom 45/45,Ā 56-62 cm: IS42 Top IS49 Bottom 45/45 Bottom Bracket: Type / Width -Ā PF30A / 73 mm Front Derailleur -Ā Brazed-On Seat Post: Dia./Binder -Ā 27 KNĆT / Internal Wedge Minimum Seat Post Insert -Ā 65 mm Maximum Seat Post Insert -Ā 44cm-140 mm, 48 cm - 179 mm, 51-62 cm (measure, see Owner's Manual Supplement) Tyre Size x Maximum Width -Ā 700c x 30 mm (measured) Fork Maximum Turning Angle -Ā +/- 55Ā° Brakes: Mount Type / Min / Max Rotor Diameter -Ā DISC:Ā RR: Flat MountĀ 140mm/160mm, FT: Flat Mount 140mm/160mmĀ RIM:Ā Direct Mount Axles: Type / Length - DISC: RR: Speed Release TA Double Lead / 142x12mmx1.0P/165 mm FT: Speed Release TA Double Lead / 100x12mmx1.0P / 119 mm Maximum Weight Limit: Total (Rider+All Equipment) -Ā 129kg |
Ā |
Ā |
Select Stock Item
From $1.62
Original: $4.64
-65%SuperSix EVO Spares 2020 - 2022ā
$4.64
$1.62Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
|

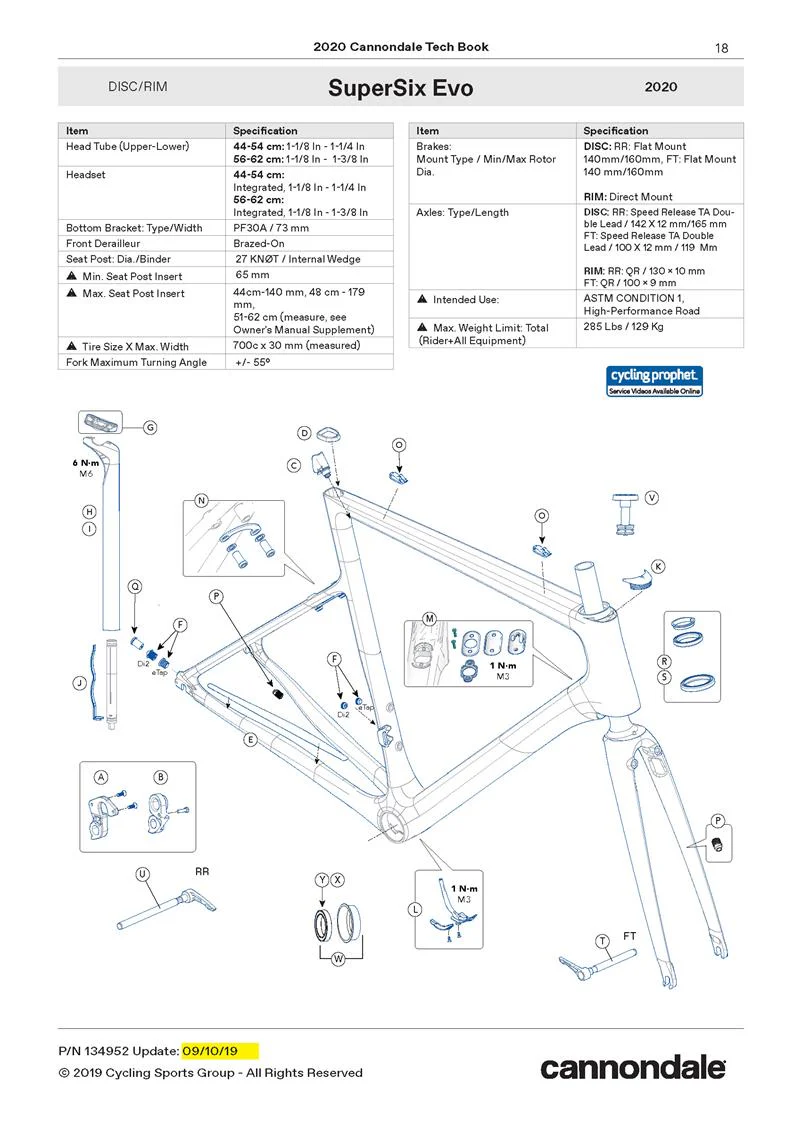

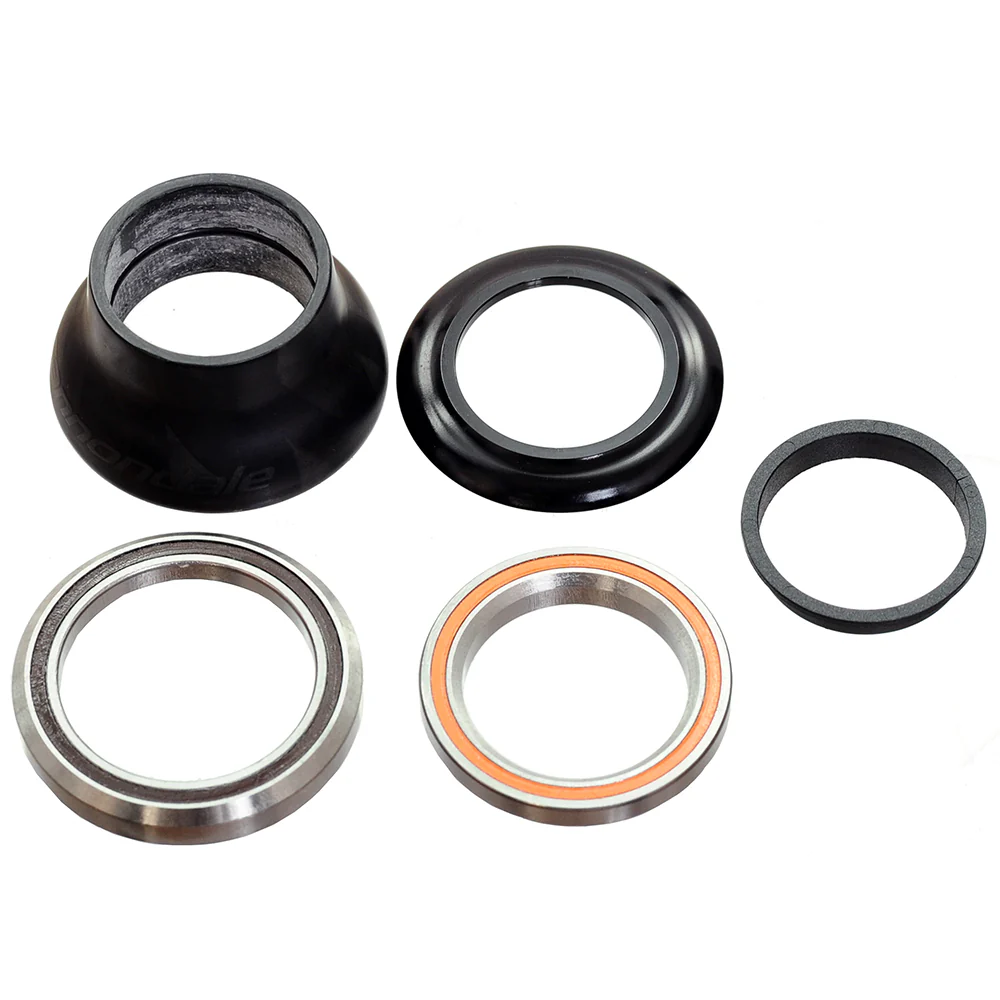

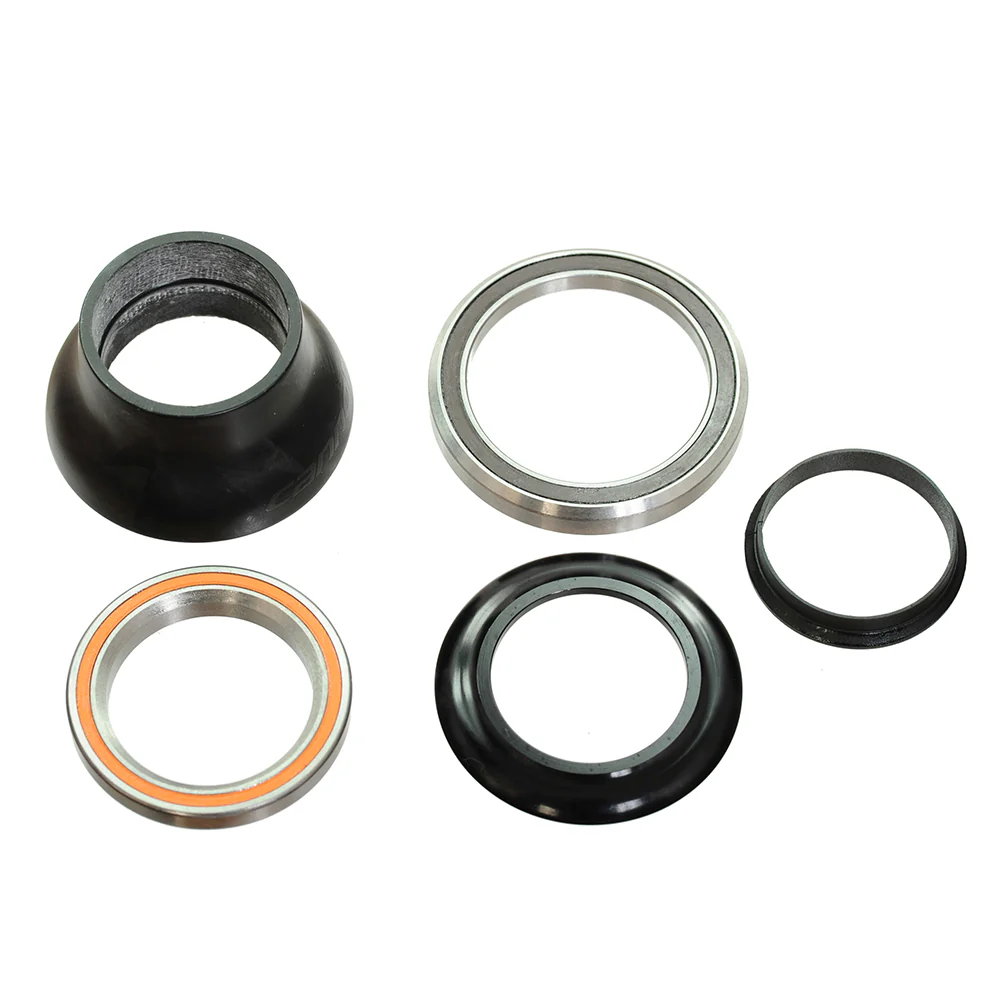

SUPERSIX EVO SPARES 2020 - 2022 SPECIFICATIONS Head Tube (Upper-Lower) -Ā 44-54 cm: 1-1/8 In - 1-1/4 In,Ā 56-62 cm: 1-1/8 In - 1-3/8 InHeadset - 44-54 cm: IS42 Top IS47 Bottom 45/45,Ā 56-62 cm: IS42 Top IS49 Bottom 45/45 Bottom Bracket: Type / Width -Ā PF30A / 73 mm Front Derailleur -Ā Brazed-On Seat Post: Dia./Binder -Ā 27 KNĆT / Internal Wedge Minimum Seat Post Insert -Ā 65 mm Maximum Seat Post Insert -Ā 44cm-140 mm, 48 cm - 179 mm, 51-62 cm (measure, see Owner's Manual Supplement) Tyre Size x Maximum Width -Ā 700c x 30 mm (measured) Fork Maximum Turning Angle -Ā +/- 55Ā° Brakes: Mount Type / Min / Max Rotor Diameter -Ā DISC:Ā RR: Flat MountĀ 140mm/160mm, FT: Flat Mount 140mm/160mmĀ RIM:Ā Direct Mount Axles: Type / Length - DISC: RR: Speed Release TA Double Lead / 142x12mmx1.0P/165 mm FT: Speed Release TA Double Lead / 100x12mmx1.0P / 119 mm Maximum Weight Limit: Total (Rider+All Equipment) -Ā 129kg |
