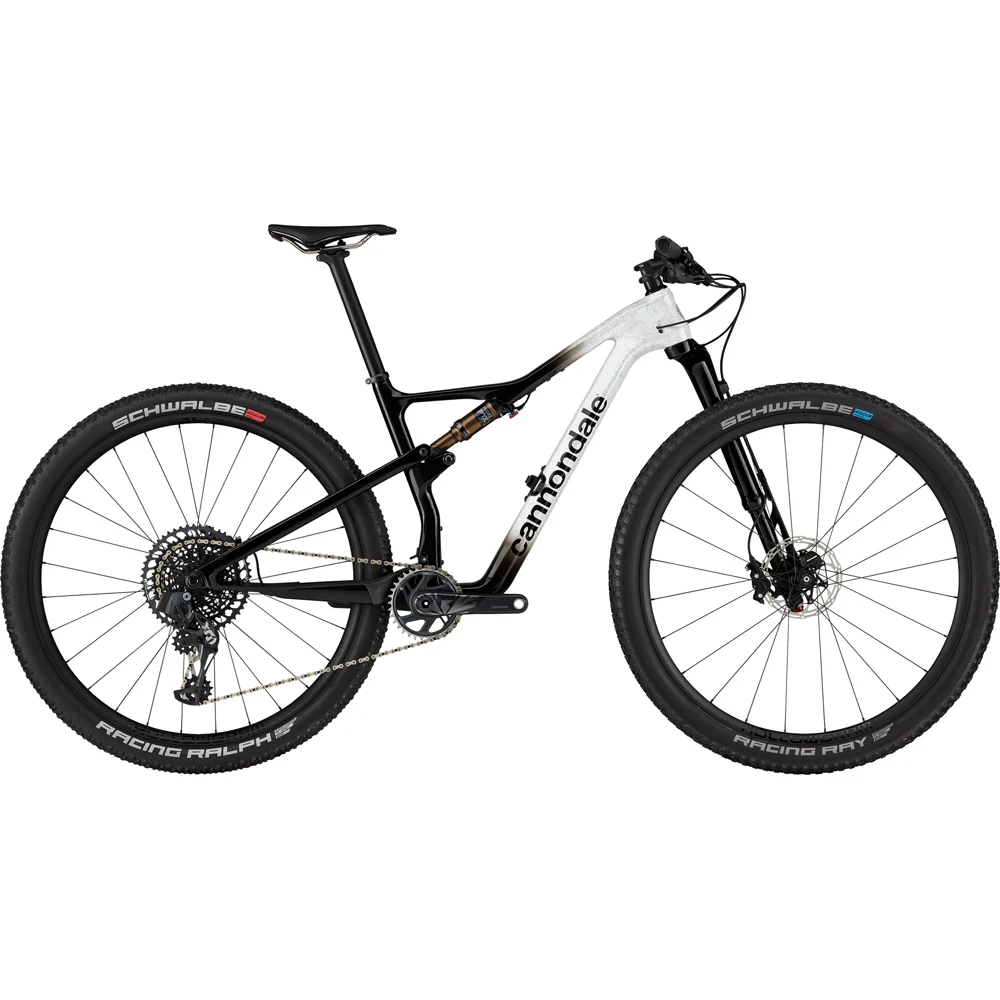

Scalpel Spares 2021 - 2024
|

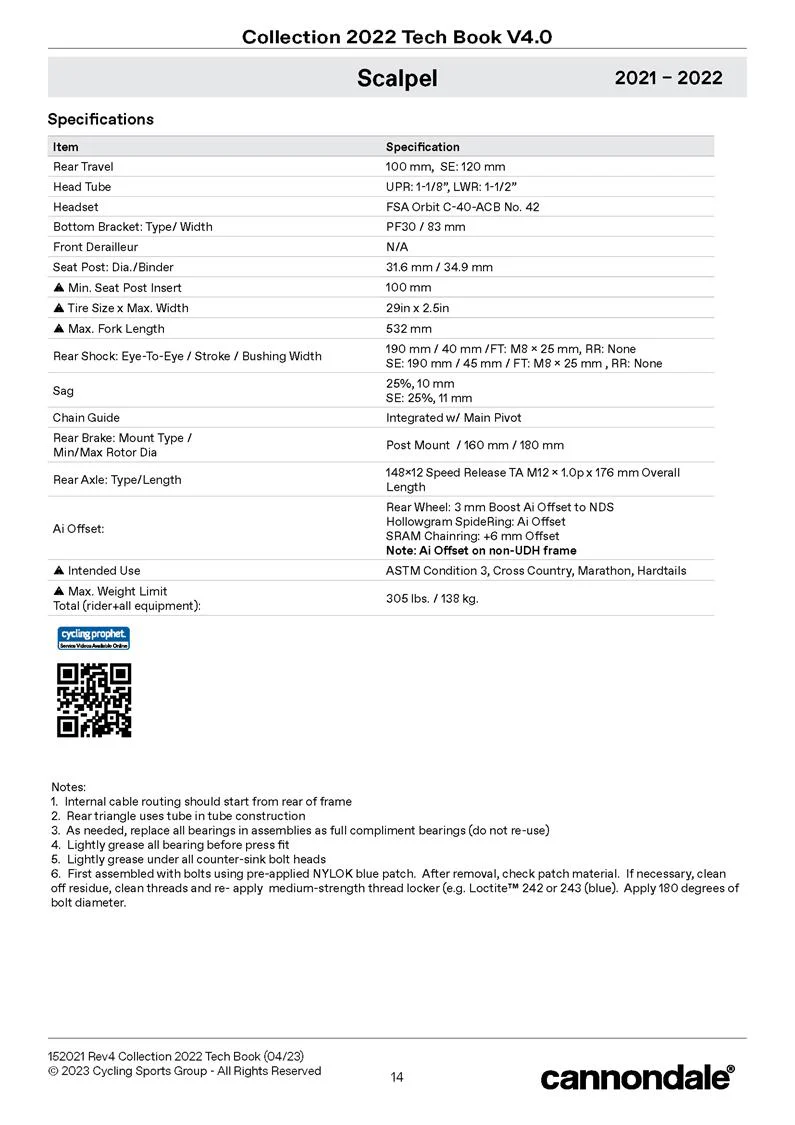

CANNONDALE SCALPEL SPARES 2021 - 2024 SPECIFICATIONS Rear TravelĀ -Ā 100mm, SE: 120mm Head TubeĀ -Ā UPR: 1-1/8ā, LWR: 1-1/2ā HeadsetĀ -Ā FSA Orbit C-40-ACB No. 42 Bottom Bracket: Type / Width -Ā PF30 / 83 mm Front DerailleurĀ -Ā N/A Seat Post: Dia./BinderĀ -Ā 31.6mm / 34.9mm Min. Seat Post Insert -Ā 100 mm Tire Size x Maximum Width -Ā 29in x 2.5in Maximum Fork Length -Ā 532mm Rear Shock: Eye-to-Eye / Stroke / Bushing Width -Ā 190 mm / 40 mm /FT: M8 x 25 mm, RR: None, SE: 190 mm / 45 mm / FT: M8 x 25 mm , RR: None Sag -Ā 25%, 10 mm, SE: 25%, 11 mm Chain Guide -Ā Integrated w/ Main Pivot Rear Brake: Mount Type / Min / Max Rotor Diameter -Ā Post Mount / 160 mm / 180 mm Axles: Type / LengthĀ -Ā 148x12 Speed Release TA M12 x 1.0p x 176 mm Overall Length Axles: Type / LengthĀ -Ā Rear Wheel: 3 mm Boost Ai Offset to NDS, Hollowgram SpideRing: Ai Offset, SRAM Chainring: +6 mm Offset. Note: Ai Offset on non-UDH frame Maximum Weight Limit: TotalĀ - 138kg |
Ā |
Ā |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Scalpel Spares 2021 - 2024
Scalpel Spares 2021 - 2024
|
CANNONDALE SCALPEL SPARES 2021 - 2024 SPECIFICATIONS Rear TravelĀ -Ā 100mm, SE: 120mm Head TubeĀ -Ā UPR: 1-1/8ā, LWR: 1-1/2ā HeadsetĀ -Ā FSA Orbit C-40-ACB No. 42 Bottom Bracket: Type / Width -Ā PF30 / 83 mm Front DerailleurĀ -Ā N/A Seat Post: Dia./BinderĀ -Ā 31.6mm / 34.9mm Min. Seat Post Insert -Ā 100 mm Tire Size x Maximum Width -Ā 29in x 2.5in Maximum Fork Length -Ā 532mm Rear Shock: Eye-to-Eye / Stroke / Bushing Width -Ā 190 mm / 40 mm /FT: M8 x 25 mm, RR: None, SE: 190 mm / 45 mm / FT: M8 x 25 mm , RR: None Sag -Ā 25%, 10 mm, SE: 25%, 11 mm Chain Guide -Ā Integrated w/ Main Pivot Rear Brake: Mount Type / Min / Max Rotor Diameter -Ā Post Mount / 160 mm / 180 mm Axles: Type / LengthĀ -Ā 148x12 Speed Release TA M12 x 1.0p x 176 mm Overall Length Axles: Type / LengthĀ -Ā Rear Wheel: 3 mm Boost Ai Offset to NDS, Hollowgram SpideRing: Ai Offset, SRAM Chainring: +6 mm Offset. Note: Ai Offset on non-UDH frame Maximum Weight Limit: TotalĀ - 138kg |
Ā |
Ā |
Original: $5.23
-65%$5.23
$1.83Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
|
CANNONDALE SCALPEL SPARES 2021 - 2024 SPECIFICATIONS Rear TravelĀ -Ā 100mm, SE: 120mm Head TubeĀ -Ā UPR: 1-1/8ā, LWR: 1-1/2ā HeadsetĀ -Ā FSA Orbit C-40-ACB No. 42 Bottom Bracket: Type / Width -Ā PF30 / 83 mm Front DerailleurĀ -Ā N/A Seat Post: Dia./BinderĀ -Ā 31.6mm / 34.9mm Min. Seat Post Insert -Ā 100 mm Tire Size x Maximum Width -Ā 29in x 2.5in Maximum Fork Length -Ā 532mm Rear Shock: Eye-to-Eye / Stroke / Bushing Width -Ā 190 mm / 40 mm /FT: M8 x 25 mm, RR: None, SE: 190 mm / 45 mm / FT: M8 x 25 mm , RR: None Sag -Ā 25%, 10 mm, SE: 25%, 11 mm Chain Guide -Ā Integrated w/ Main Pivot Rear Brake: Mount Type / Min / Max Rotor Diameter -Ā Post Mount / 160 mm / 180 mm Axles: Type / LengthĀ -Ā 148x12 Speed Release TA M12 x 1.0p x 176 mm Overall Length Axles: Type / LengthĀ -Ā Rear Wheel: 3 mm Boost Ai Offset to NDS, Hollowgram SpideRing: Ai Offset, SRAM Chainring: +6 mm Offset. Note: Ai Offset on non-UDH frame Maximum Weight Limit: TotalĀ - 138kg |
