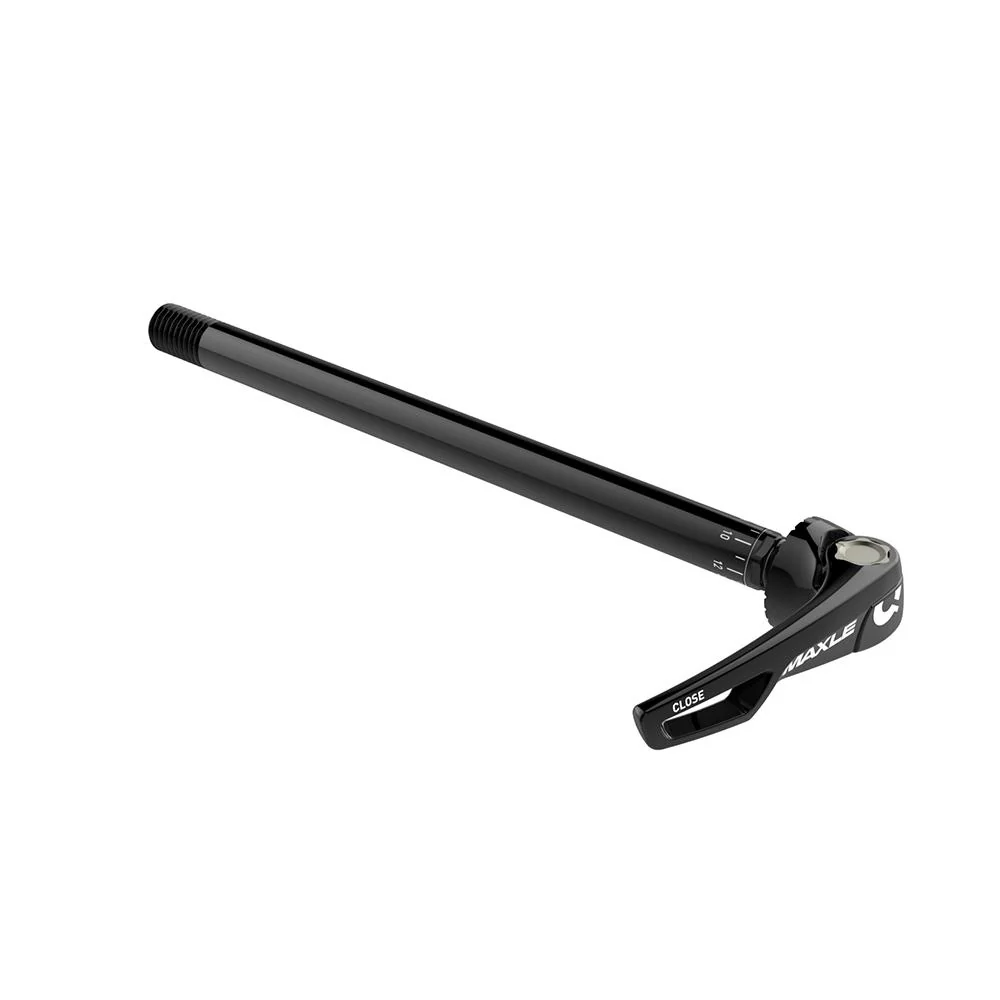

ROCKSHOX MAXLE ULTIMATE REAR AXLES

Basic things like axles are often the easiest to overlook. Put one hand on the Maxle Ultimate, though, and you’ll be glad we paid serious attention to the finer details. Because one hand is all it takes to remove or install the Maxle Ultimate. And lever-placement personalization is accomplished completely without the use of tools. Available for both front and rear, Maxle Ultimate is the easiest-to-operate axle system in the world. No tools, no worries, so you can concentrate on the trail ahead.

• Internal Cam system
• High Clamping force
• Available in a variety of axle lengths

SPECIFICATIONS:

• Style Ultimate
• Lever Mechanism Internal Cam
• Hub Over Locknut Daimeter 12x135, 12x142, 12x148, 12x150, 12x177, 12x197
• Axle length/Thread Length 12 x 135(167/20mm), 12 x 142(174/20mm), 12 x 142(195/20mm - Split Pivot/Trek Custom), 12 x 148(180/20mm), 12 x 148(188/20mm -  Booster Compatible), 12 x 150(182/20mm), 12 x 177(217/20mm - Fat Bike Custom), 12 x 197(229/20mm - Fat Bike Custom)
• Orientation Rear
• Thread pitch M12 x 1.75 (12 x 197 = M12 x 1.5)
• Colour Black
