Ritchey Classic C220 Stem

Ritchey Classic C220 Stem

RITCHEY CLASSIC C220 STEM

You really can have it all—the new WCS C220 stem rivals the performance of theĀ revolutionary C260 stem design, but it’s quicker and easier to install and remove thanks to aĀ

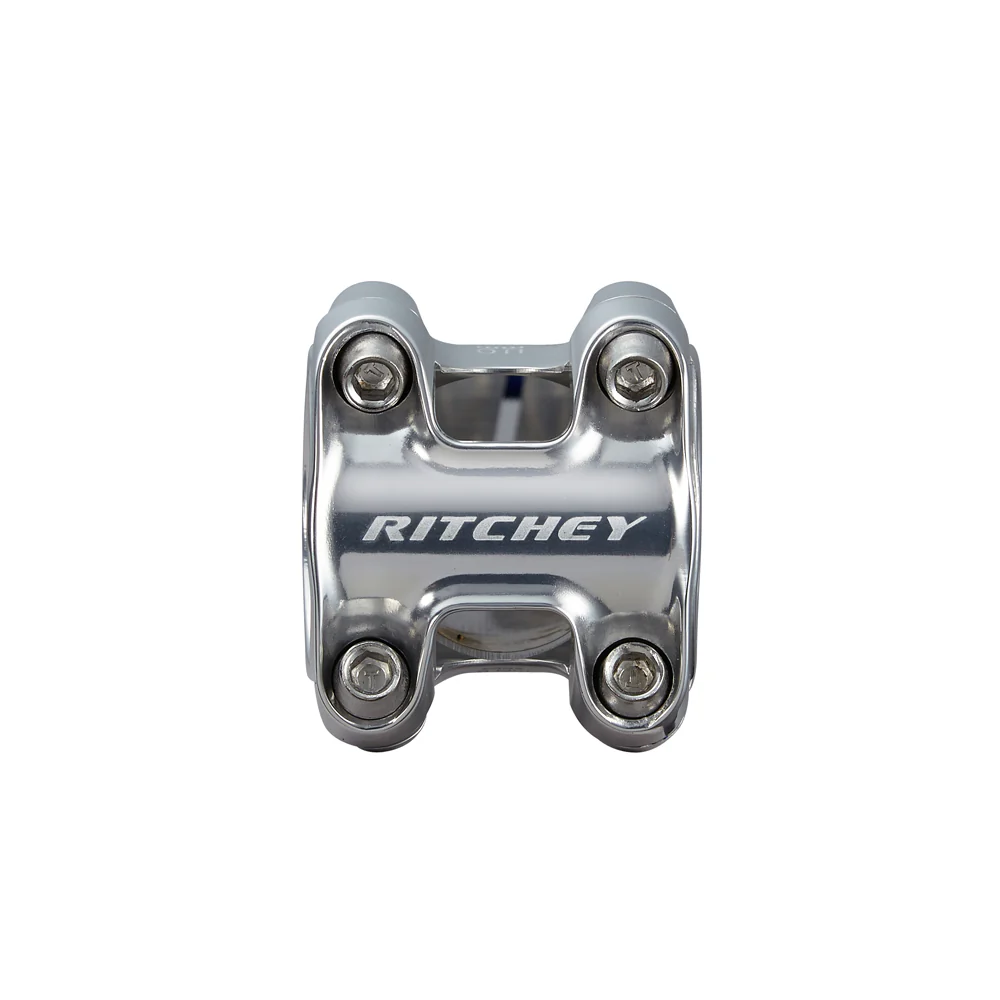

press-fit handlebar clamp interface and forward-facing hardware.Ā First proven on the Ritchey Trail stem, the C220 handlebar clamp design creates a moreĀ secure interface by wrapping a full 220 degrees over the handlebar. Bolt forces are alignedĀ with the clamp so that the stem body ā€˜embraces’ the handlebar, which is less prone toĀ damaging lightweight bars. This clamp design allows for a lighter faceplate and stem bodyĀ with no sacrifice in strength or stiffness.Ā The stem body is forged 2014 aluminum for further weight reduction. Premium quality CrMoĀ
steel bolts are used throughout

SPECIFICATIONS

Material 3D Forged 2014
Face Plate Width 42mm
Bolts M4 (Chromoly)
Steerer Height 45mm
Weight 121g
Colour Silver
Ā

FEATURES

  • 3D forged 2014 alloy body
  • 4 x 4mm coated CrMo steel forward-facing faceplate bolts
  • 2 x 4mm coated CrMo steel offset steer tube clamp bolts
  • 5Nm torque max on all hardware
  • Compatible with all 31.8 bars
  • Press-fit clamp design installs and removes like a standard stem

Ā

Select Stock Item
From $34.75

Original: $99.30

-65%
Ritchey Classic C220 Stem—

$99.30

$34.75

Product Information

Shipping & Returns

Description

RITCHEY CLASSIC C220 STEM

You really can have it all—the new WCS C220 stem rivals the performance of theĀ revolutionary C260 stem design, but it’s quicker and easier to install and remove thanks to aĀ
press-fit handlebar clamp interface and forward-facing hardware.Ā First proven on the Ritchey Trail stem, the C220 handlebar clamp design creates a moreĀ secure interface by wrapping a full 220 degrees over the handlebar. Bolt forces are alignedĀ with the clamp so that the stem body ā€˜embraces’ the handlebar, which is less prone toĀ damaging lightweight bars. This clamp design allows for a lighter faceplate and stem bodyĀ with no sacrifice in strength or stiffness.Ā The stem body is forged 2014 aluminum for further weight reduction. Premium quality CrMoĀ
steel bolts are used throughout

SPECIFICATIONS

Material 3D Forged 2014
Face Plate Width 42mm
Bolts M4 (Chromoly)
Steerer Height 45mm
Weight 121g
Colour Silver
Ā

FEATURES

  • 3D forged 2014 alloy body
  • 4 x 4mm coated CrMo steel forward-facing faceplate bolts
  • 2 x 4mm coated CrMo steel offset steer tube clamp bolts
  • 5Nm torque max on all hardware
  • Compatible with all 31.8 bars
  • Press-fit clamp design installs and removes like a standard stem

Ā
