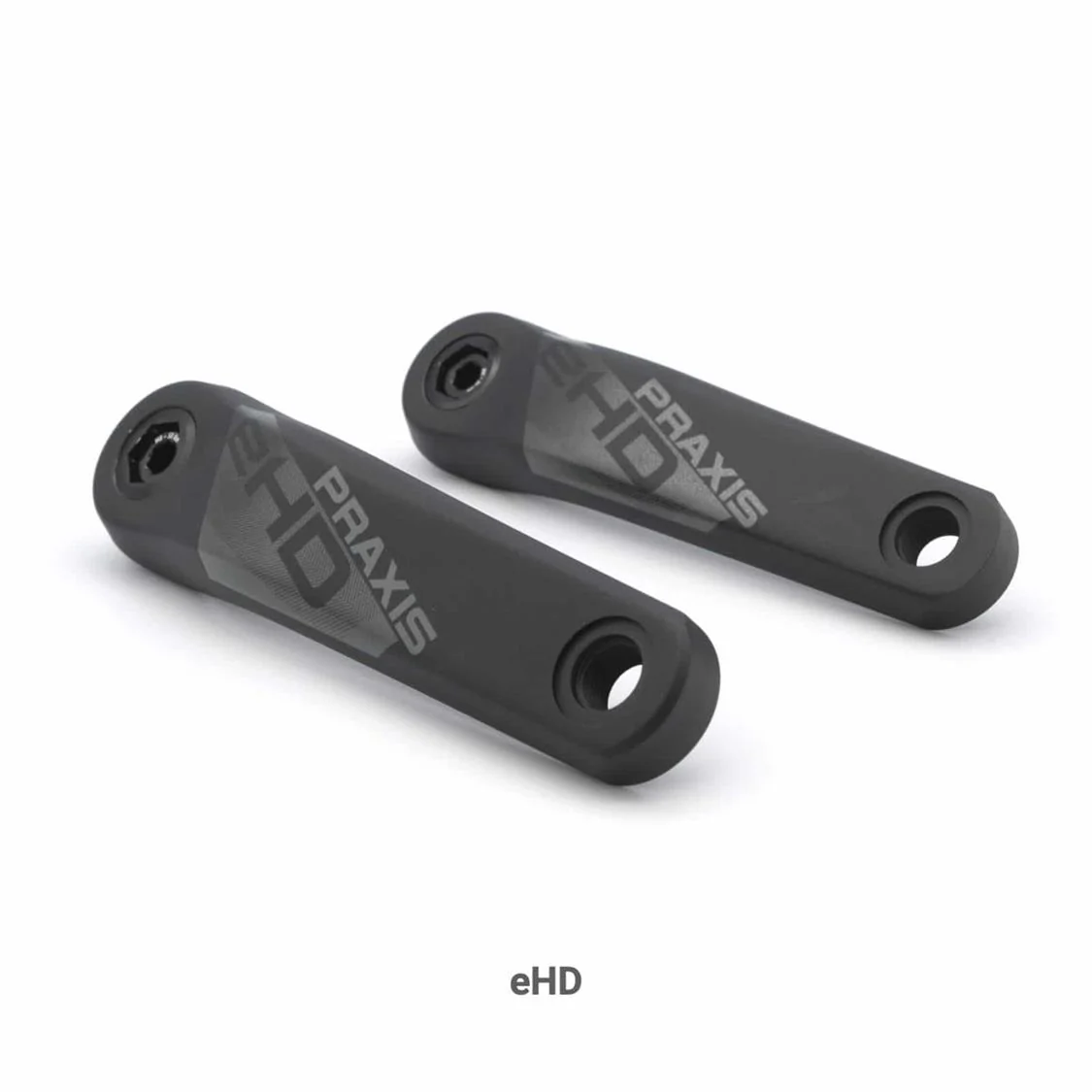

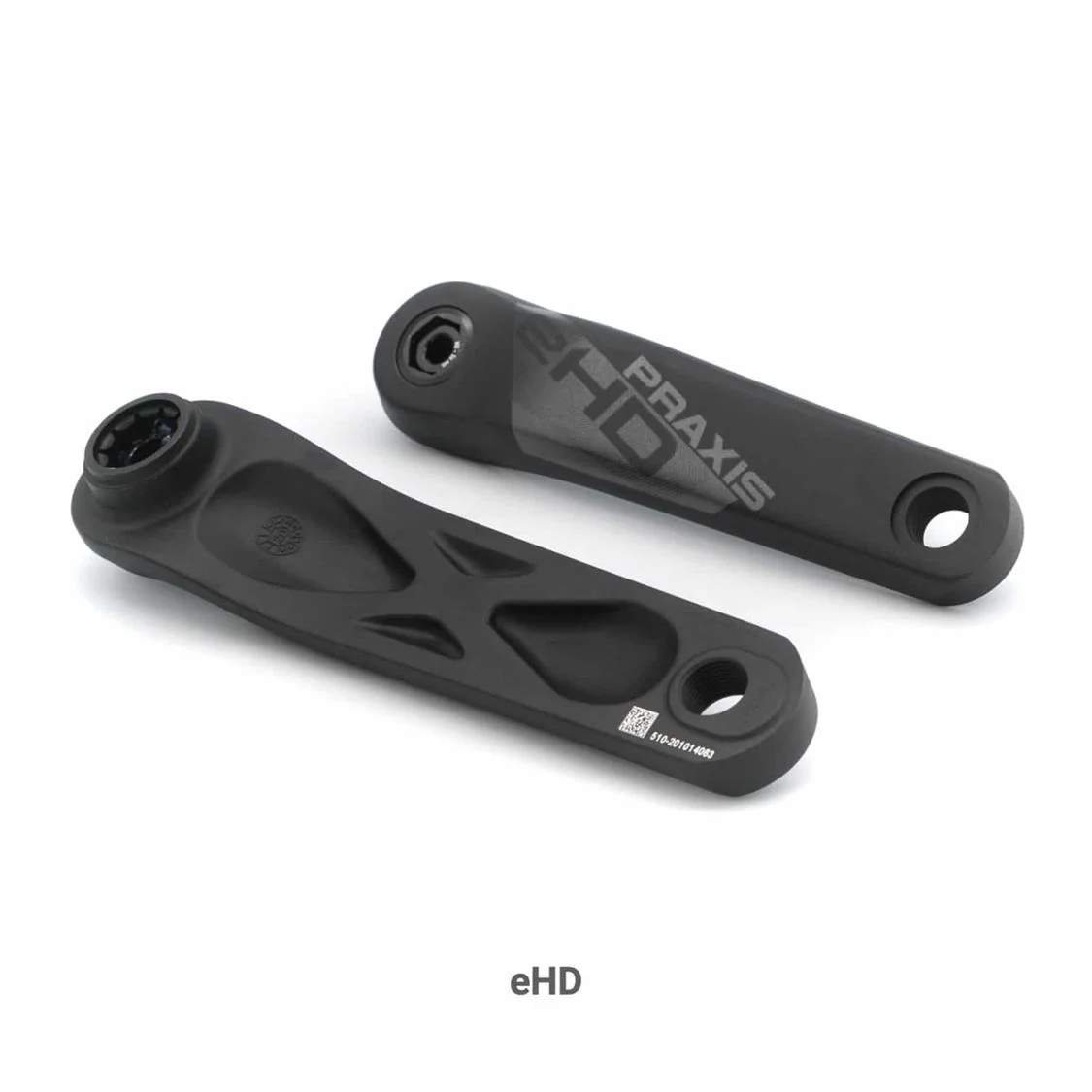

PRAXIS - TYPE 1 ALLOY HD E-BIKE CRANKS

Great aluminium forged options that are compatible with many e-Bike motors such as Bosch, Yamaha, Brose, Fazua and versions for Specialized ISIS motors.

• Alloy e-Cranks
• Cold forged aluminium

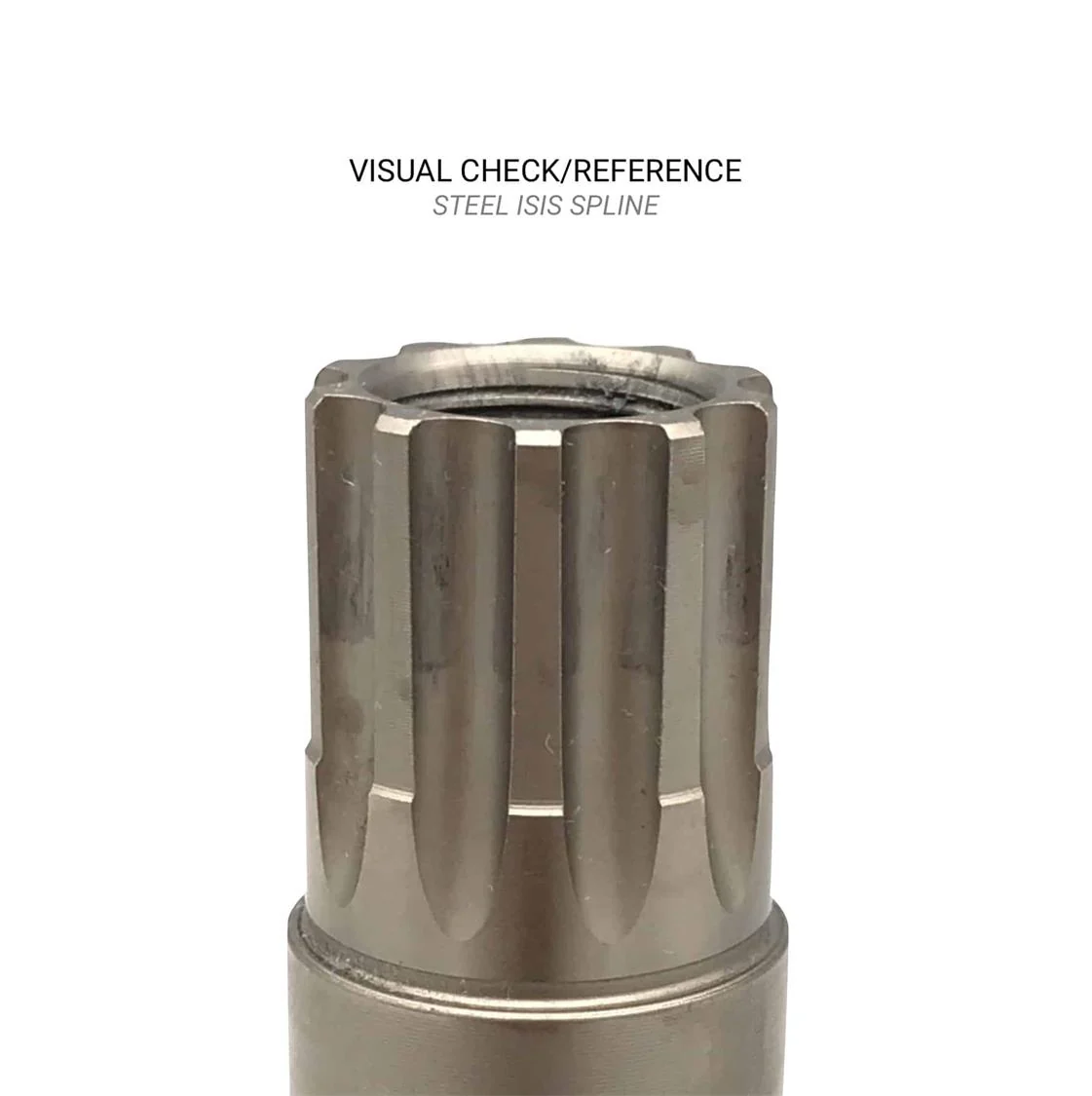

• Heavy Duty "HD" ISIS set – 160/165mm
• New HD Heavy Duty version for aggressive MTN riders

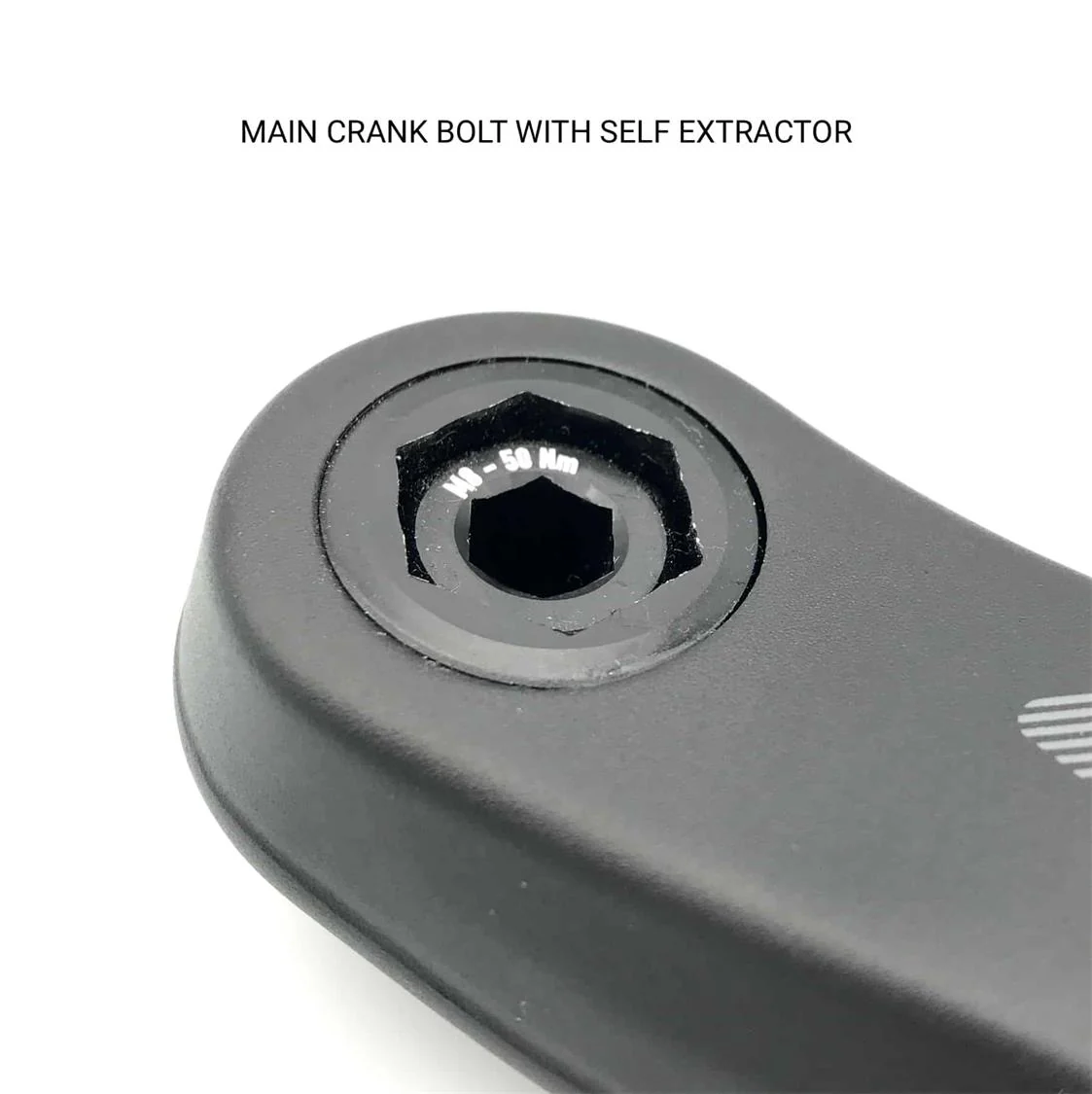

• AL main crank bolt with self-extractor | M24 Bolt for ISIS eCranks
• 8mm Allen wrench for install/removal of cranks | 50Nm torque
• HD Weight 558 grams +/-
• Note: Rubber crank boot protectors not included with alloy eCranks

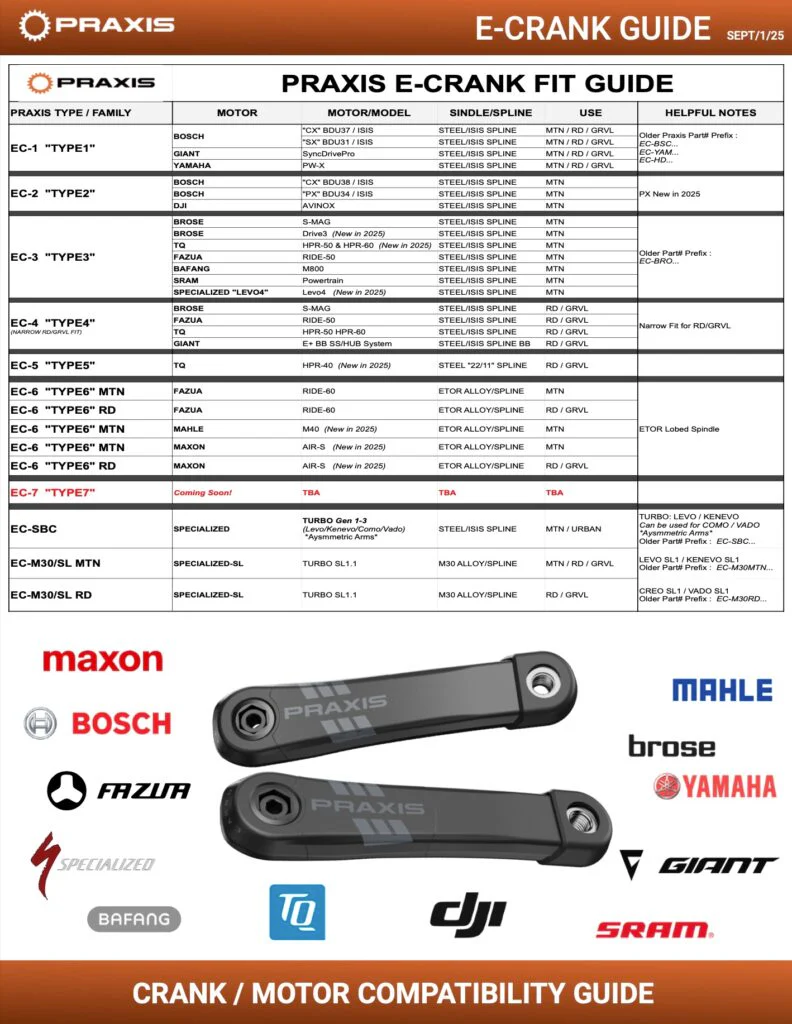

All e-Bike motors have different width spindles, and this directly affects the Q factor when the crank is installed. These are the Q factors when you install this crank on these motors:

• Standard & HD: 170mm Q when installed on Giant/Yamaha motor
• Standard & HD: 180mm Q when installed on BOSCH motor

Specialized "Levo/Kenevo" and "SL" cranks – Both sets are made specific for these bike/motors and have a 182mm Qfactor. **SPECIALIZED - Check your Specialized motor spindle type. Standard Levo/Kenevo/Como/Vado have an ISIS spindle. The "SL" Levo or Creo family use the M30/SL eCrank armsets.
