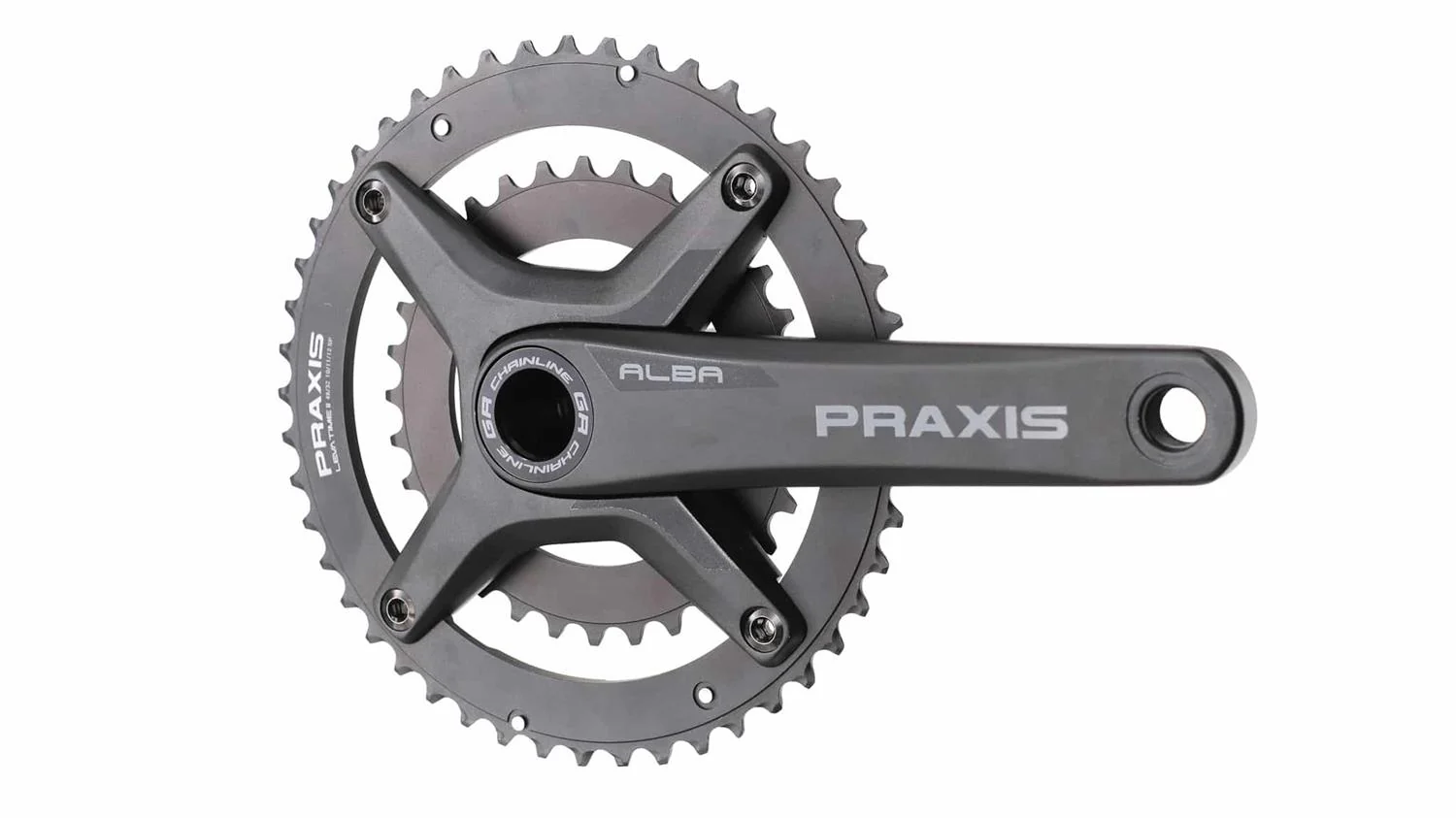

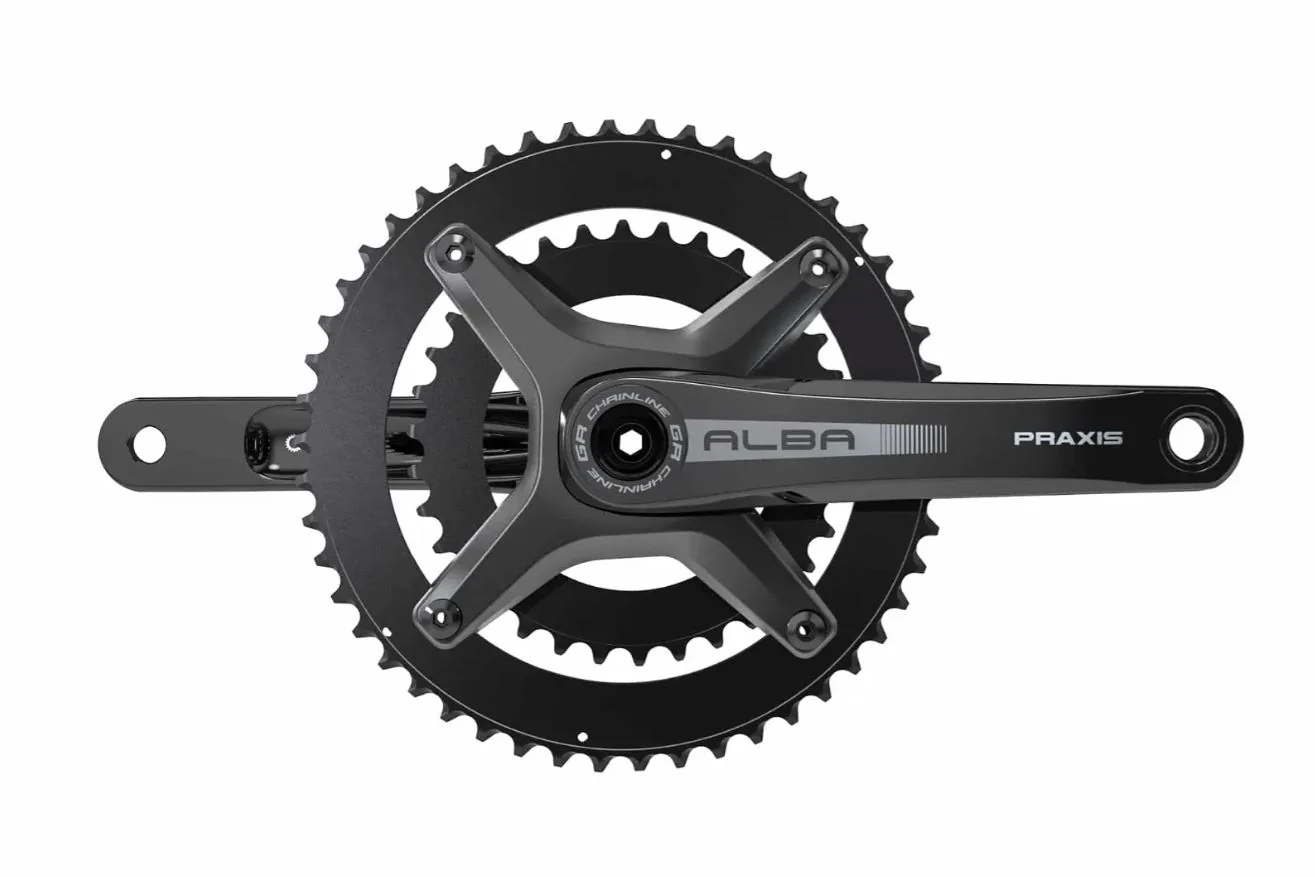

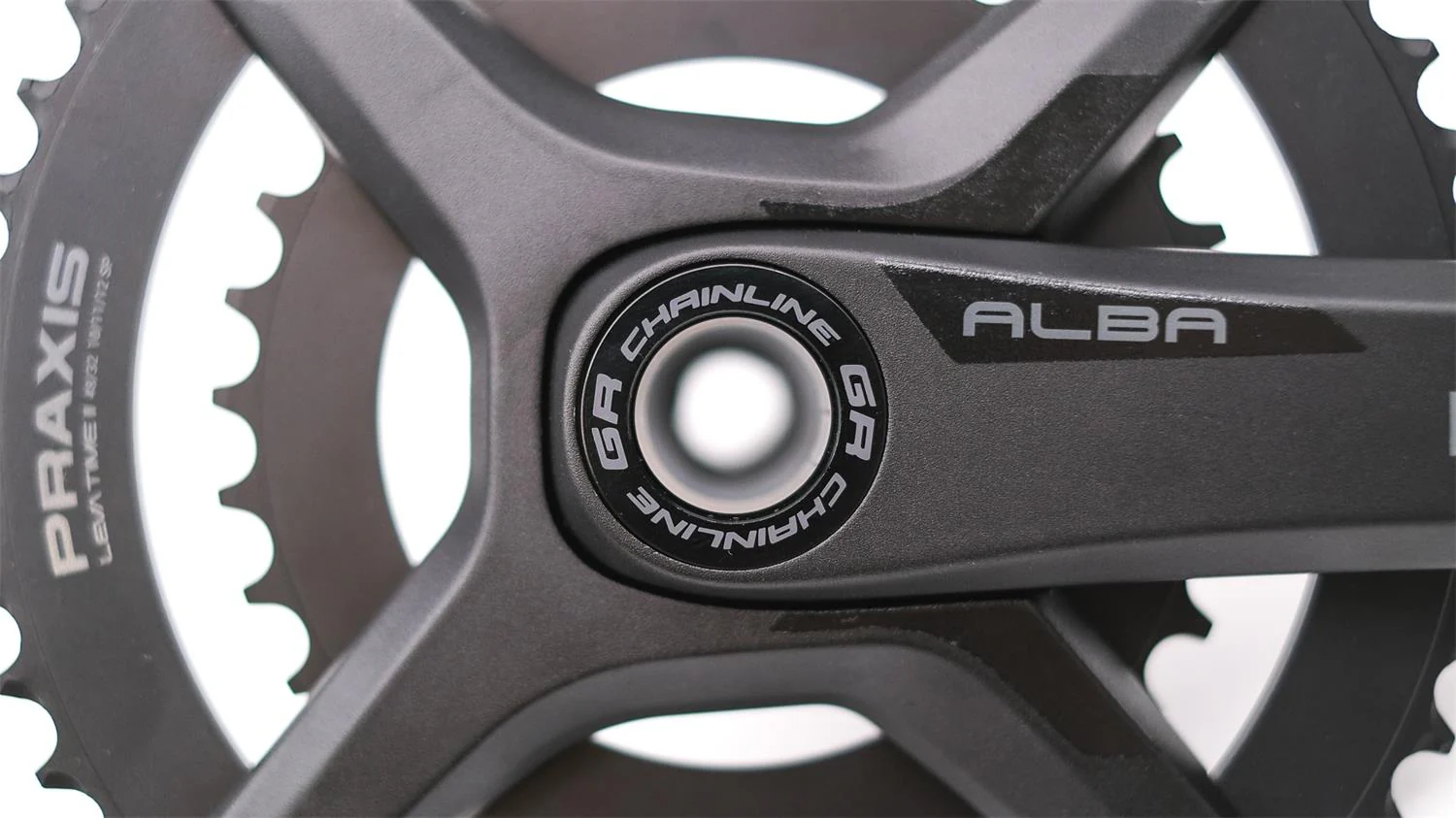

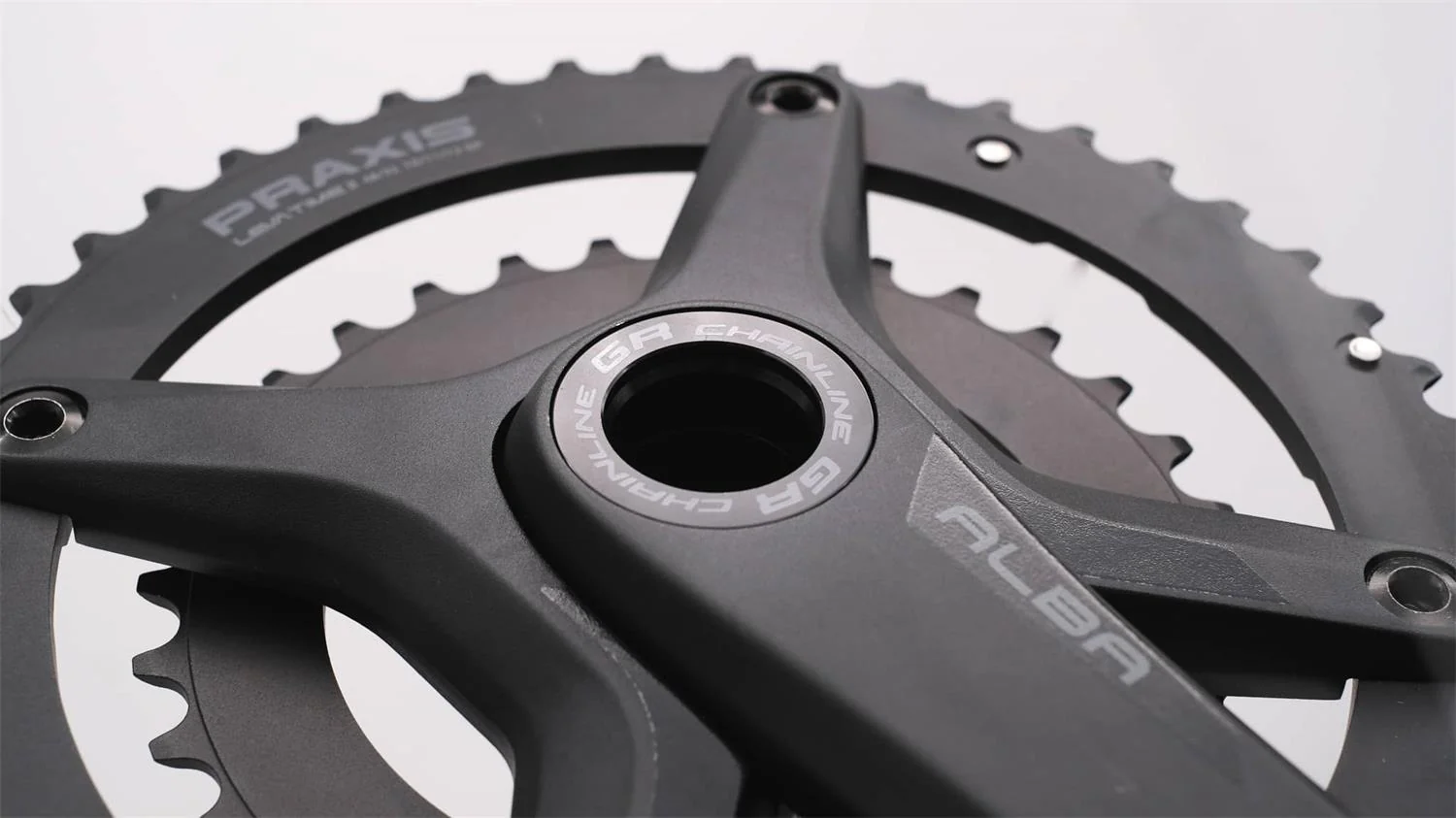

PRAXIS - ALBA GR M30 GRAVEL CRANKS



CRANK:              Forged alloy crankset specifically for Gravel 2X wider chainline and Front Derailleurs. See dropdown menu for offered options

BUY THIS IF:      You want a performance alloy road crank that is 10/11/12sp compatible with 2X Shimano GRX or the 2X SRAM Wide" gravel groups.

MATERIAL:         Forged Alloy | Alloy Spider & Rings | Alloy M30 spindle (30mm/28mm)

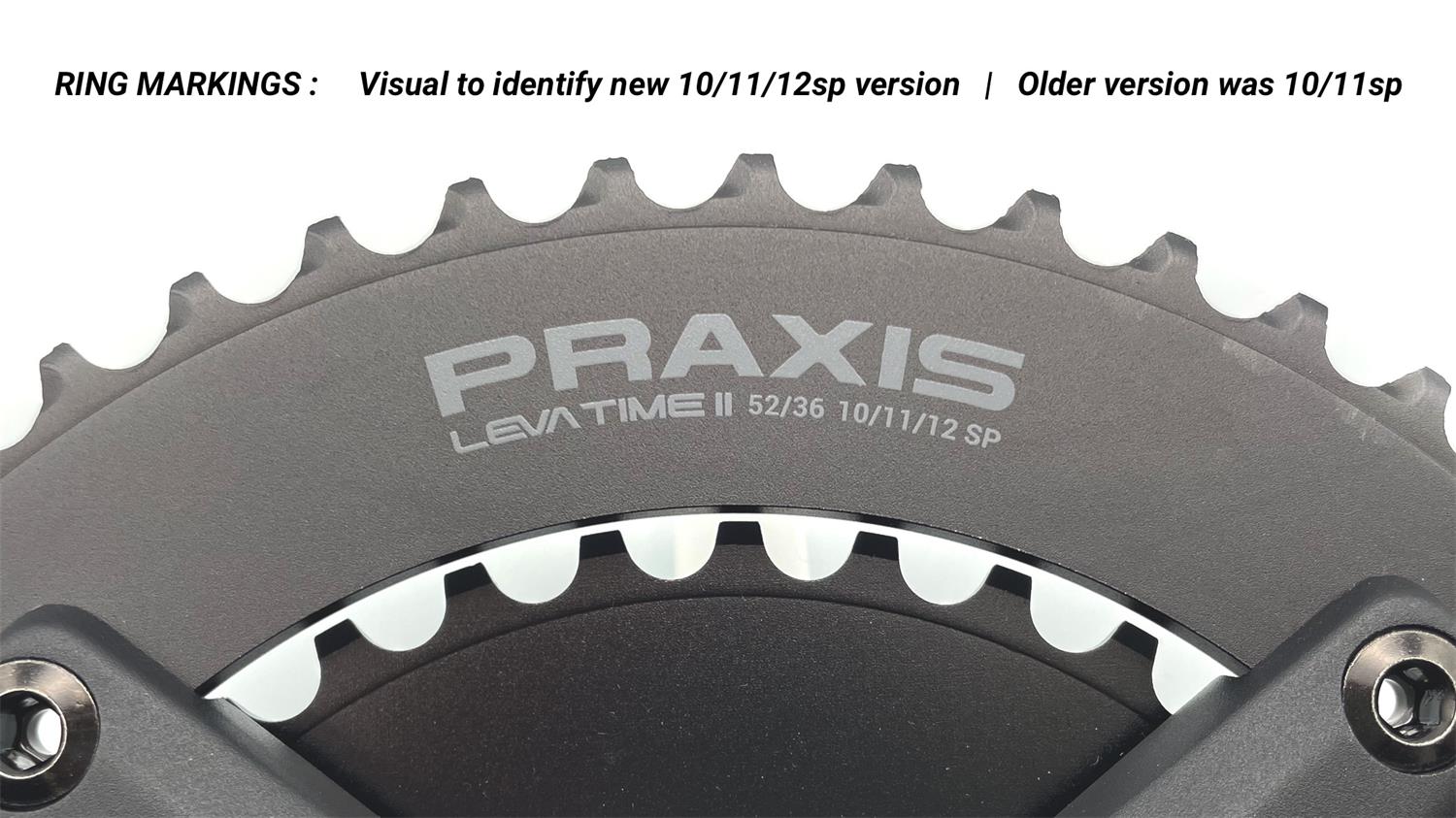

GEARING:          48/32 | Simplified Version of LevaTime II X-RINGS | w/Steel chainring bolts

CHAIN:               10/11/12sp | KMC / Shimano / SRAM

AVG. WEIGHT:   800g : 172.5 with 48/32

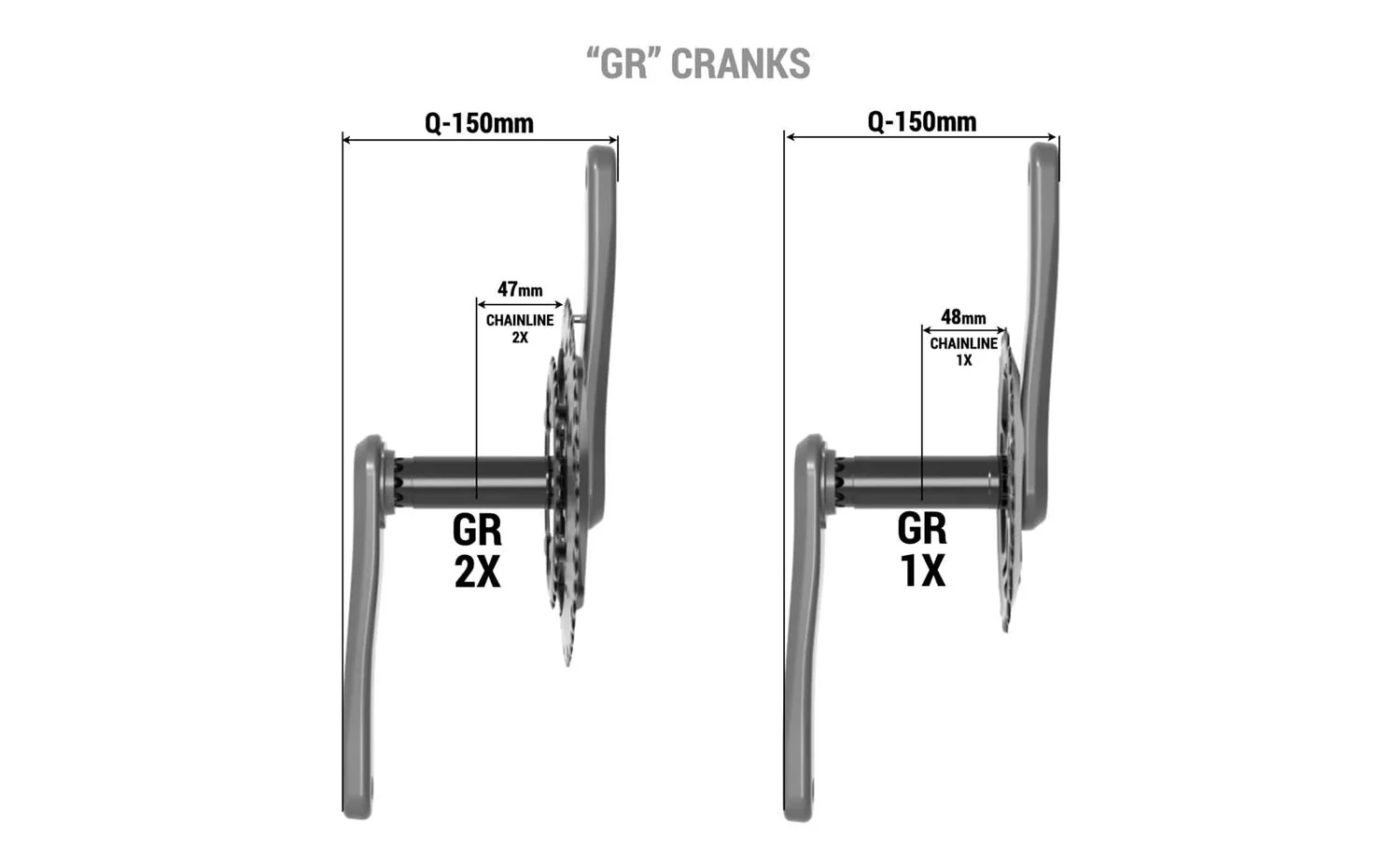

CHAINLINE:       2X = 47mm GRAVEL, Made specificaly for use with Shimano 2X "GRX" and the SRAM 2X "WIDE" front deraileur gravel groups.

Q-Factor:            150mm

DRIVETRAIN:    SHIMANO "GRX" 2X GRAVEL - Compatible with both Di2 and mechanical Shimano 10/11/12sp.

                SRAM "WIDE" 2X GRAVEL - Compatible with both e-Tap and mechanical SRAM 10/11/12sp.

                Made specificaly for use with Shimano 2X "GRX" and the SRAM 2X "WIDE" front deraileur gravel groups.

MAIN BOLT:       8mm Alloy Main crank bolt for Install/Self-Extract

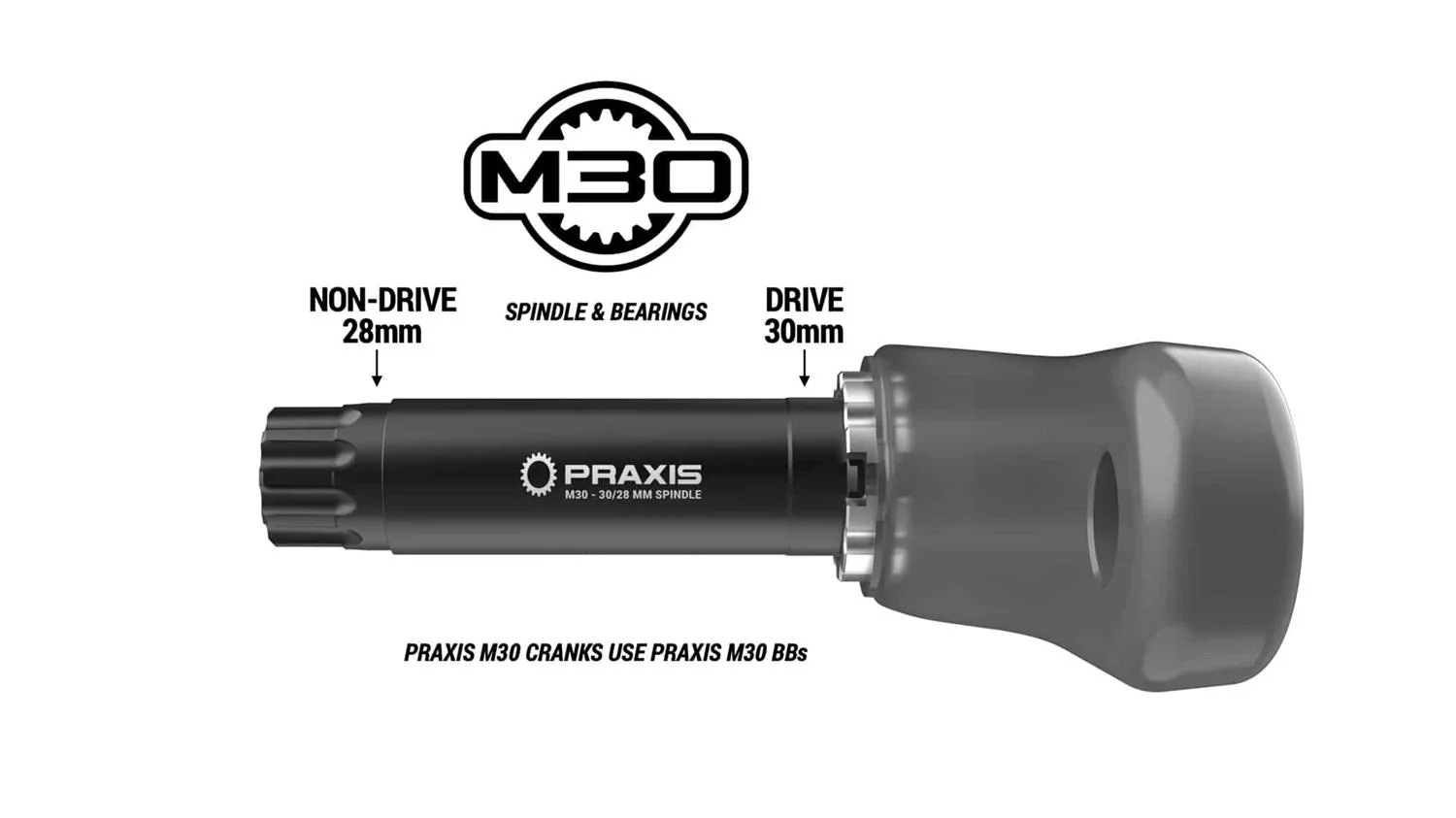

BB:                     This crank requires our Praxis M30 BB, M30 = 30mm Drive Bearing / 28mm NonDrive Bearing

                Offered in BSA / BB86 / T47 I.B / T47 E.B / BB30 / PF30 / 386EVO / BBRight



Instructions: Click Here
