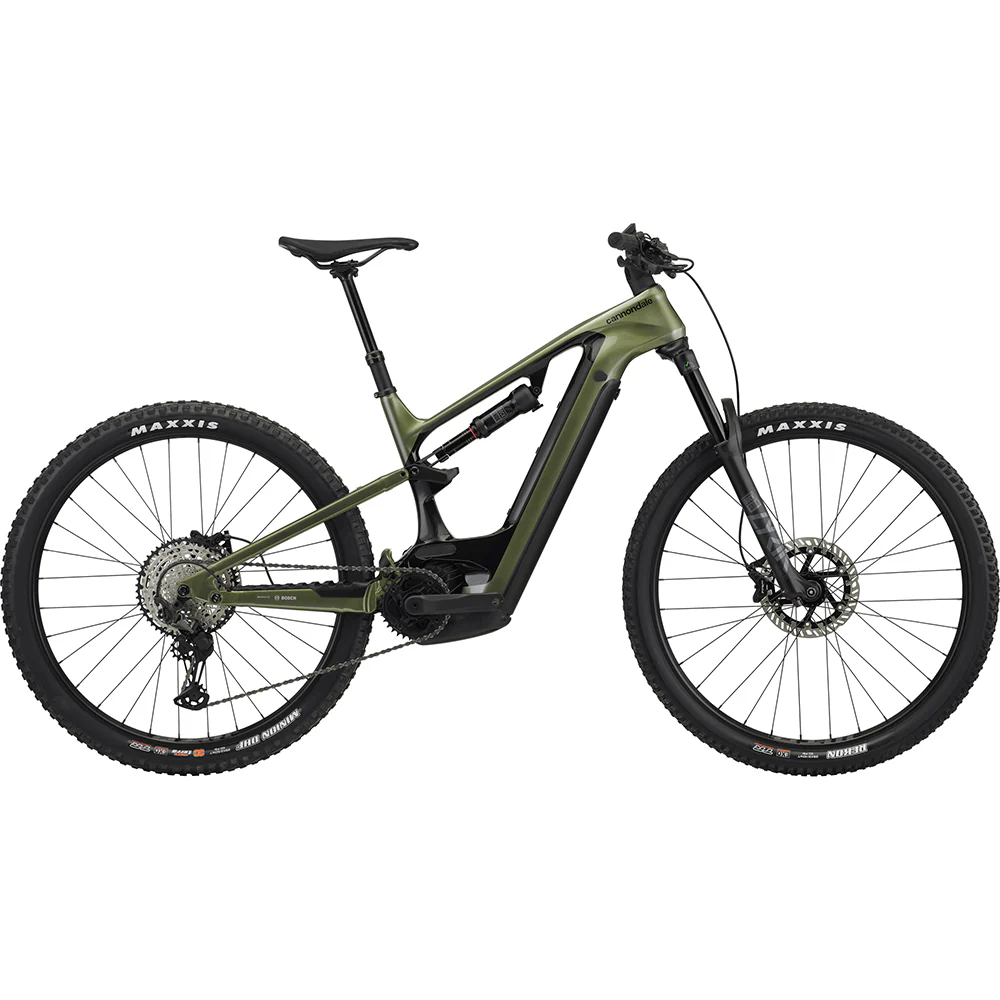

CANNONDALE MOTERRA NEO (LT) CARBON BOSCH 2022 - 2024 SPARES

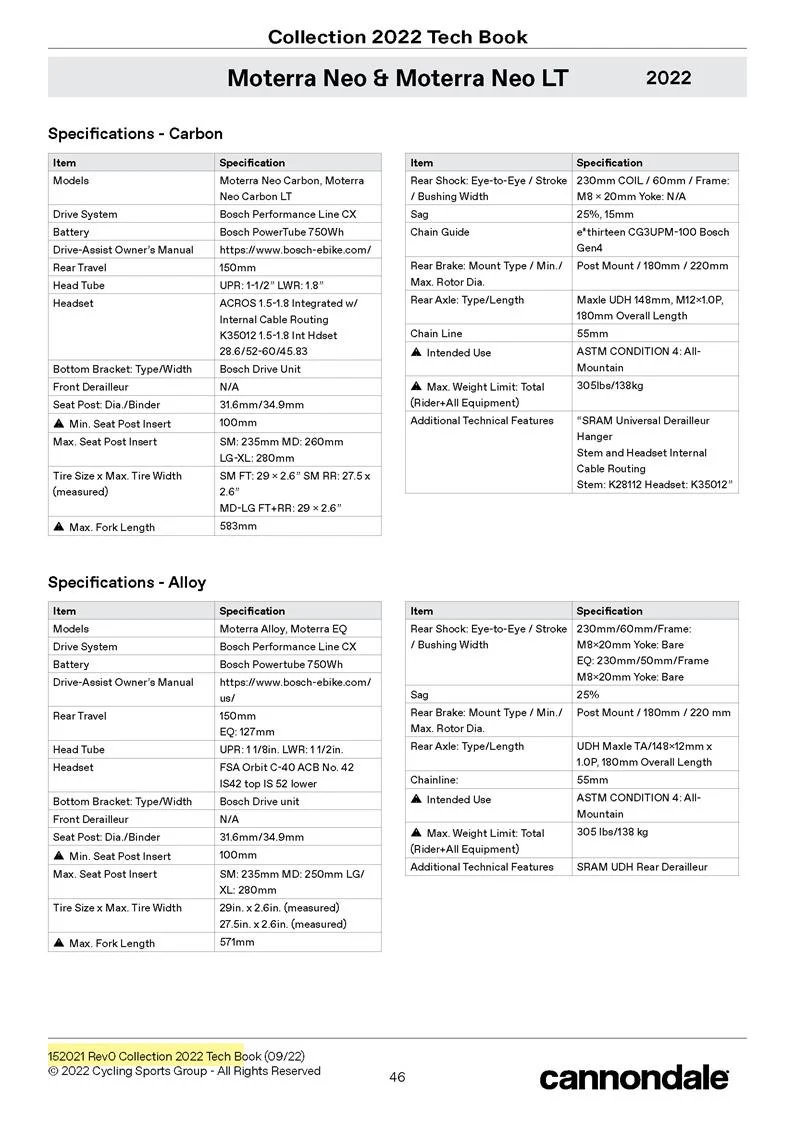

SPECIFICATIONS

Drive System - Bosch Performance Line CX

Battery - Bosch PowerTube 750Wh

Rear Travel - 150mm

Head Tube - UPR: 1-1/2” LWR: 1.8”

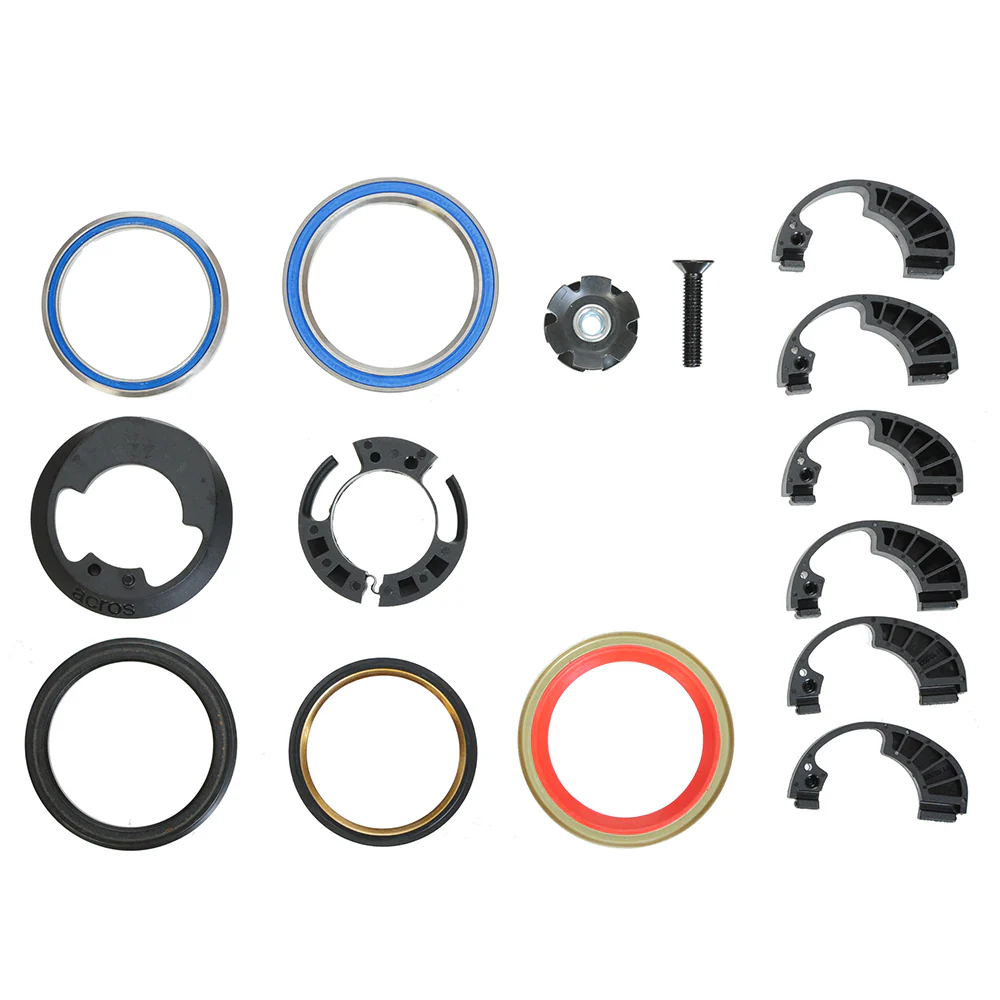

Headset - ACROS 1.5-1.8 Integrated w/Internal Cable Routing K35012 1.5-1.8 Int Hdset 28.6/52 - 60/45.83

Bottom Bracket: Type / Width - Bosch Drive Unit

Front Derailleur - N/A

Seat Post: Dia./Binder - 31.6mm/34.9mm

Minimum Seat Post Insert - 100 mm

Maximum Frame Seat Post Insert Depth - SM: 235mm MD: 260mm LG-XL: 280mm

Tyre Size x Maximum Width - SM FT: 29 x 2.6” SM RR: 27.5 x 2.6”, MD-LG FT+RR: 29 x 2.6”

Maximum Fork Length - 583mm

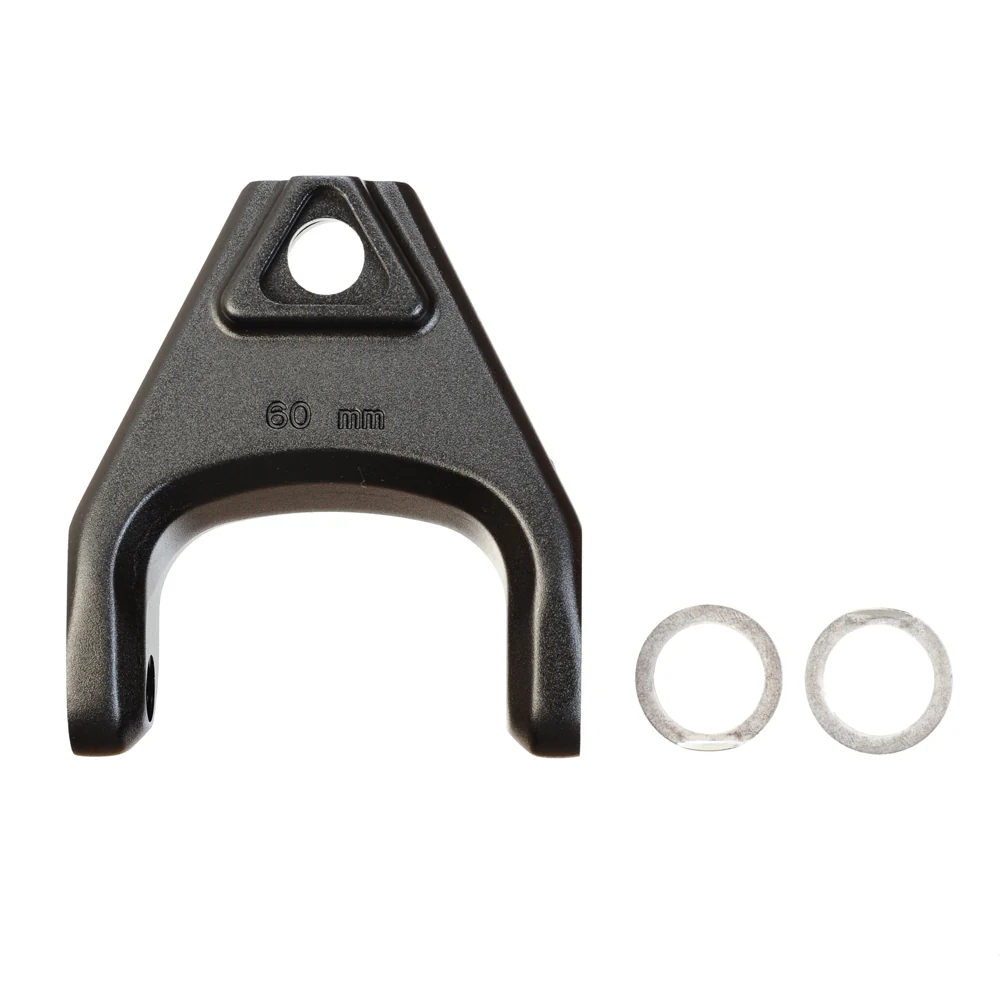

Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 230mm COIL / 60mm / Frame: M8 x 20mm Yoke: N/A

Sag - 25% / 15mm

Chain Guide - e*thirteen CG3UPM-100 Bosch Gen4

Brakes: Mount Type / Min / Max Rotor Diameter - Post Mount / 180mm / 220mm

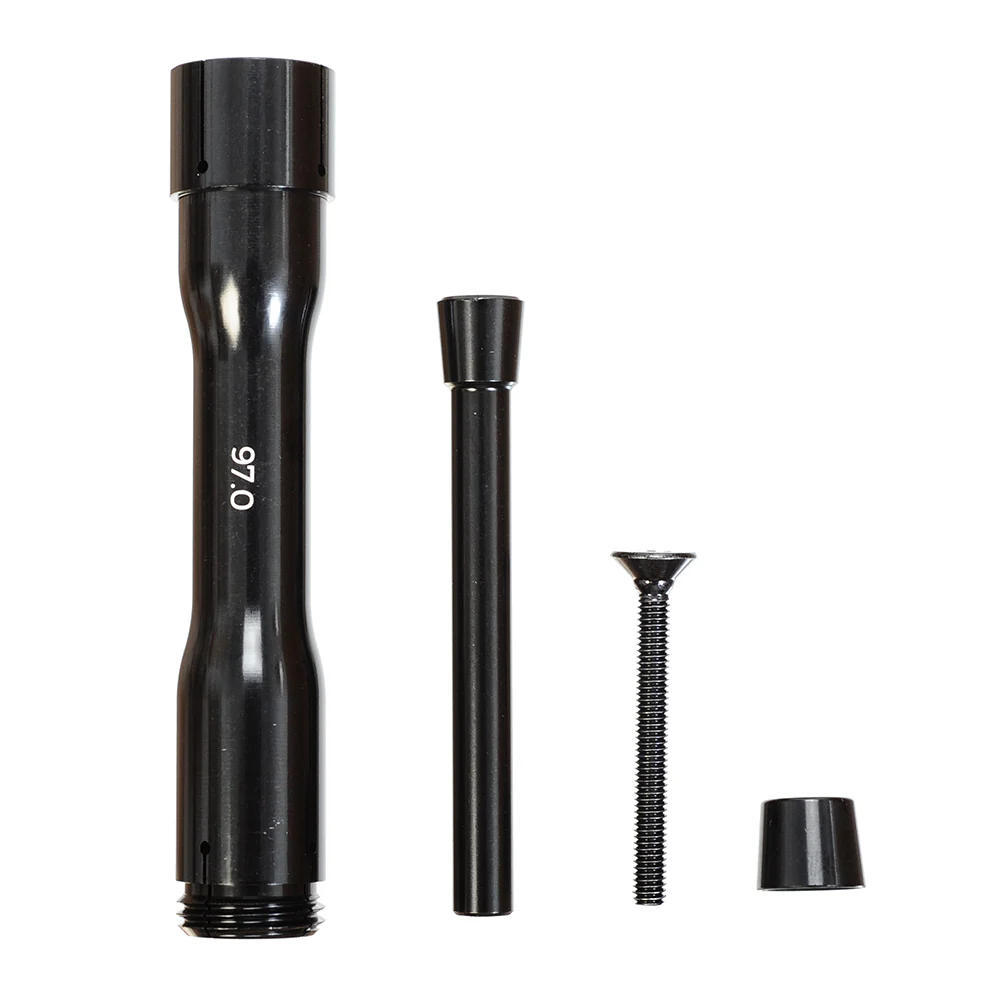

Axles: Type / Length - Maxle UDH 148mm, M12x1.0P, 180mm Overall Length

Maximum Weight Limit: Total - 138kg

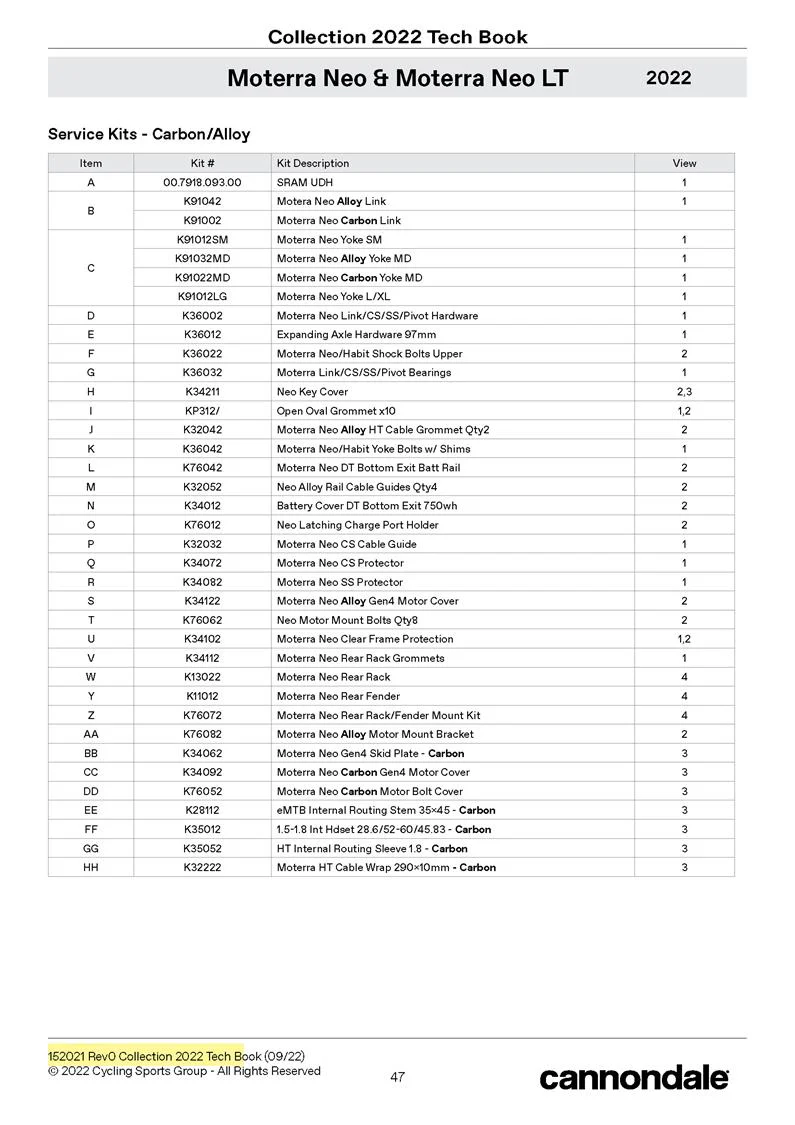

Note: K35052 is incorrect in the parts manual. Head tube sleeve is K35104
