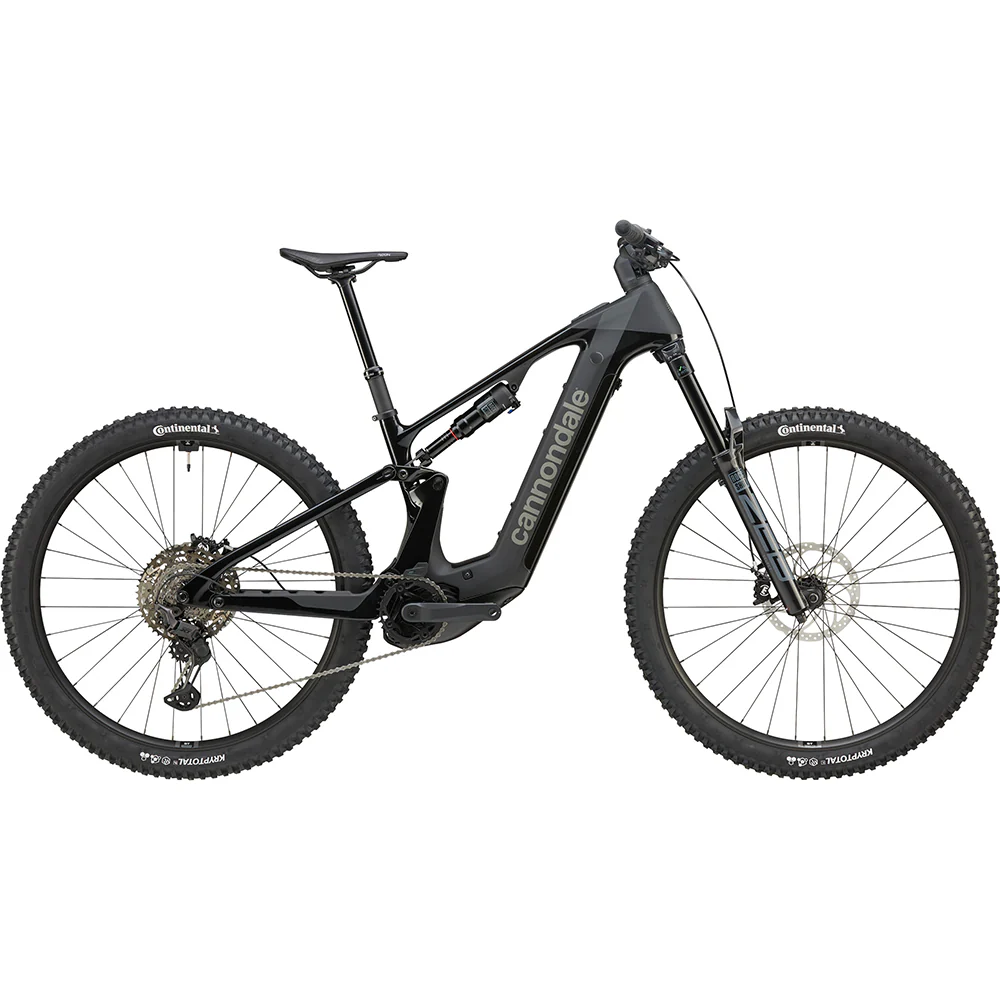

CANNONDALE MOTERRA SPARES 2025+

SPECIFICATIONS

Drive System - Bosch Performance Line CX

Battery - Bosch PowerTube 800Wh

Rear Travel - SM/MD: 150mm, LG/XL: 155mm / LT: SM/MD: 160mm, LG/XL:165mm

Head Tube - UPR: 1-1/2” LWR: 1.8”

Headset - ZS56/28.6 Top, ZS66/40 or ZS66/46 Bottom 45 degree crown race

Bottom Bracket: Type / Width - Bosch Drive Unit

Front Derailleur - N/A

Seat Post: Dia./Binder - 34.9mm/39.7mm

Minimum Seat Post Insert - 100 mm

Maximum Frame Seat Post Insert Depth - SM: 250mm MD: 270mm LG/XL: 300mm

Tyre Size x Maximum Width - RR: 29”x 2.6” / RR: 27.5”x 2.6”

Maximum Fork Length - 576mm, LT: 596mm

Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 230x62.5mm/FT:M8x25, RR: N/A / LT:230x65mm/FT: M8x25 RR: N/A

Sag - 30% (17.3mm), LT: 30% (17.5mm)”

Chain Guide - K11115 Moterra MRP Chainguide XL Complete / K11105 Moterra MRP Chainguide Complete

Brakes: Mount Type / Min / Max Rotor Diameter - Post Mount/200mm/220mm

Axles: Type / Length - 148x12mm Maxle TA M12x1.0P, 180mm Overall Length

Maximum Weight Limit: Total - 138kg
