JEKYLL 29 SPARES - IDLER PULLEY 2021-2024

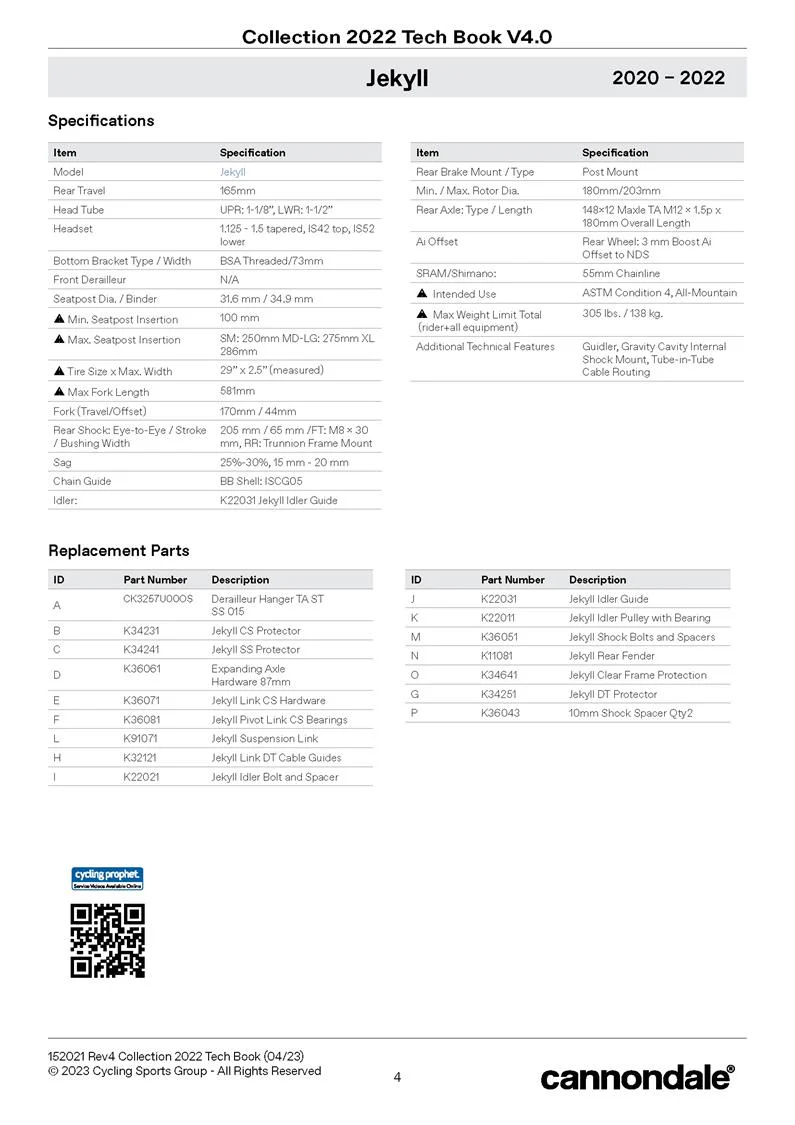

SPECIFICATIONS

Rear Travel - 165mm

Head Tube - UPR: 1-1/2” LWR: 1.8”

Headset - 1.125 - 1.5 tapered, IS42 top, IS52 lower

Bottom Bracket: Type / Width - BSA Threaded/73mm

Front Derailleur - N/A

Seat Post: Dia./Binder - 31.6mm / 34.9mm

Minimum Seat Post Insert - 100 mm

Maximum Frame Seat Post Insert Depth - SM: 250mm MD-LG: 275mm XL 286mm

Tyre Size x Max. Width - 29” x 2.5” (measured)

Maximum Fork Length - 581mm

Fork Travel / Offset - 170mm / 581mm

Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 205 mm / 65 mm /FT: M8 x 30mm, RR: Trunnion Frame Mount

Sag - 25%-30%, 15 mm - 20 mm

Chain Guide - BB Shell: ISCG05

Idler - K22031 Jekyll Idler Guide

Rear Brake Mount / Type - Post Mount

Min / Max Rotor Diameter - 180mm / 203mm

Axles: Type / Length - 148x12 Maxle TA M12 x 1.5p x 180mm Overall Length

Ai Offset - Rear Wheel: 3 mm Boost Ai Offset to NDS

Max. Weight Limit: Total - 138kg
