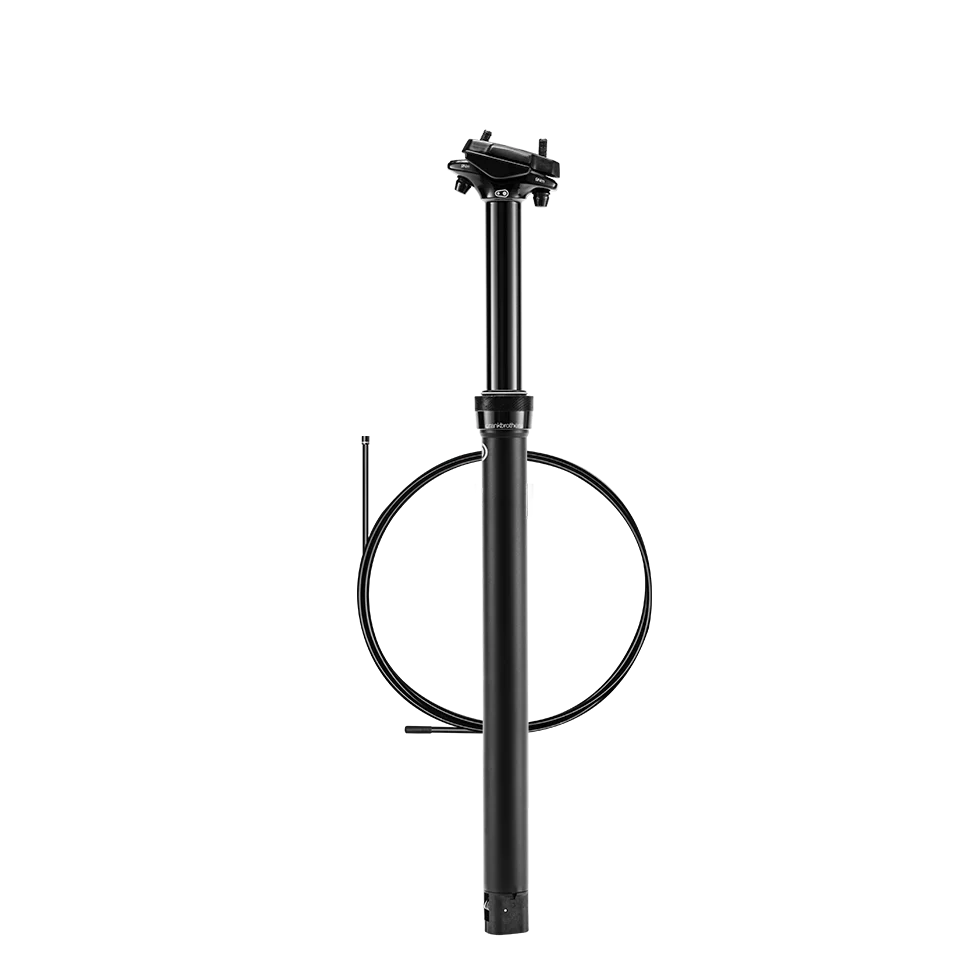

The all-new Highline XC/Gravel delivers infinite adjustment, smooth feel, and easy installation.

• Ideal for Gravel, Trail and XC
• 27.2mm seatpost diameter to fit most XC and gravel bikes
• Jagwire® cable and housing
• Self-contained IFP hydraulic cartridge
• Internal routing
• Quick connect mechanism for ease of cable installation
• Linear actuator for quick return speed
• 2-bolt standard head

Specs

SEAT POST DIAMETER	27.2mm
MIN INSERTION LENGTH	100mm
MAX INSERTION LENGTH	264mm
MAX EXTENDED LENGTH	300mm
TOTAL POST LENGTH	427mm
MIN STACK HEIGHT	60mm
SETBACK	0mm
TRAVEL ADJUSTMENT	100mm
MATERIAL	7075-T6 aluminum
WEIGHT	459g
WARRANTY	4 years
