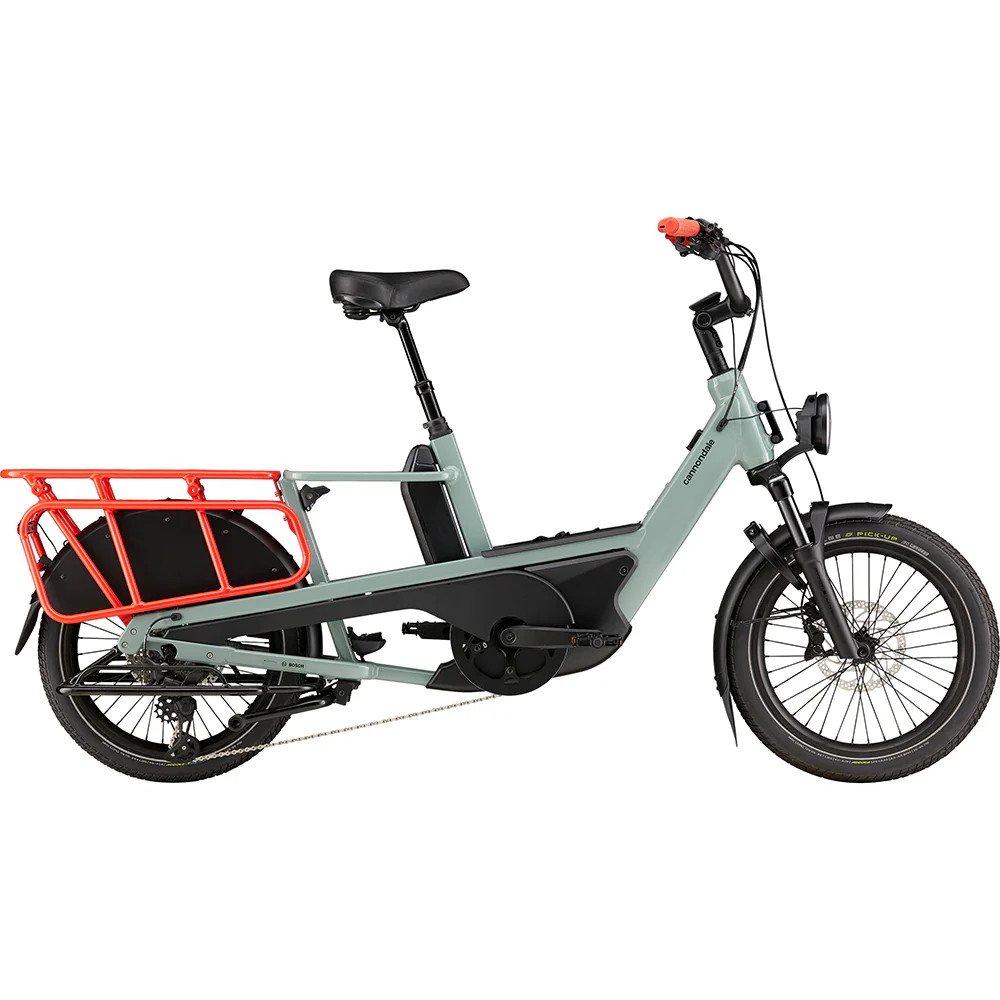

CANNONDALE CARGOWAGEN SPARES

SPECIFICATIONS

Head Tube - UPR:1-1/2”, LWR: 1-1/2”

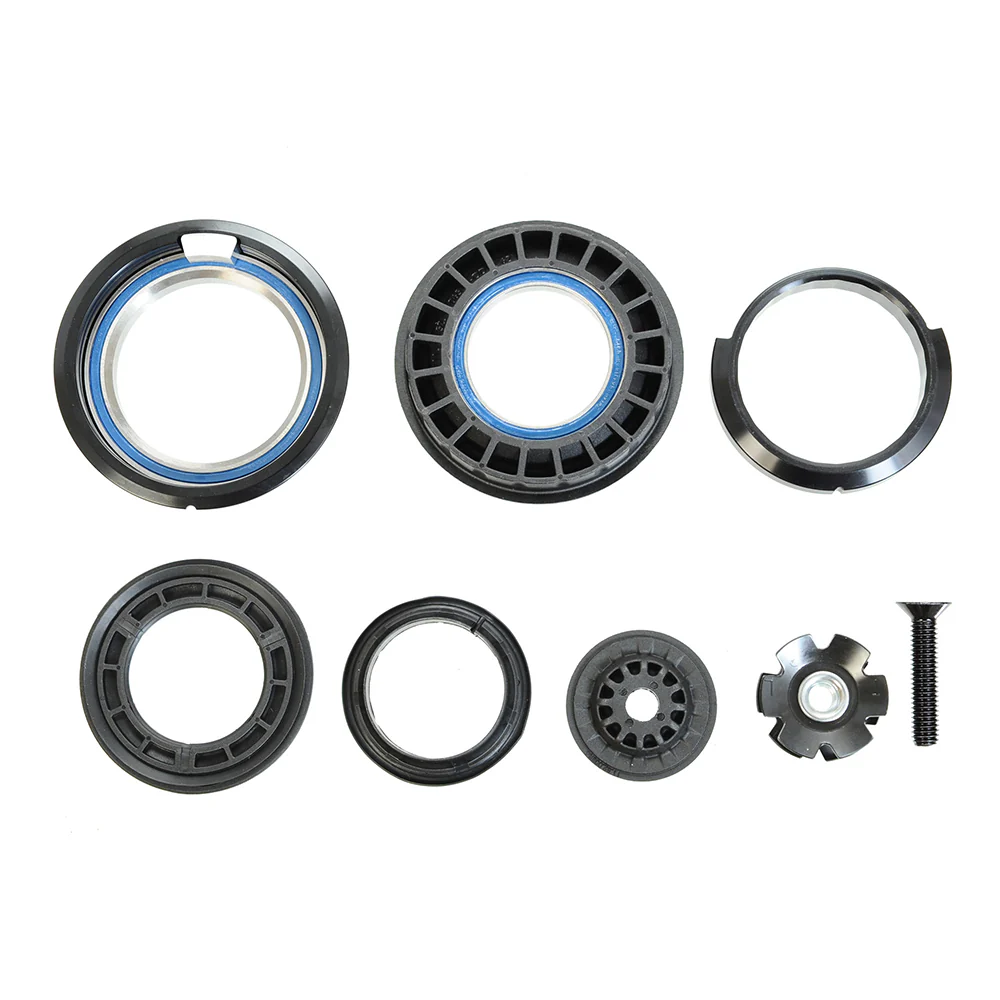

Headset - Semi-Integrated, 1.5” Straight – ACROS Blocklock ZS56 top, ZS56 bottom

Bottom Bracket: Type / Width - Bosch Drive Unit

Front Derailleur - N/A

Seat Post: Dia./Binder - 31.6mm/34.9mm

Minimum Seat Post Insert - 100 mm

Maximum Frame Seat post Insert Depth - 290 mm

Specified Tyre - Schwalbe Pick-Up Perf, Super Defense, Twinskin, 60-406 B/B+Rt Hs609 Addix E 2x67epi 36b

Tyre Size x Maximum Width - Front: 20” x 2.6” (measured) Rear: Derailleur 20” x 2.15” (measured), IGH 20” x 2.35” (measured)

Maximum Fork Length - 404.8mm

Brakes: Mount Type / Min / Max Rotor Dia.-  RR: Post Mount/203mm/203mm

Maximum Front Rack Weight Limit - 15kg

Maximum Rear Rack Weight Limit - 80kg

Brakes: Mount Type / Min / Max Rotor Diameter - Post Mount / 180 mm/203 mm

Axles: Type / Length - RR: Maxle TA/148 x 12mm x 1.75P, 180mm Overall Length

Total Maximum Weight Limit (Bike + Rider + Passengers+ Cargo + Accessories/ Trailer) - 200kg

Bike Weight - 39 kg
