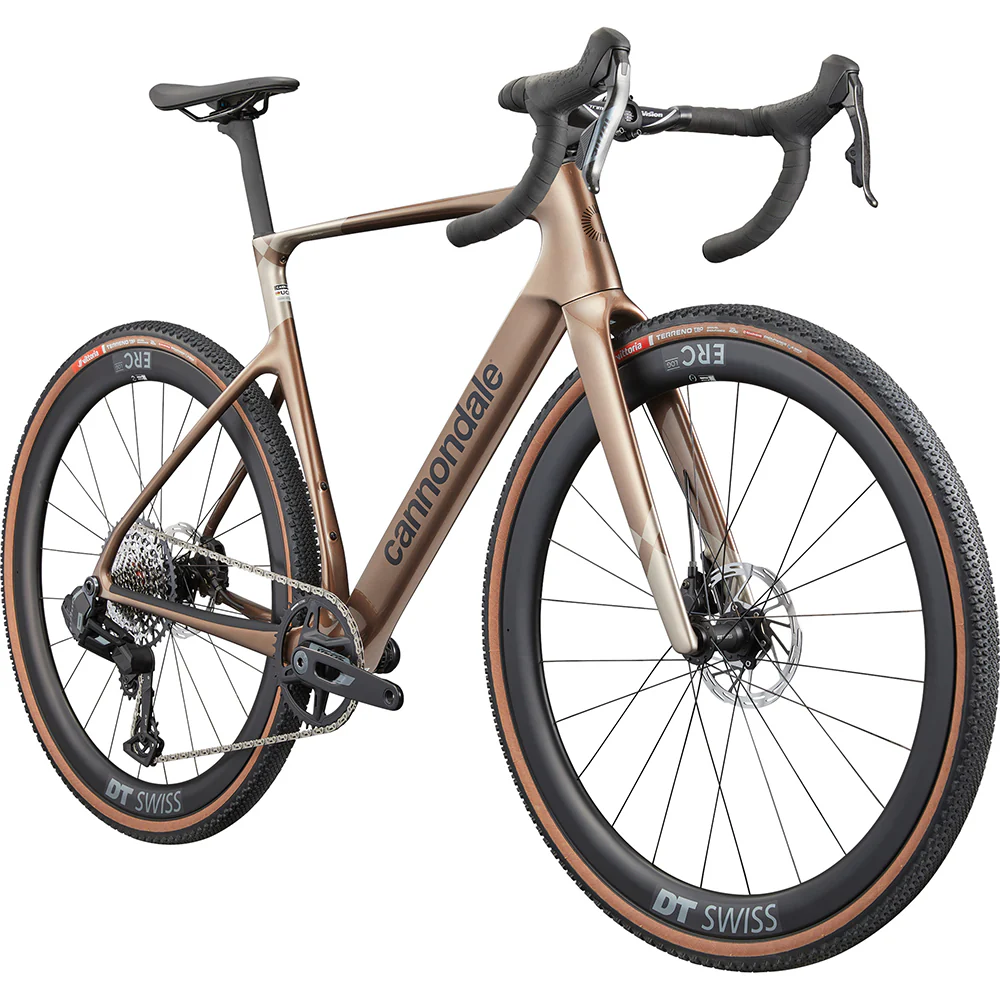

CANNONDALE SUPERX 3

All In to Go All Out

A pure gravel race machine focused on one thing: taking the lead and staying there. Ok, two things…

Ready, Set, Thrash.

SuperX 3 channels Cannondale’s racing pedigree, turning every stretch of gravel into a proving ground. The carbon frame is as light as it is tough, paired with DT Swiss ERC LOG 45 carbon wheels and Vittoria Terreno tires to make short work of gravel and dirt. SRAM Rival AXS XLPR delivers crisp, consistent wireless shifting, and flat-mount hydraulic brakes ensure steady control. Vittoria Terreno tires bite into loose terrain, keeping you fast and focused from start to finish. SuperX 3 turns every race into an opportunity to leave your mark.

Highlights



• Super light, low-drag, SuperX carbon frameset, backed by our Lifetime Warranty
• DT Swiss ERC LOG 45 carbon wheelset - Incredible performance value
• Smooth, effortless shifting and braking from SRAM’s versatile Rival XPLR AXS wireless electronic gravel group

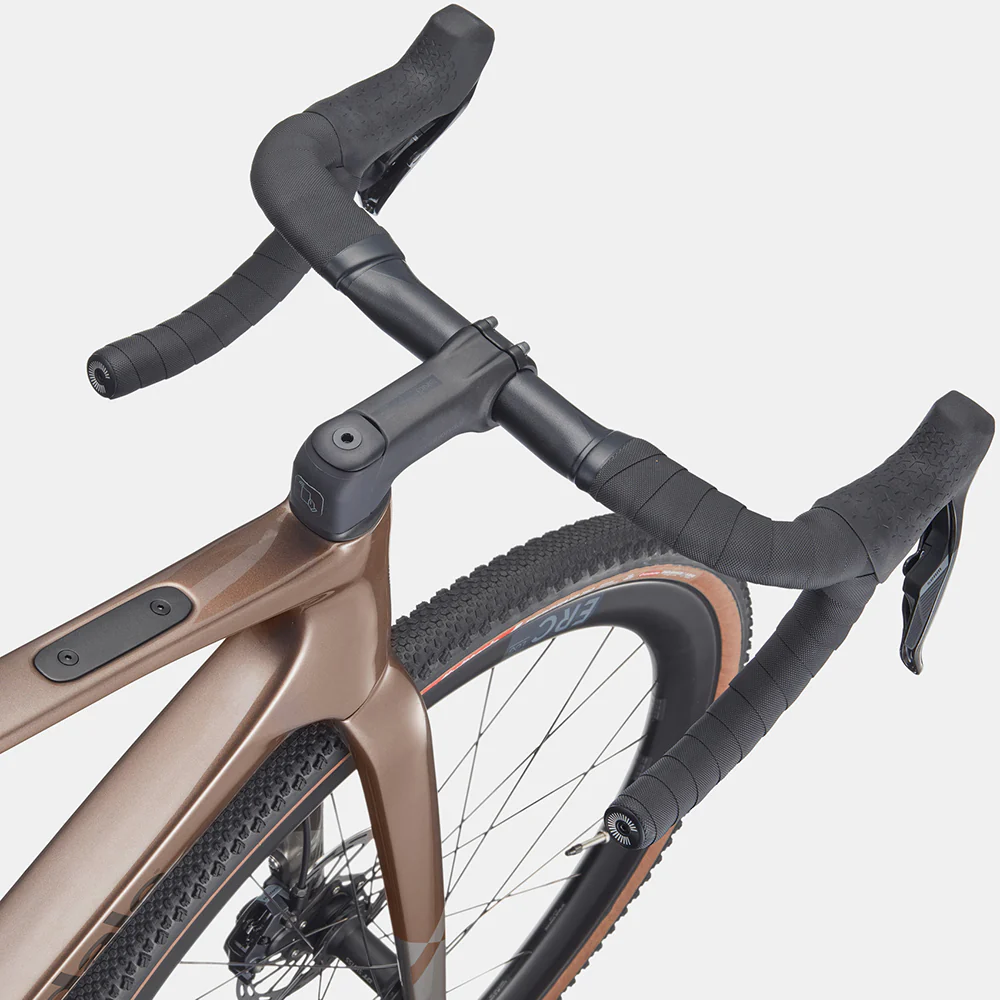

• Our sleek Conceal stem works with our Delta Steerer to route cables cleanly through the headtube
• Fizik Vento Argo X5 saddle - high performance off-road comfort with ergonomic cut-out
• Vittoria Terreno T50, 700x40c, tubeless ready tires offer unparalleled speed and capability across a wide range of surfaces



Specifications

Frame SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc
Fork SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer
Rims DT Swiss ERC LOG 45, carbon, 22mm inner width, 45mm depth, 24h, tubeless ready
Hubs (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
Spokes DT Swiss Competition
Tires Vittoria Terreno T50, 700x40c, tubeless ready
Pedals Not Included

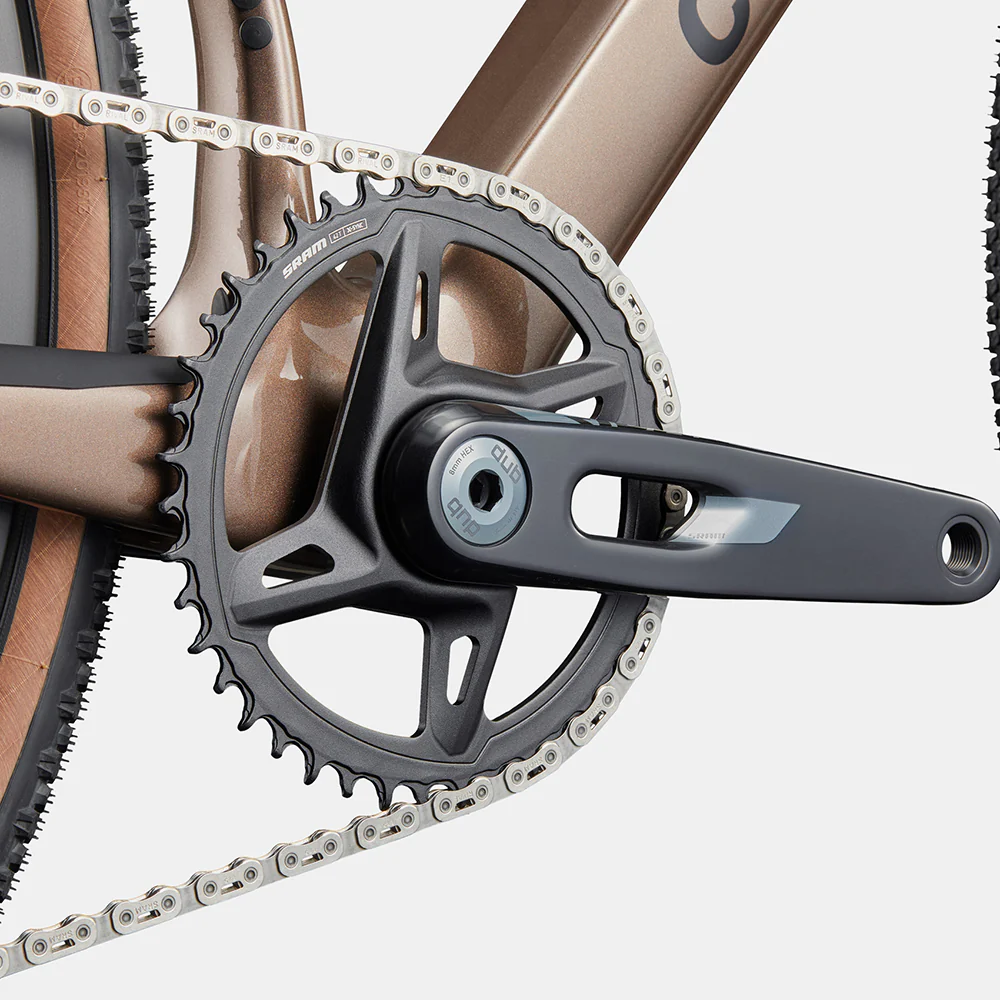

Crank SRAM Rival XPLR Wide, 42T: 165mm (46cm), 170mm (51-54cm), 172.5 (56-58cm), 175mm (61cm)
Bottom Bracket SRAM DUB BSA Road 68 Wide
Chain SRAM Rival
Rear Cogs SRAM Rival XPLR XG-1351, 10-46, 13-speed
Front Derailleur N/A

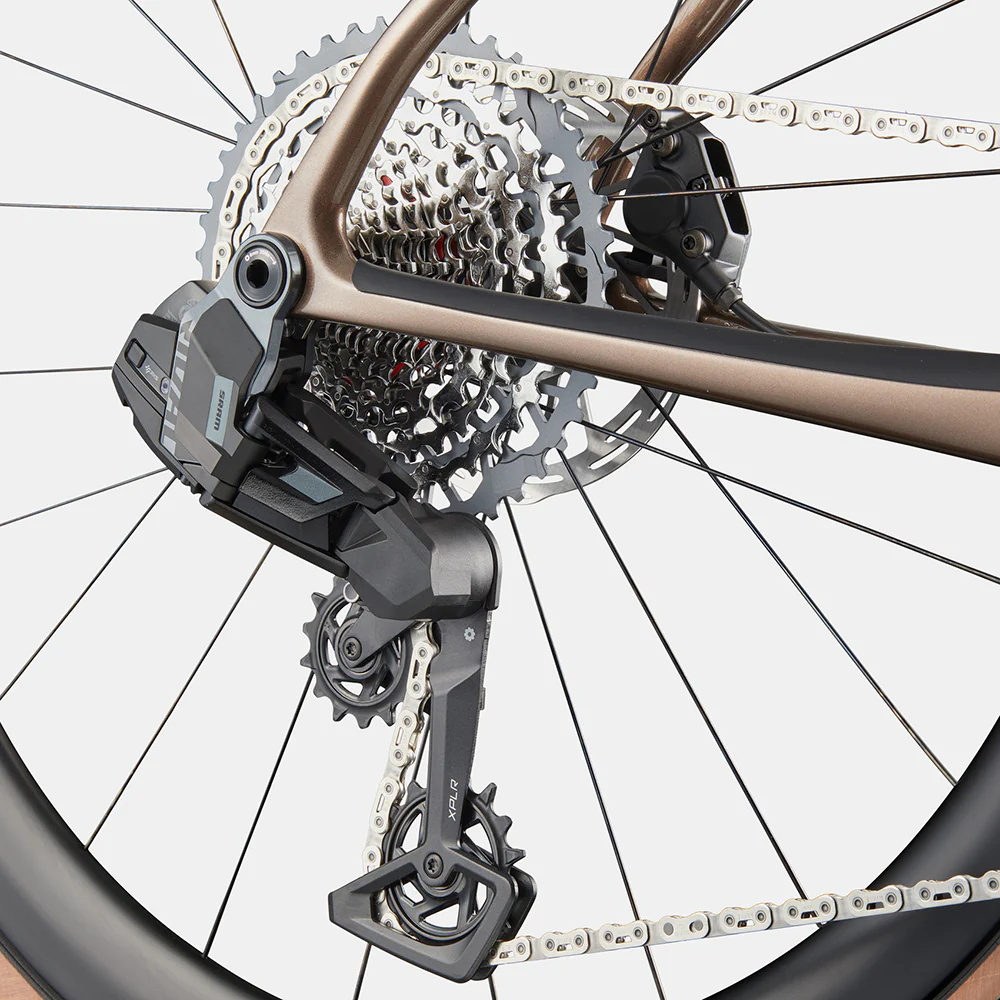

Rear Derailleur SRAM Rival AXS XPLR

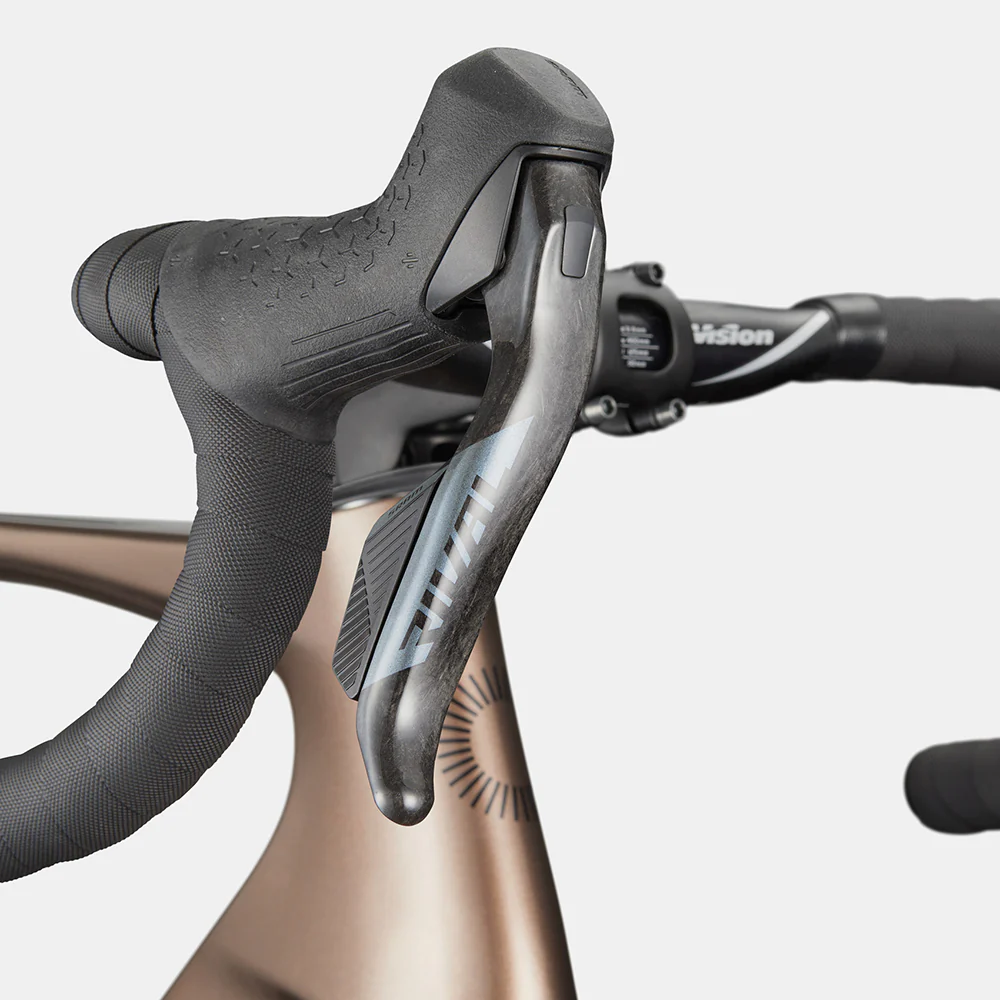

Shifters SRAM Rival AXS
Handlebar Vision Trimax Carbon Aero: 400mm (46-51cm), 420mm (54-61cm)
Grips Cannondale Bar Tape, 3.5mm
Stem Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (46-51m), 100mm (54-56cm), 110mm (58-61cm)
Headset Integrated, 1-1/8" - 1-1/2"
Brakes SRAM Rival hydraulic disc, 160/160mm PaceLine centerlock rotors
Brake Levers SRAM Rival AXS hydraulic disc
Saddle Fizik Vento Argo X5, S-Alloy rails, 140mm
Seatpost Cannondale C1 Aero 27 Carbon, 0mm offset (46cm), 20mm offset (51-61cm)
Extras Tubeless valves, SRAM AXS charger, Conceal Stem accessory/computer mount (Garmin/Wahoo)
