CANNONDALE MOTERRA 2

More Juice, No Excuse.

The new Moterra Carbon is more than capable—it’s relentless. With a light and agile frame wrapped around Bosch's most powerful drive system, it handles steep ascents and rugged descents with the confidence of a luxury off-roader. Built for the seekers, the adventurers, the riders who live to see what’s over the next ridge. Go far. Go fast. Come back happy.

Light, Nimble, Ready.

Designed for riders who refuse to compromise, the all-new Moterra comes out swinging for 2025. A new full carbon frame, along with e-system small parts, shaves almost a kilo off the previous generation, while the updated geometry and suspension kinematics deliver incredibly balanced handling and a more planted, “in-the-bike", feel. Overall, it takes Moterra’s agility and all-around capability to new heights. With 150mm of rear travel, 160mm up front, and 29" wheels, it’s lively on the descents, steady on climbs, and precise in techy stuff - with the kind of responsiveness that makes you forget you’re riding an eMTB. Less weight, more freedom, and all the control you need—ready to tackle whatever the trail throws your way.

Power to the Pedal.

Moterra gets its all-conquering boost from the latest version of Bosch’s most powerful drive system. The updated Performance Line CX drive unit delivers delivers its powerful torque more quietly, smoothly and naturally than ever before, slaying even the nastiest climbs with silent ease, while the massive 800 or 600Wh interchangeable battery options offer the range to roll for hours. Whether conquering steep climbs or cruising alpine paths, this system ensures maximum power and battery longevity, ride after ride.

Specifications

Frame Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery
Rear Shock RockShox Deluxe Select+, DebonAir+, 2-Pos mode adjust, adjustable rebound, 230×62.5mm
Fork RockShox ZEB Select, 160mm, Charger RC, DebonAir+, 15×110mm Maxle, 44mm offset

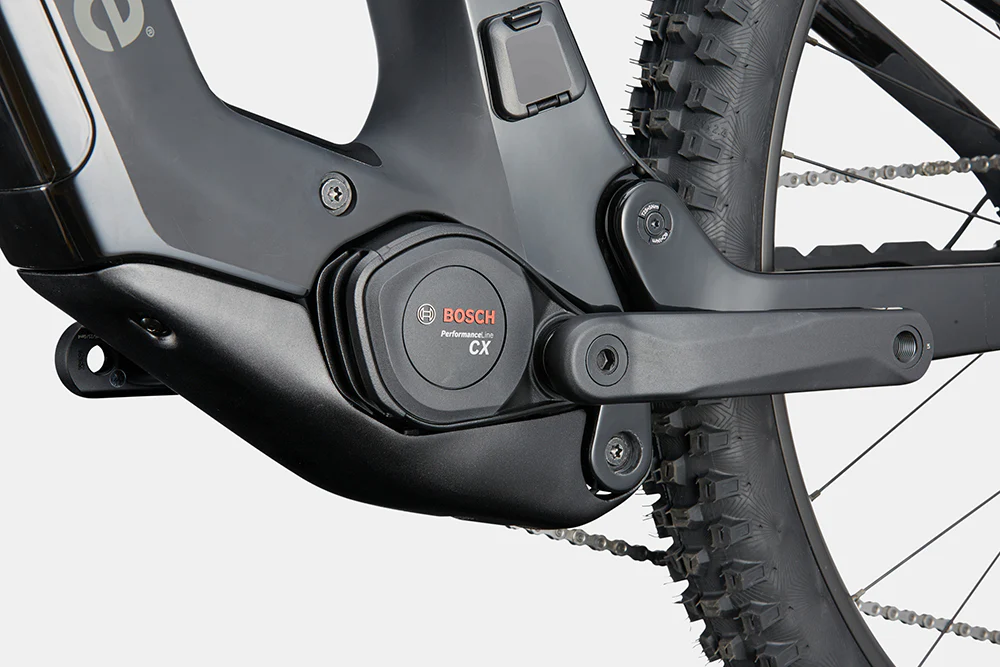

Drive Unit Bosch Performance Line CX 250W
Battery Bosch PowerTube 800Wh
Display Top Tube System Controller w/ Bosch Kiox 300 & Mini Remote
Charger Bosch 4A
Rims WTB ST i30 Tough TCS, 30mm inner width, 32h, tubeless ready
Hubs (F) Shimano TC500, 15×110mm thru-axle / (R) Shimano TC500, 12×148mm thru-axle, centerlock
Spokes DT Swiss Champion 2.0
Tires (F) Continental Kryptotal-F, 29×2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29×2.4", Enduro Soft Black Foldable
Pedals N/A
Crank FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Chain Shimano LG500, LinkGlide, 11-speed
Rear Cogs Shimano CUES LG700, LinkGlide, 11-50, 11-speed

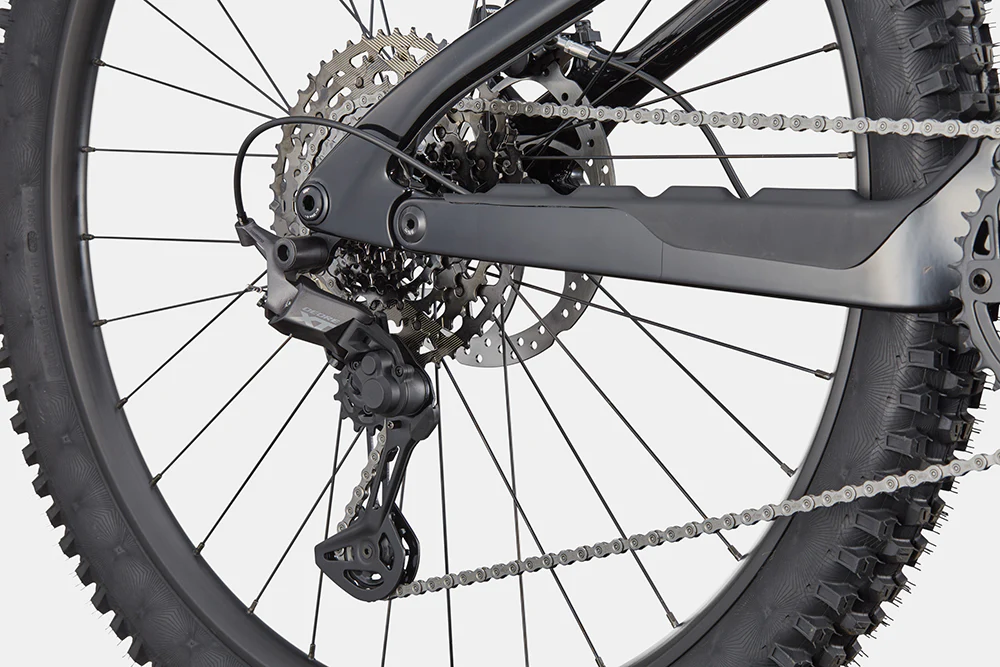

Rear Derailieur Shimano XT M8130, LinkGlide
Shifters Shimano CUES U8000, 11-speed, LinkGlide
Handlebar Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Grips Cannondale TaperRidge
Stem Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
Headset Acros ICR, 1.5" to 1.8", sealed bearings
Brakes Magura MT5 4-piston hydraulic disc, 203mm Storm rotors
Brake Levers Magura MT5 hydraulic disc
Saddle Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
Seatpost Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Sizes S, M, L, XL
Colour Matte Black (BBQ)
Extras Tubeless Valve Stems, Bosch PowerMore range extender compatible
