Cannondale Habit: Precision Trail Geometry and Proportional Response Suspension

Dialed Trail Geometry for the Ultimate Mountain Bike Experience

The Cannondale Habit redefines trail riding with its expertly crafted geometry, offering an ideal balance of performance and control. With a 65.5-degree head angle and a 77.5-degree seat angle, the new Habit features a slacker, longer, and lower design, providing an optimal riding position for aggressive trail and mountain bike enthusiasts. The increased reach and shorter seat tube accommodate longer dropper posts and lower standover heights, enhancing rider confidence and comfort.

For those who crave a bit more adventure, the Cannondale Habit LT takes trail performance up a notch. Featuring a 64.7-degree head angle and a 77-degree seat angle, it is slightly slacker due to its longer fork, making it perfect for more rugged trails and challenging terrain. Note that both the Habit and Habit LT share the same rear shock eye-to-eye measurement, but with different stroke shocks for tailored performance.

Proportional Response Suspension and Geometry

The Cannondale Habit benefits from our Proportional Response Suspension and Proportional Response Geometry, a design philosophy aimed at optimizing ride feel for every rider. Our size-specific approach ensures that every Cannondale Habit rider experiences balanced braking, pedaling, and bump absorption tailored to their size. Each size of the Habit features a unique suspension kinematic, with adjustments made to the chainstay length, reach, stack, and front center dimensions to maintain optimal traction and control.

The new Cannondale Habit Carbon models are treated to a full Proportional Response setup, offering custom geometry and suspension for each size. The Cannondale Habit Alloy models feature a split kinematic design, with XS using 27.5 wheels and unique kinematics, while Small and Medium share one kinematic, and Large and XL have another.

Built for Trail Fun

The Cannondale Habit is designed for enjoyable, all-around trail riding. With 130/140mm travel, inline shocks, Pike or Recon forks, light trail wheels, and 180mm rotors, it’s quick, light, and responsive, making it perfect for fast and flowy trails.

For a more rugged ride, the Cannondale Habit LT offers 140/150mm travel, piggyback shocks, Lyrik forks, robust wheels, and 200mm rotors. It’s built for stability and control on more challenging trails, providing a poised and planted ride that still packs plenty of pop.

Easy Maintenance and Practical Features

Both the Cannondale Habit and Habit LT are designed for easy maintenance with straightforward components, including an industry-standard headset, threaded bottom bracket, shock mount, and UDH derailleur hanger. Internal cable routing is simple and effective, with the Carbon models featuring full tube-in-tube routing. Additionally, the Carbon models come with a bolt-on StrapRack tool and stuff carrier, adding convenience for every ride.

Discover the perfect Cannondale mountain bike for your trail adventures with the new Habit and Habit LT, engineered for every rider and every trail.

Frameset
Frame	Habit SmartForm C1 Alloy, 130mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger
Fork	RockShox Recon RL, 140mm, Solo Air, 15x110mm thru-axle, tapered steerer, 42mm offset
Headset	Integrated Sealed Bearing, Tapered
Rear Shock	RockShox Deluxe Select, DebonAir, adjustable rebound
Drivetrain
Rear Derailleur	Shimano Deore M6100
Shifters	Shimano Deore M6100, 12-speed
Chain	KMC X12, 12-speed
Crank	Shimano, FC-5121, 30T, 55mm chainline
Rear Cogs	Shimano Deore M6100, 11-51, 12-speed
Bottom Bracket	Shimano BSA 73
Brakes
Brakes	Shimano MT200 hydraulic disc, 180/180mm RT30 rotors, centerlock
Brake Levers	Shimano MT200 hydraulic disc
Wheels
Rims	WTB STX i25 TCS, 32h, tubeless ready
Spokes	Stainless Steel, 14g
Tire Size	2.4
Wheel Size	29, 27.5 (XS)
Hubs	(F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Tires	Maxxis Rekon, 29x2.4" (27.5x2.4" - XS), EXO
Front Tire	Maxxis Rekon, 29x2.4" (27.5x2.4" - XS), EXO
Rear Tire	Maxxis Rekon, 29x2.4" (27.5x2.4" - XS), EXO
Components
Handlebar	Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Stem	Cannondale 3, 6061 Alloy, 31.8, 0°
Grips	Cannondale Locking Grips
Saddle	Cannondale Ergo XC
Seatpost	TranzX dropper, internal routing, 31.6, 130mm (XS-S), 150mm (M-XL)

Bikes - Mountain

Price

Collections

Cannondale Scalpel HM Frameset IRD 21

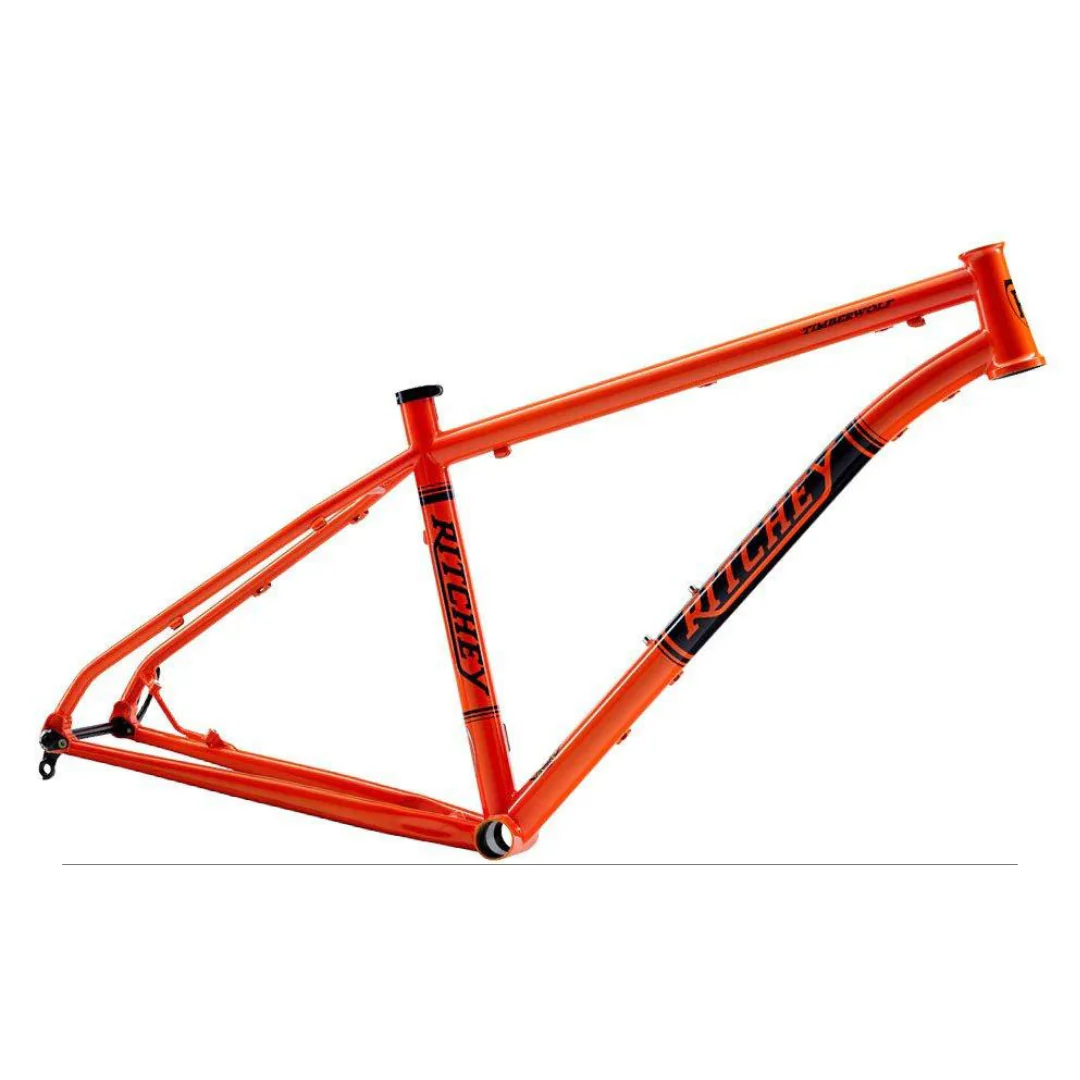

Ritchey Timberwolf Frame

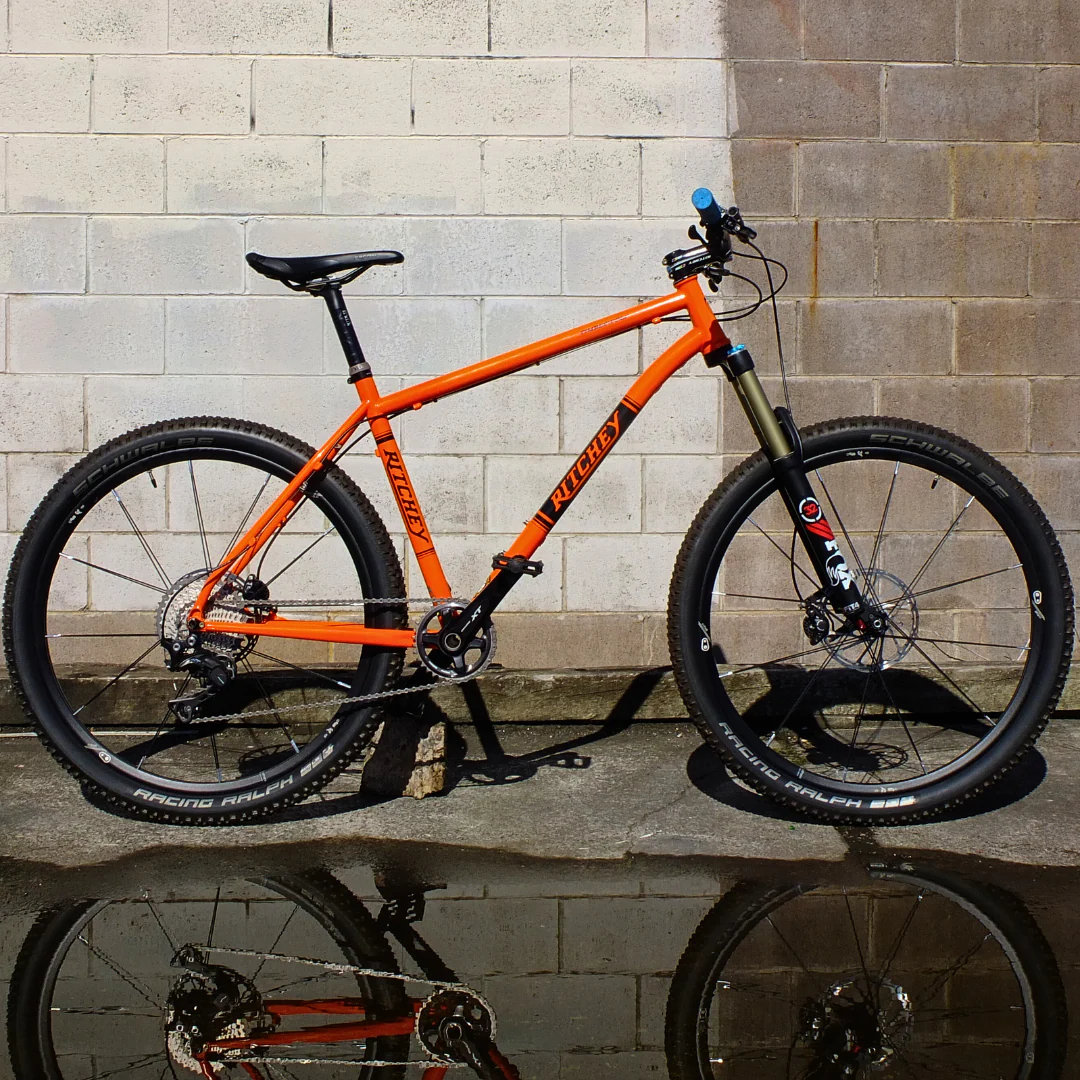

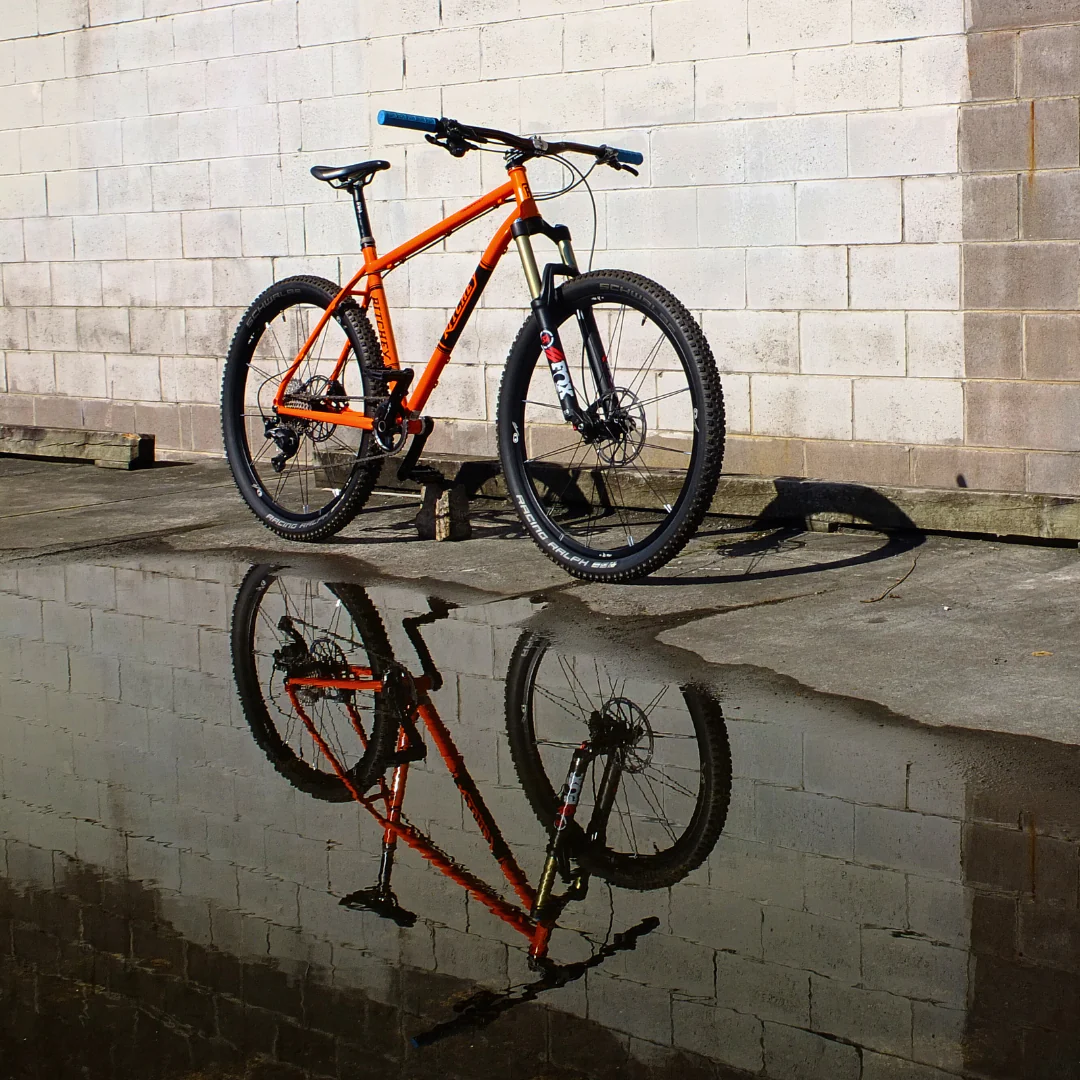

Ritchey Timberwolf Custom, Large, 27.5 Wheels

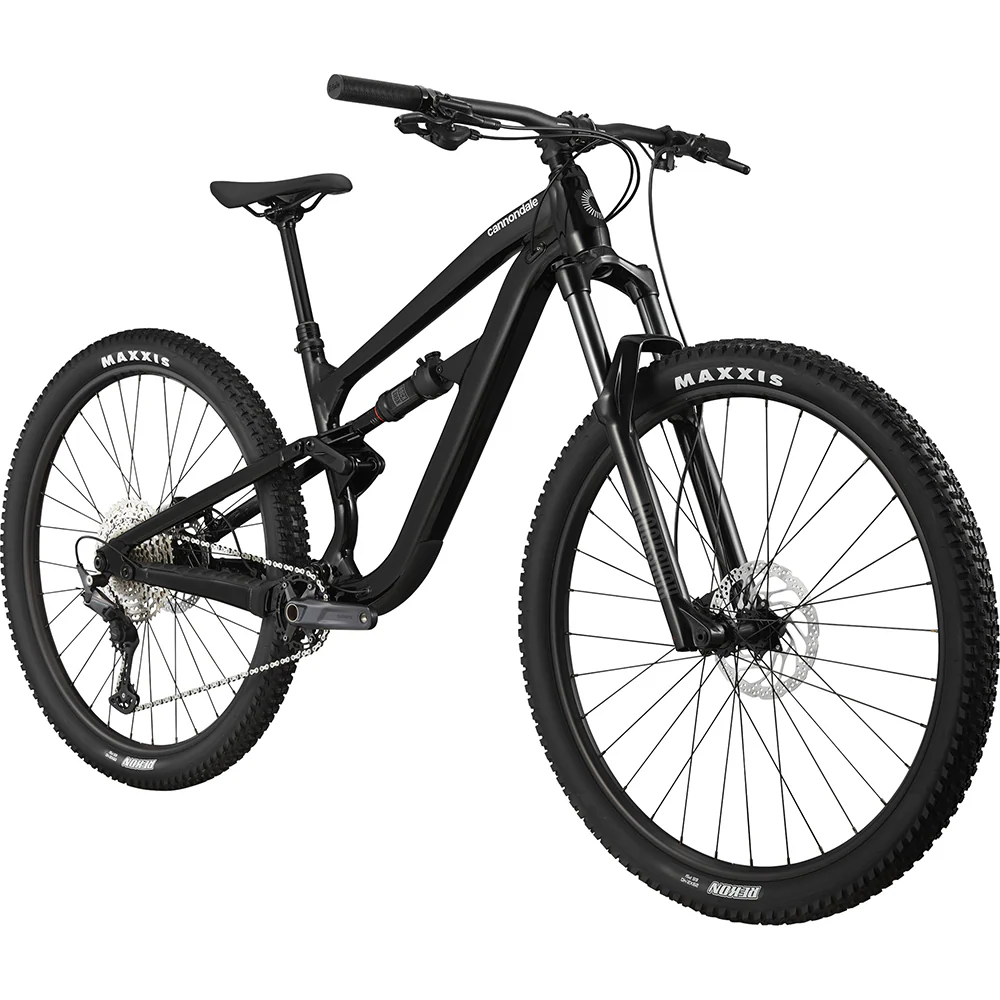

Cannondale Habit Alloy 4 - Black

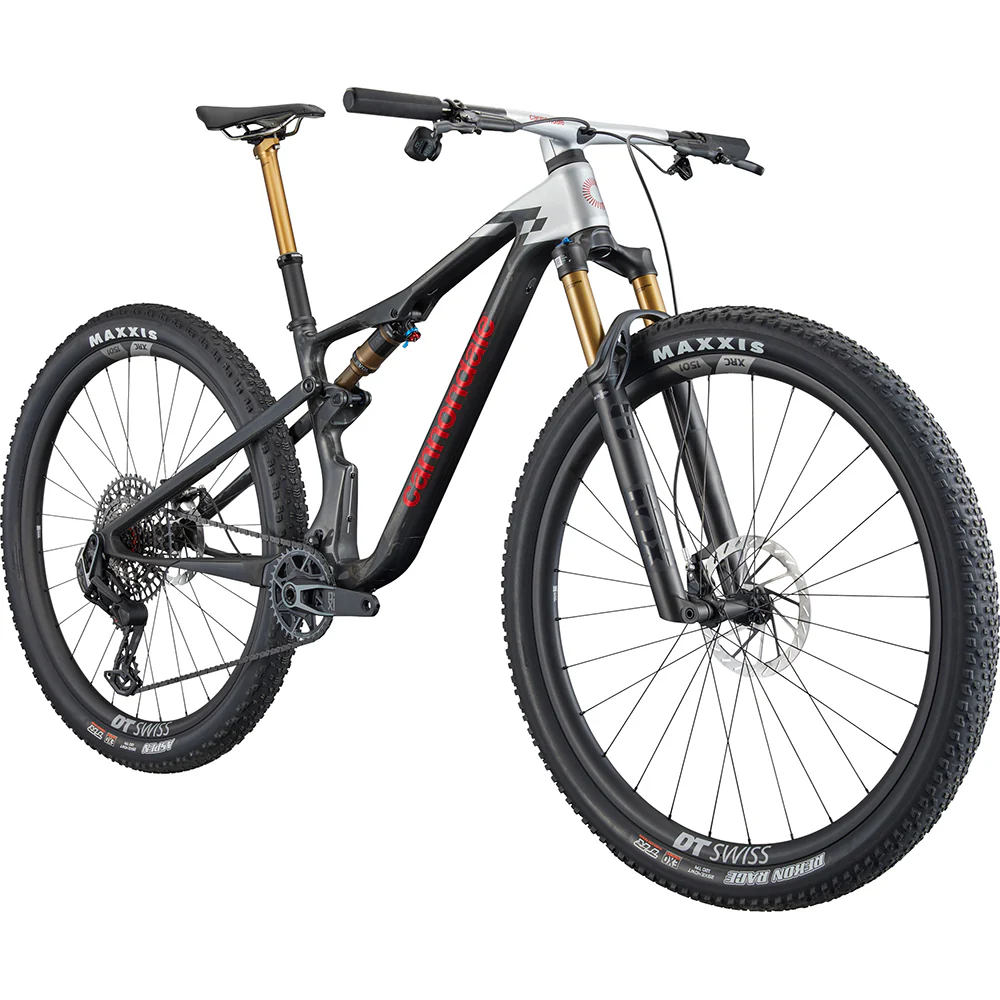

Cannondale Scalpel 1

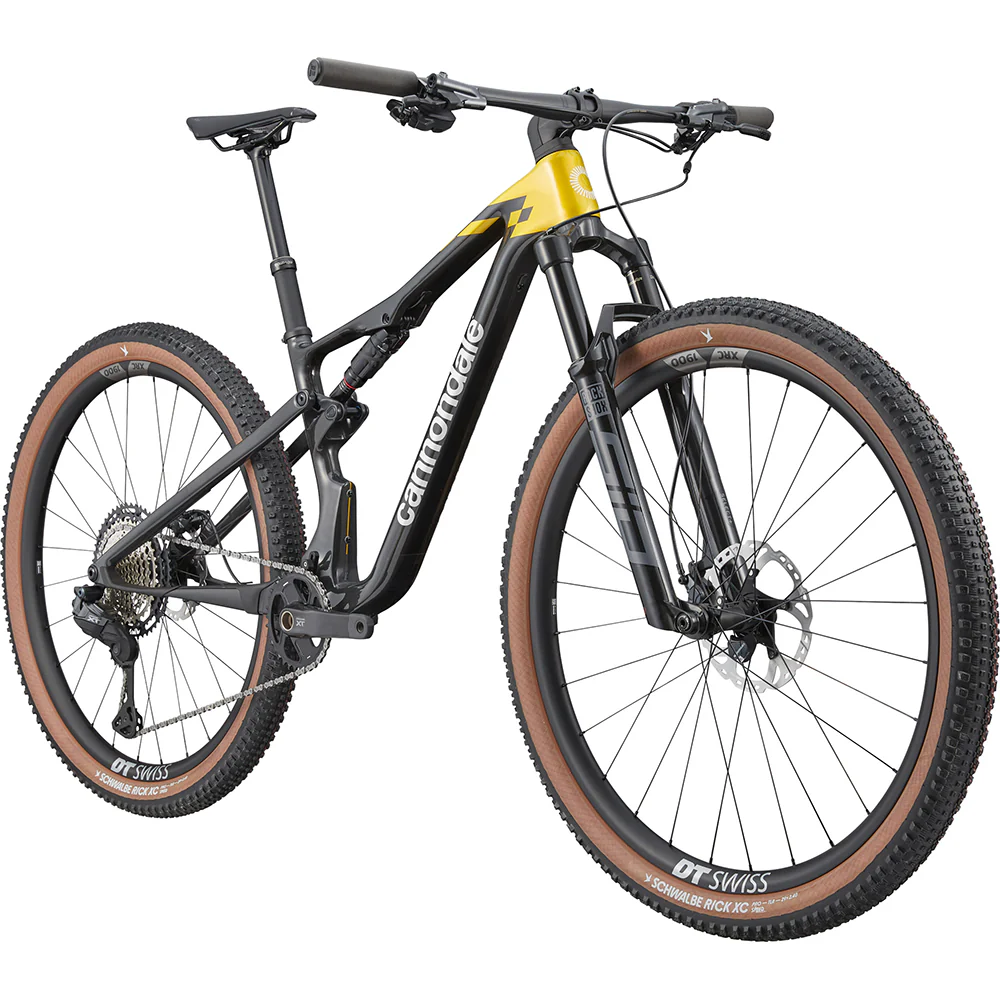

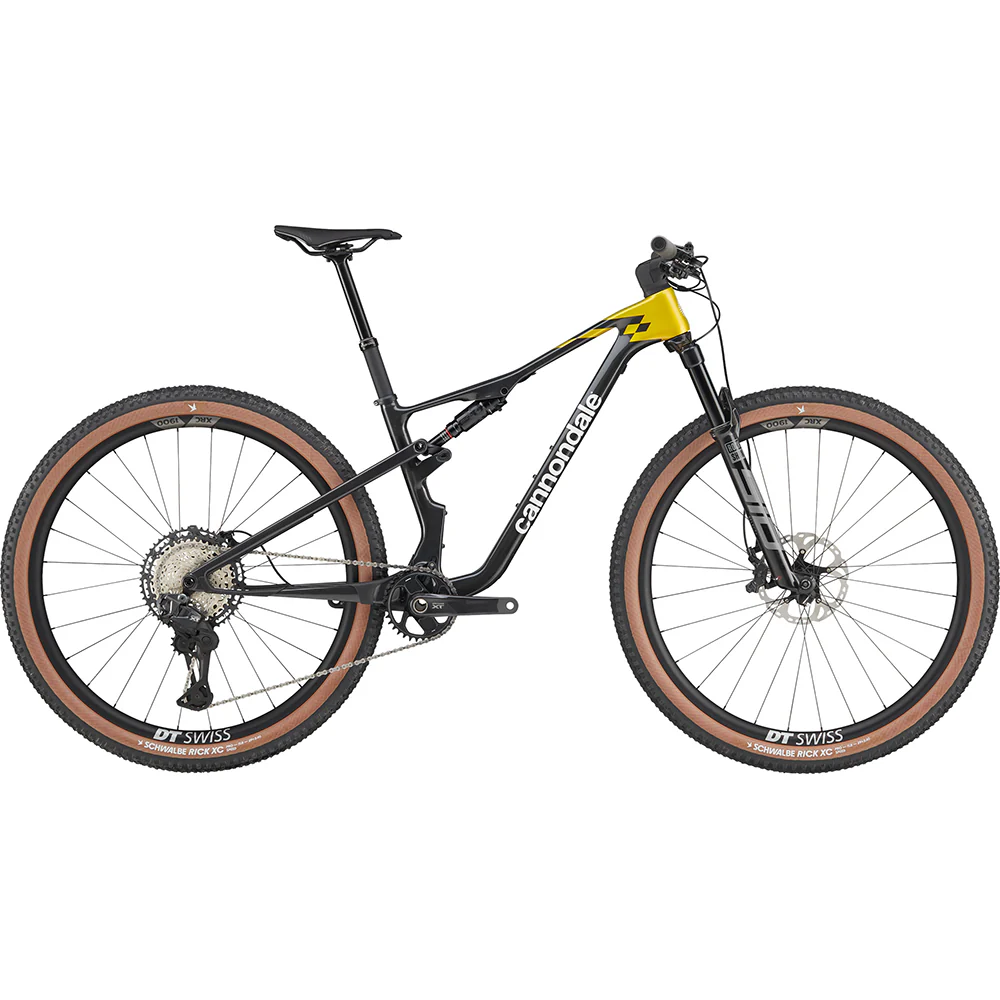

Cannondale Scalpel 2 XT Di2

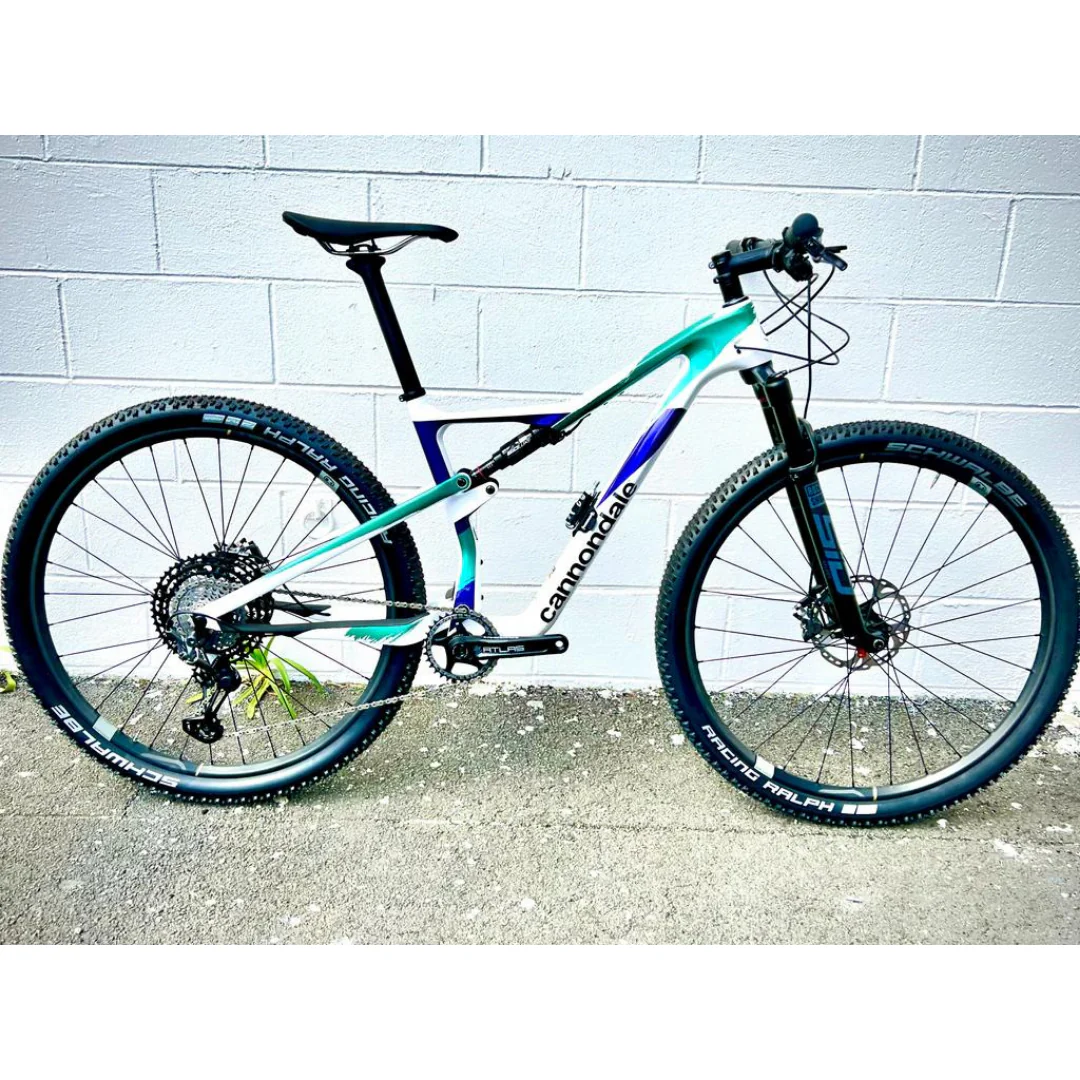

Cannondale Scalpel Hi-Mod IRD Custom Build - Medium

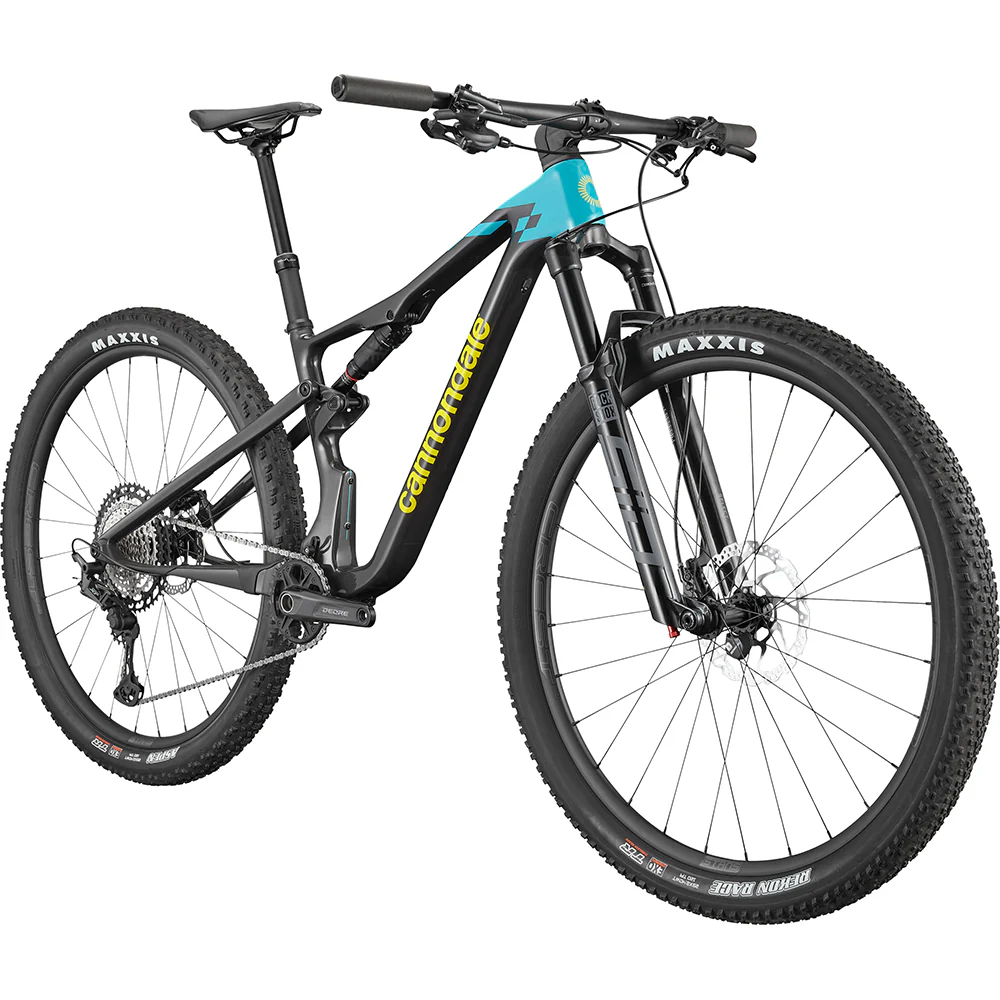

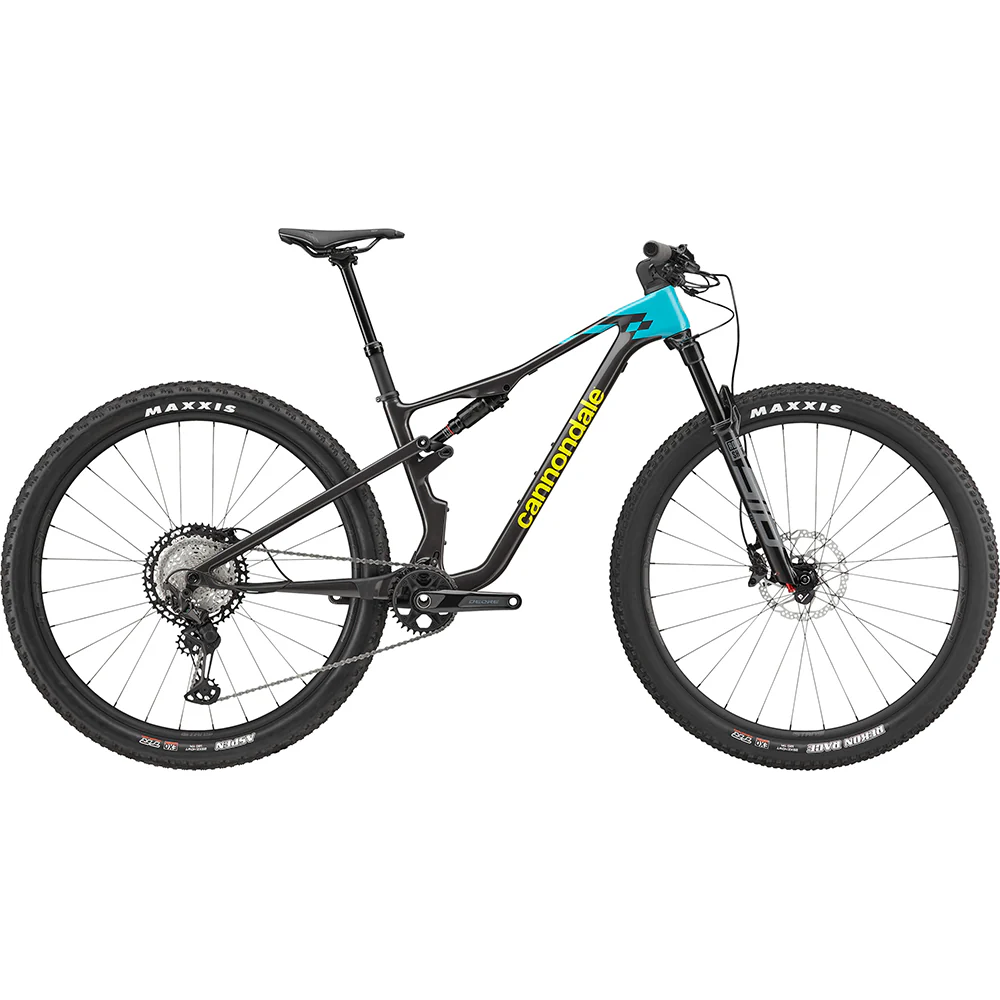

Cannondale Scalpel 3

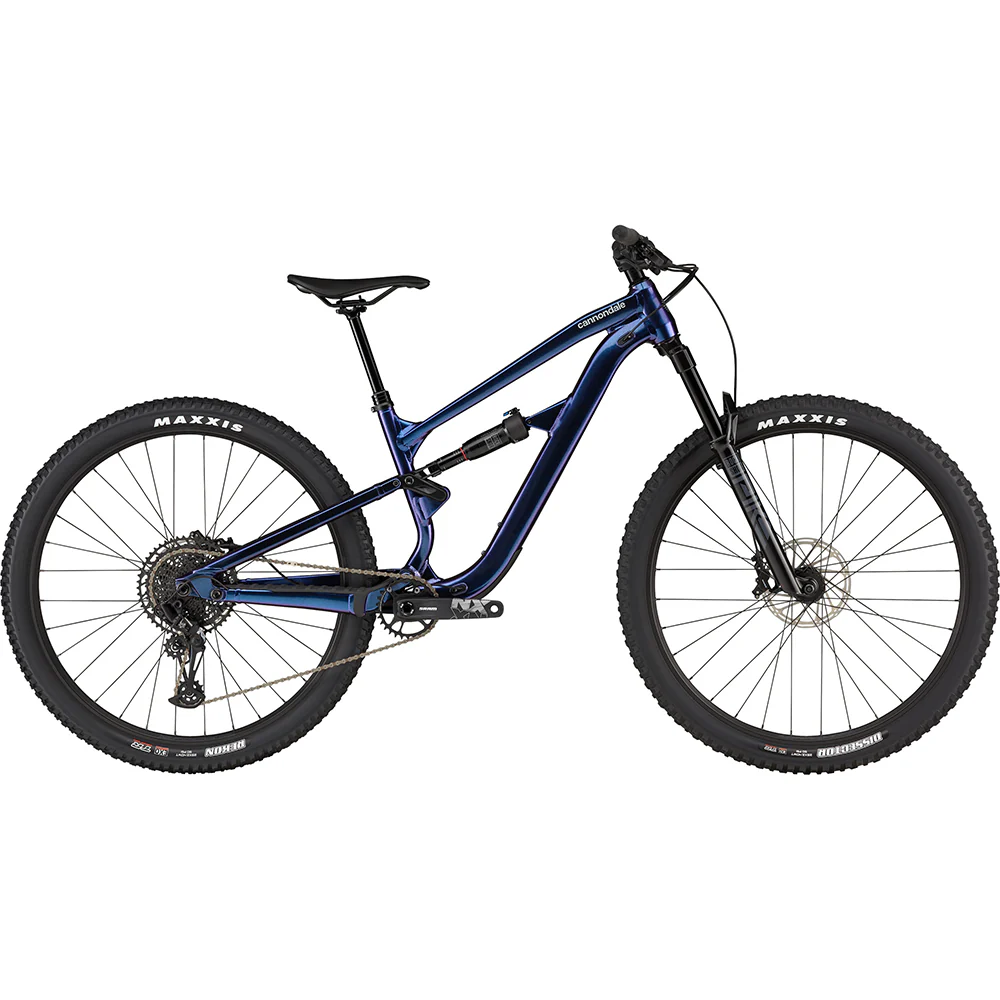

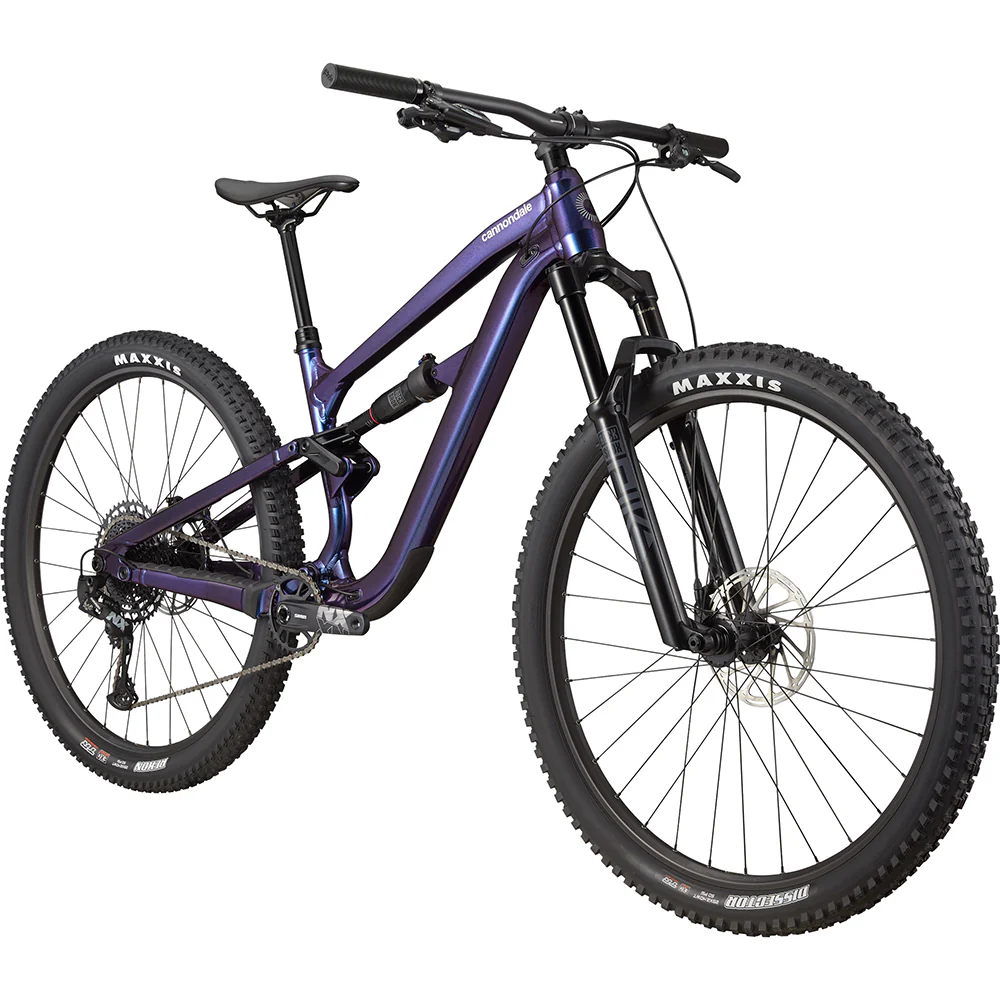

Cannondale Habit Alloy 3

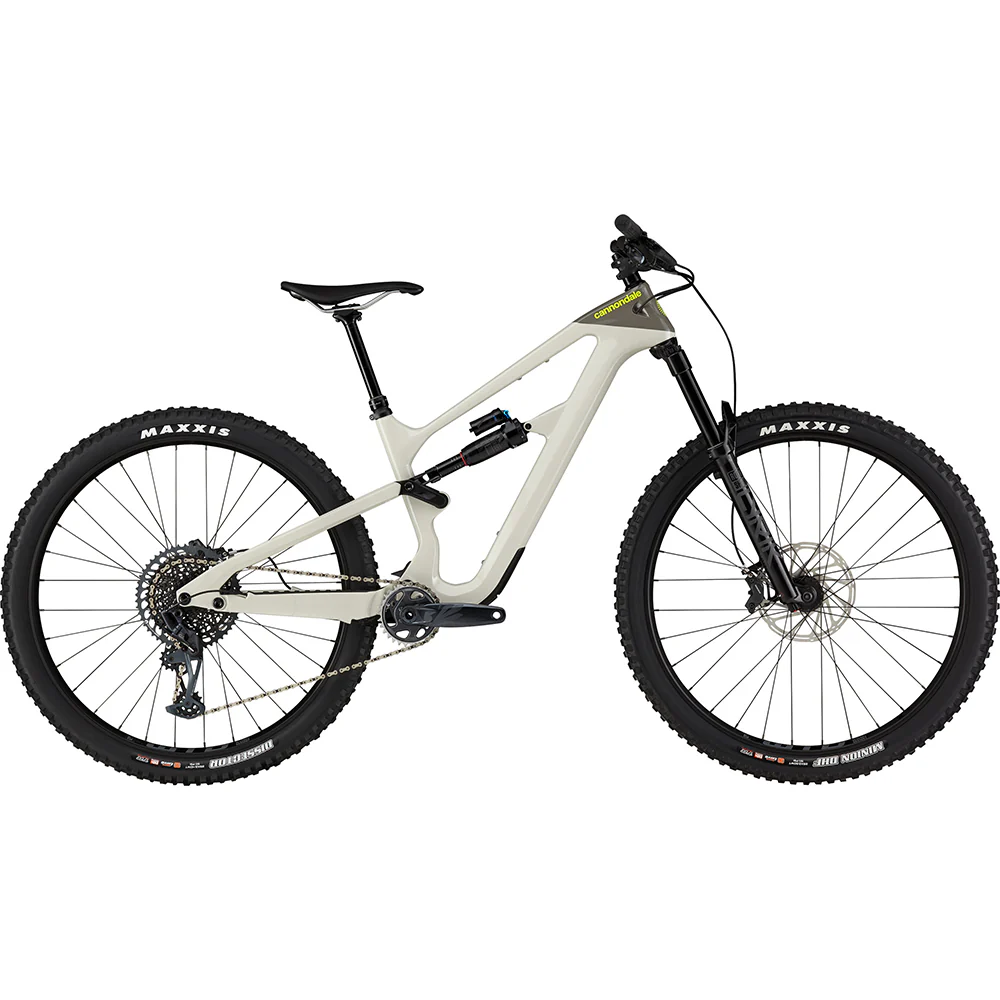

Cannondale Habit Carbon LT 1

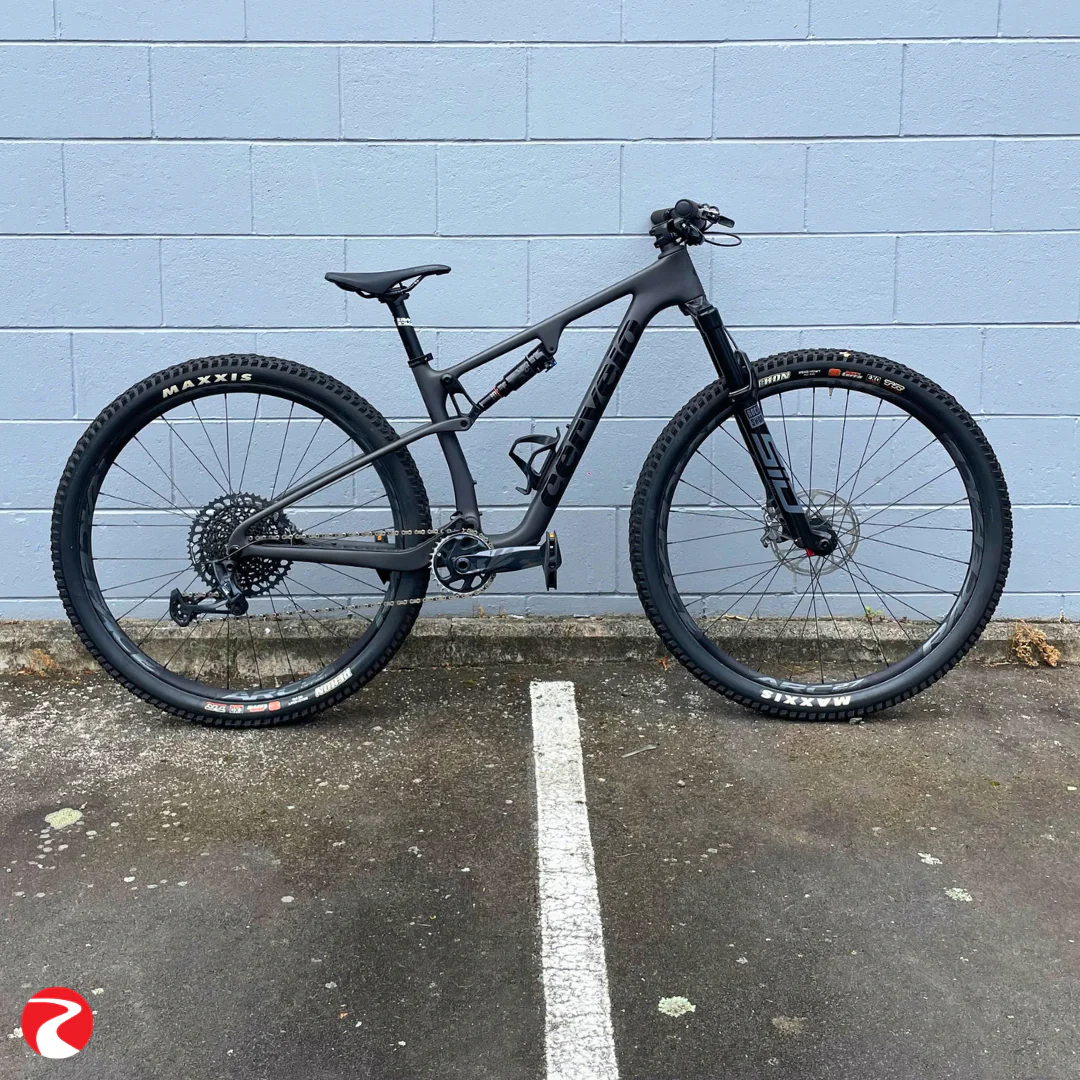

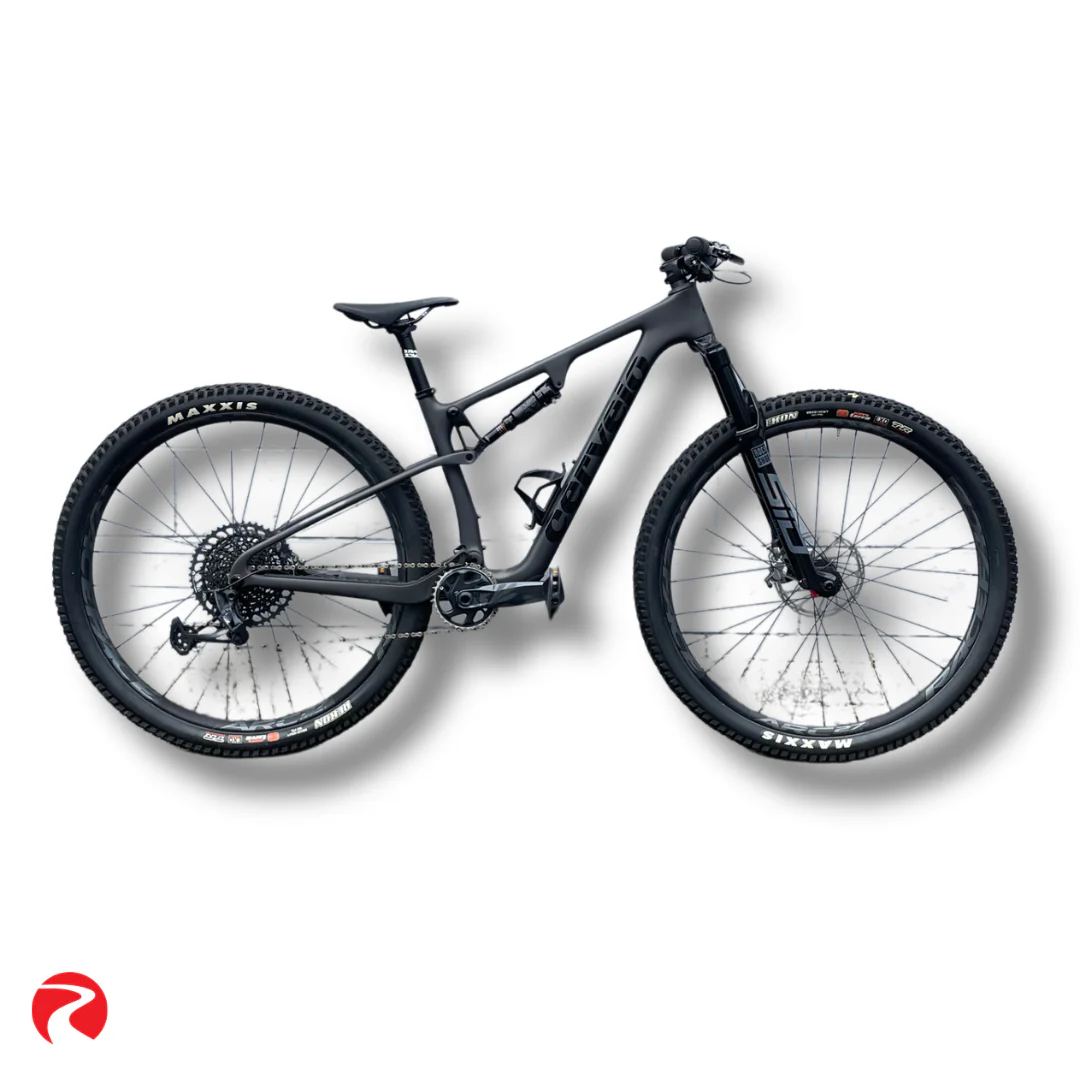

Cervelo ZFS-5 120 (DEMO BIKE)
